Exhaust Tail Pipe Flow Valve Control Module Replacement

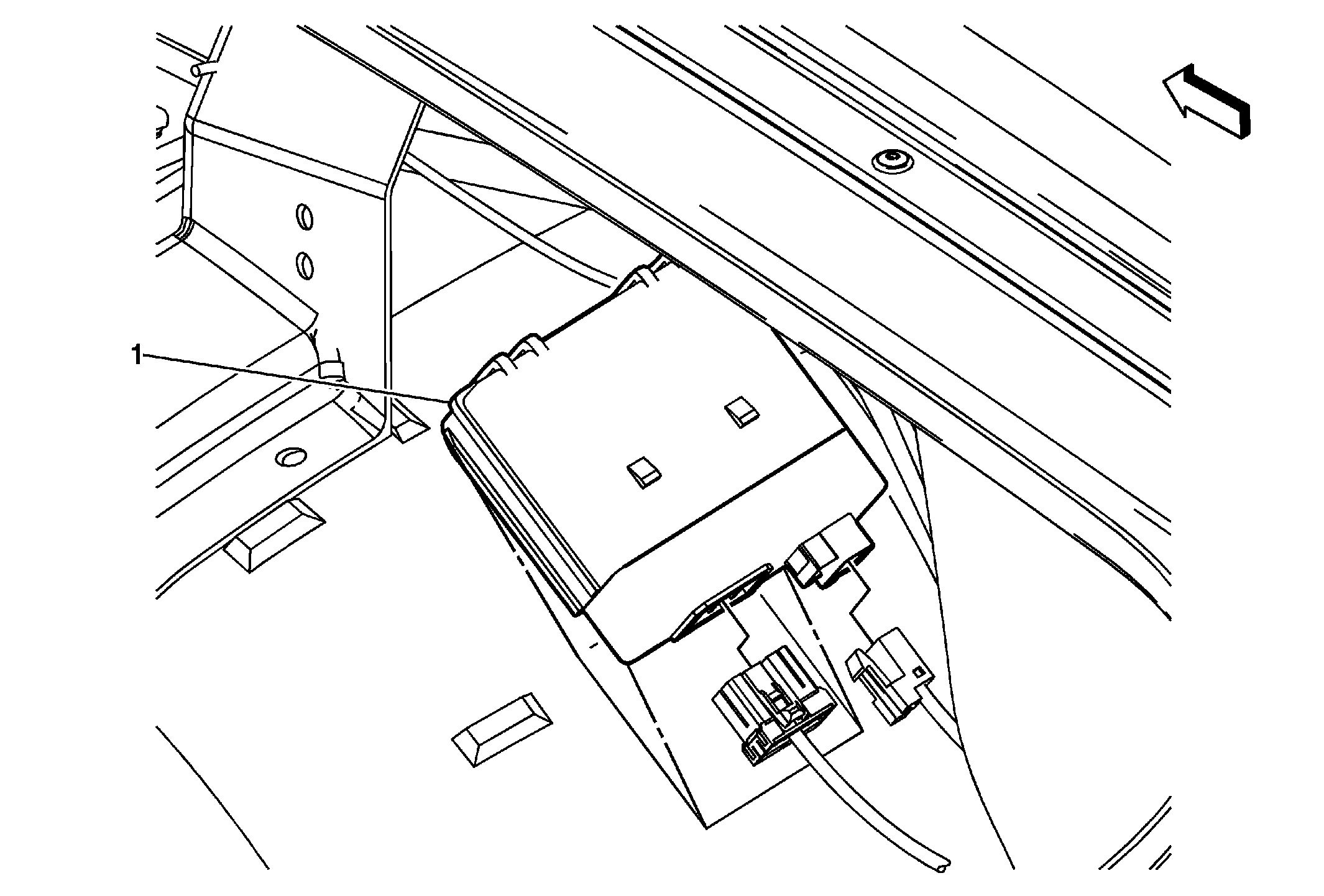

Fig 1: Identifying Exhaust Tail Pipe Flow Valve Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the carpet from the right wheel opening.
1	Exhaust Tail Pipe Flow Valve Control Module Procedure Disconnect the module harness connector. Remove the exhaust tail pipe flow valve control module.

Callout

Component Name

Preliminary Procedure
Remove the carpet from the right wheel opening.

Exhaust Tail Pipe Flow Valve Control Module

Procedure

Disconnect the module harness connector.
Remove the exhaust tail pipe flow valve control module.
