Wheelhouse Extension Replacement

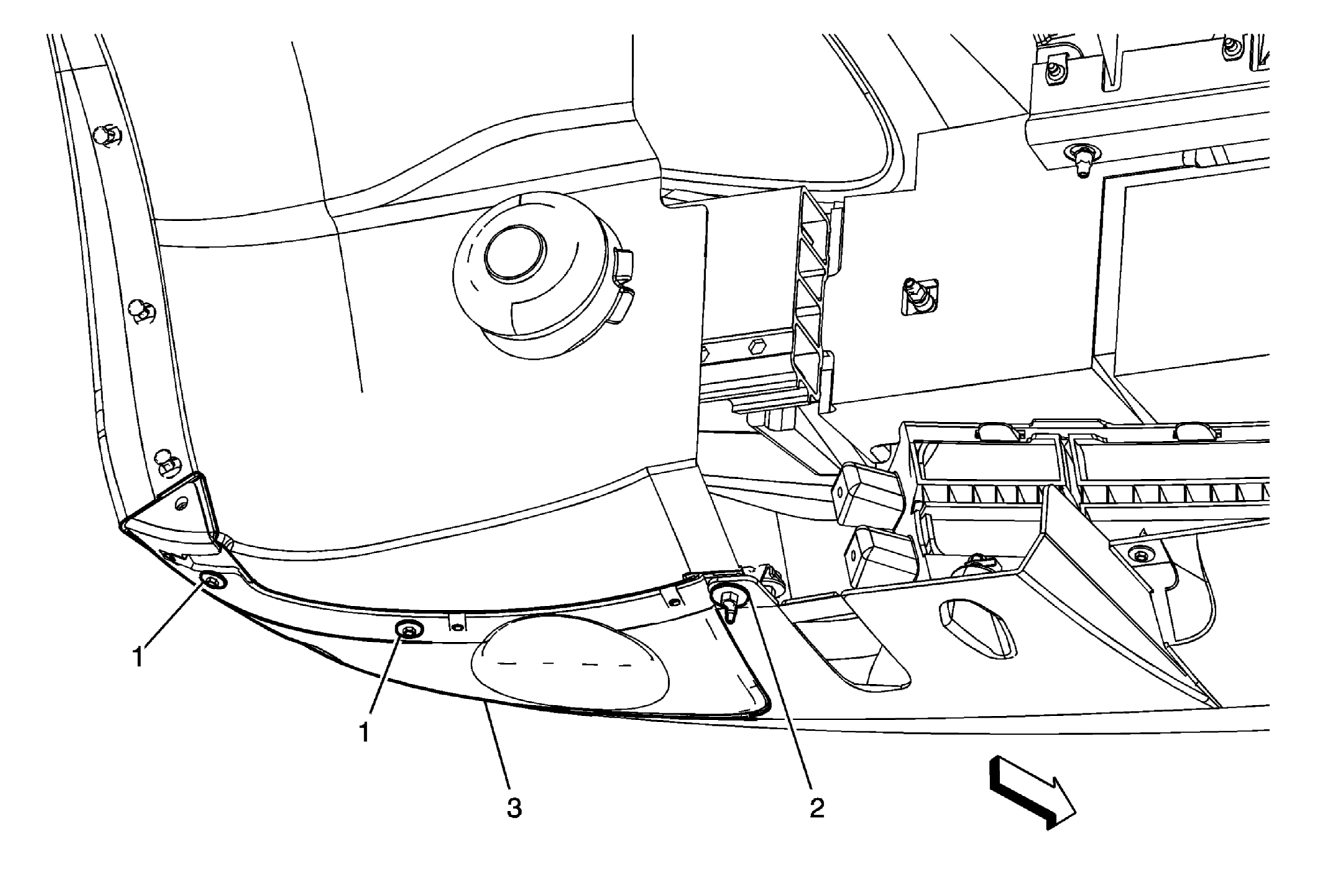

Fig 1: View Of Wheelhouse Extension Panel, Front Fascia Lower Nut & Panel Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the overlapping plastic retainer from the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Rear Liner) , Front Wheelhouse Liner Replacement (Front Liner) . Remove the appropriate lower valence panel piece. Refer to Front Bumper Valance Panel Replacement (ZR1) , Front Bumper Valance Panel Replacement (Z06) , Front Bumper Valance Panel Replacement (Outer) .
1	Wheelhouse Extension Panel Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Fascia Lower Nut (Qty: 1) Tighten 7 N.m (62 lb in)
3	Wheelhouse Extension Panel
