Top of Engine Components

Powertrain Component Views

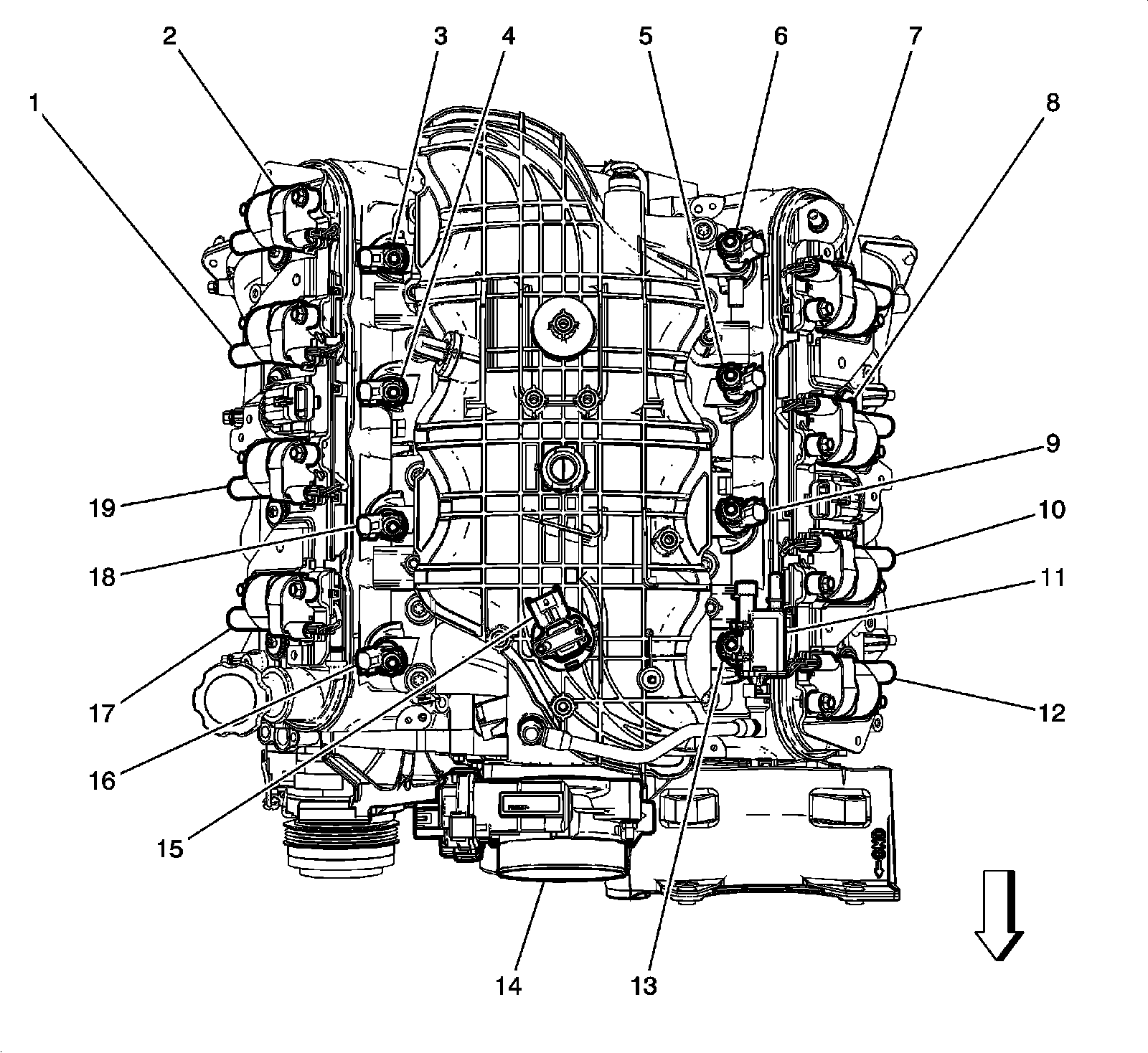

Top of Engine Components (LH9)




1 - Ignition Coil 6
2 - Ignition Coil 8
3 - Fuel Injector 8
4 - Fuel Injector 6
5 - Fuel Injector 5
6 - Fuel Injector 7
7 - Ignition Coil 7
8 - Ignition Coil 5
9 - Fuel Injector 3
10 - Ignition Coil 3
11 - Evaporative Emission (EVAP) Purge Solenoid Valve
12 - Ignition Coil 1
13 - Fuel Injector 1
14 - Throttle Body
15 - Manifold Absolute Pressure (MAP) Sensor
16 - Fuel Injector 2
17 - Ignition Coil 2
18 - Fuel Injector 4
19 - Ignition Coil 4
