Right Side of Engine Components

Powertrain Component Views

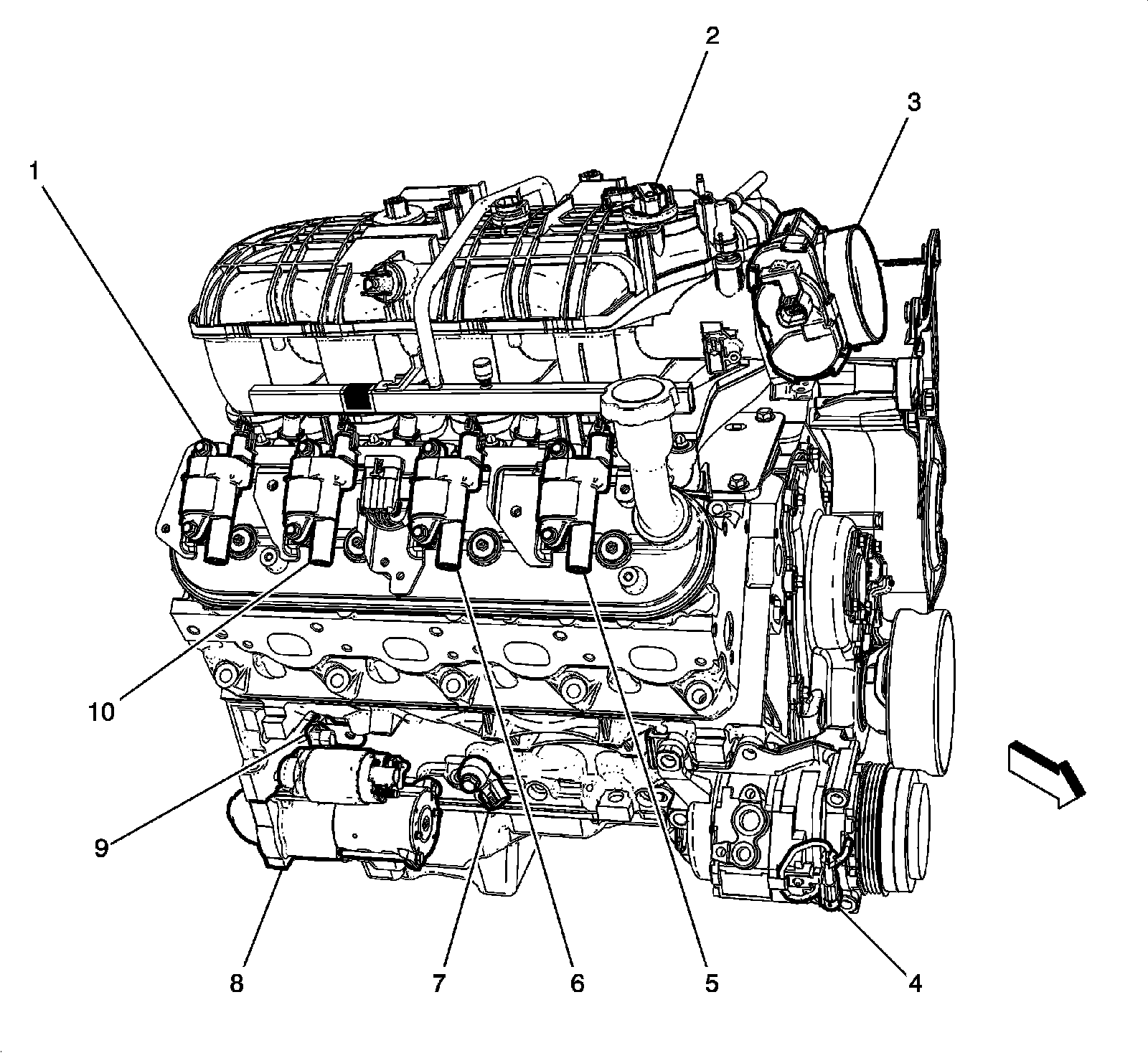

Right Side of Engine Components (LH9)

1 - Ignition Coil 8
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Throttle Body
4 - A/C Compressor Clutch
5 - Ignition Coil 2
6 - Ignition Coil 4
7 - Knock Sensor (KS) 2
8 - Starter Motor
9 - Crankshaft Position (CKP) Sensor
10 - Ignition Coil 6
