Window Switch - Right Rear




Door Component Views

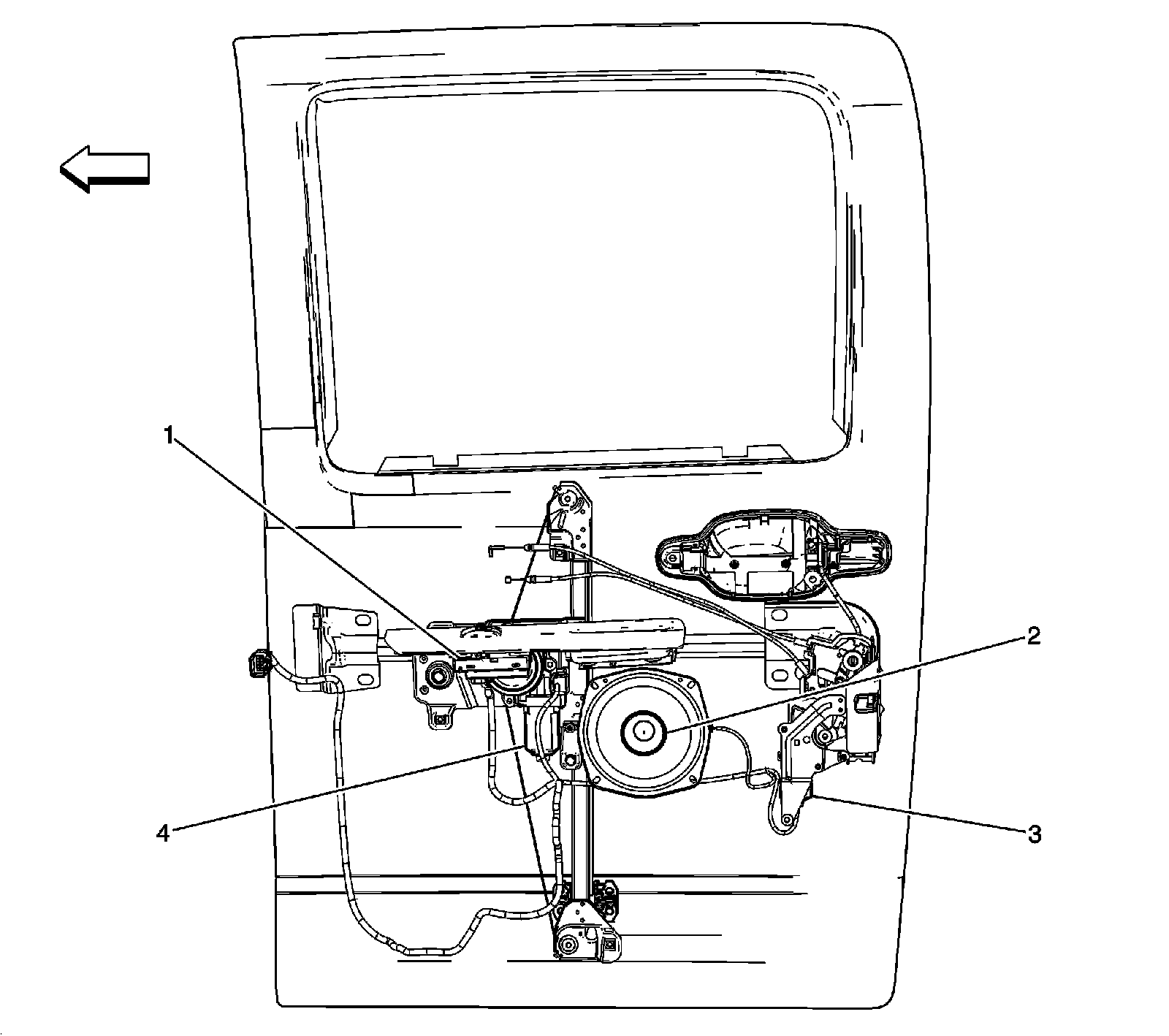

Right Rear Door Components (Crew Cab)




1 - Window Switch - Right Rear
2 - Speaker - Right Rear Door
3 - Door Lock Actuator - Right Rear
4 - Window Motor - Right Rear
