Front of Engine Compartment Components (LGH)

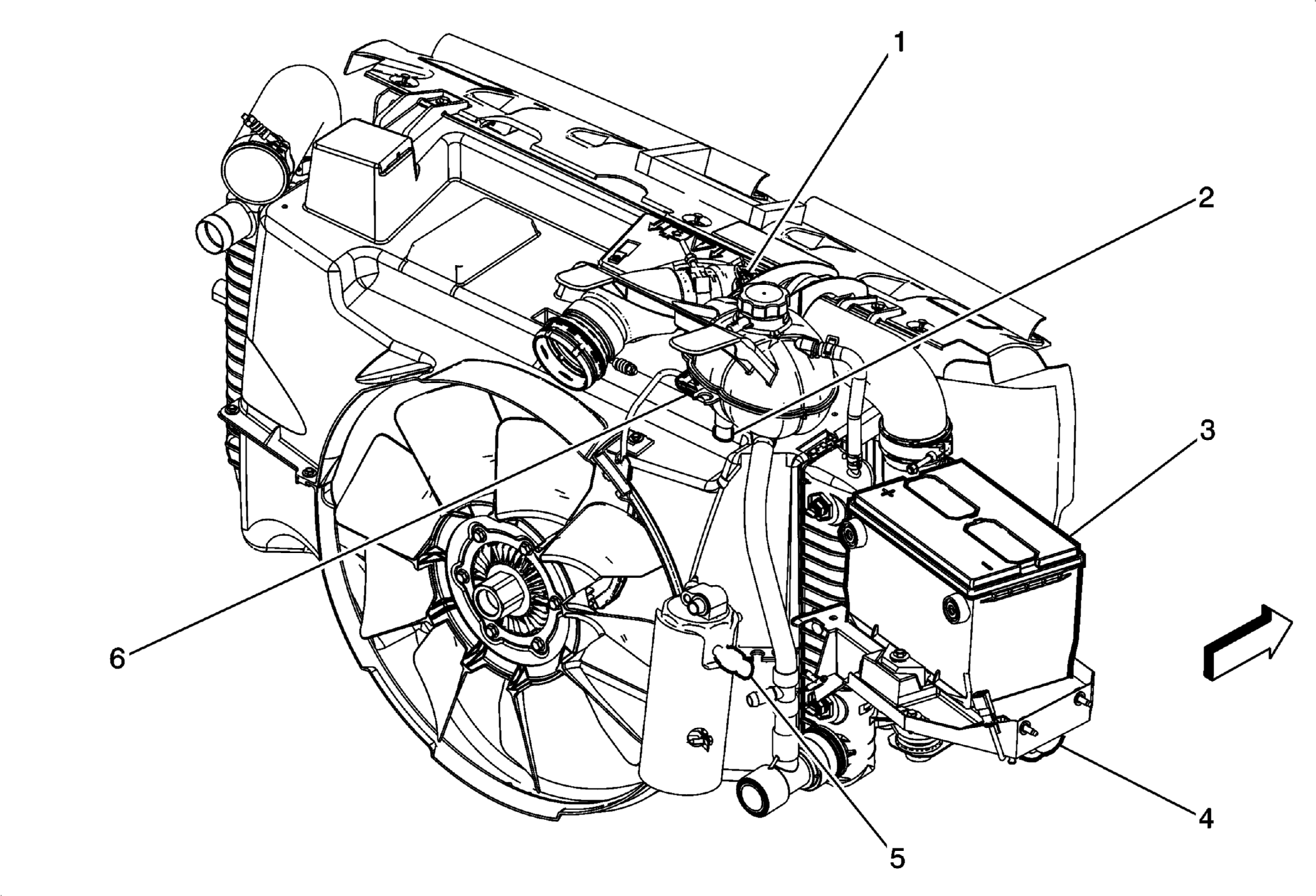

Fig 1: Front Of Engine Compartment (LGH)
GM2406203Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Charge Air Cooler Outlet Temperature Sensor
2 Engine Coolant Level Switch
3 Battery
4 Vacuum Pump
5 A/C Low Pressure Switch (C60)
6 X142
