Steering Gear Replacement

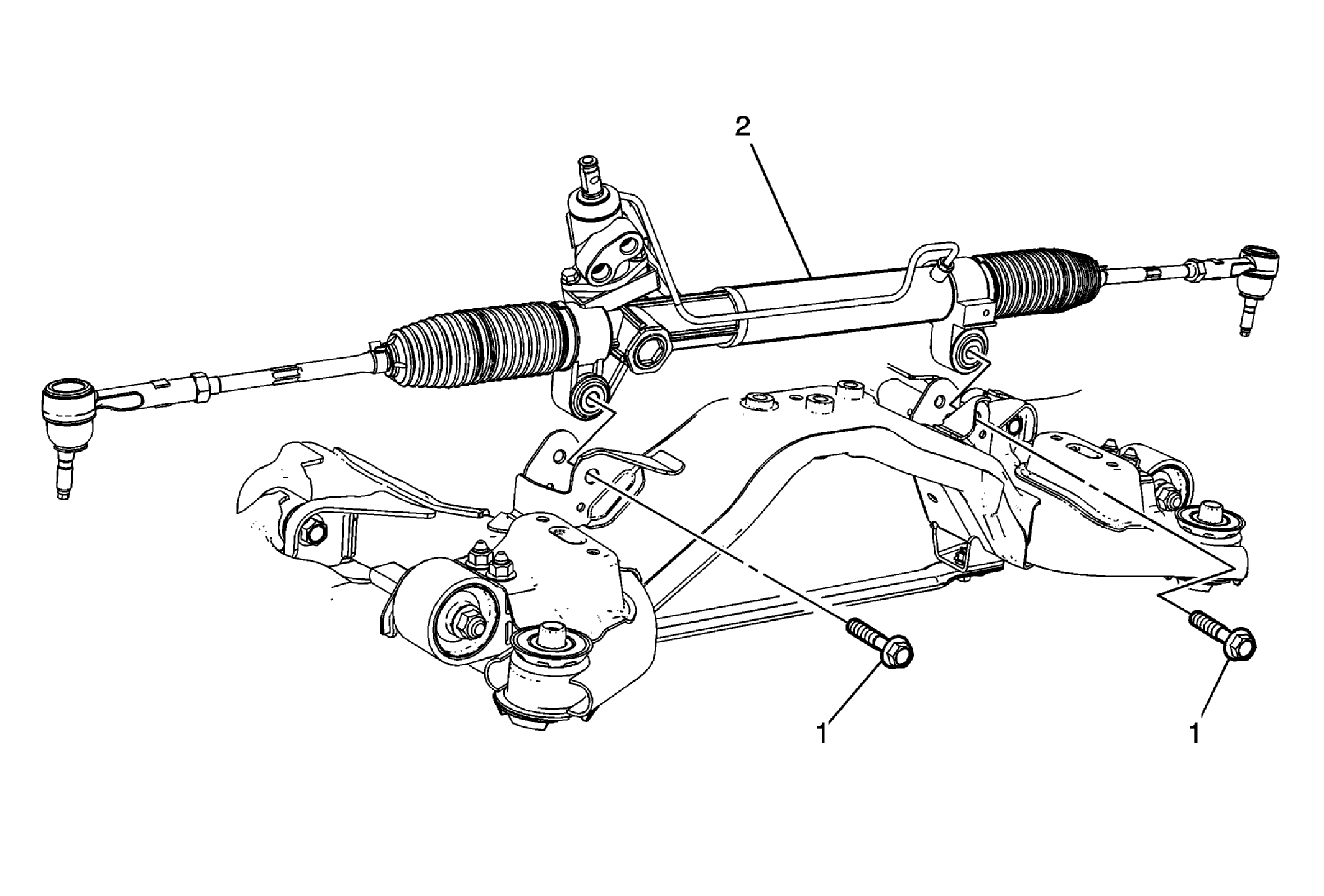

Fig 1: Steering Gear (Hydraulic Power Steering)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: The steering column The intermediate shaft(s) The steering gear After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil. Preliminary Procedure With the front wheels in the straight ahead position, turn the ignition switch to the OFF position and remove the key from the ignition lock cylinder. Rotate the steering wheel in order to lock the steering column. Place drain pans under the vehicle. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove as much power steering fluid from the power steering fluid reservoir as possible. Disconnect the 2 outer tie rods from the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement . Disconnect the power steering gear inlet pipe from the steering gear. Refer to Power Steering Gear Inlet Pipe/Hose Replacement . Disconnect the power steering fluid cooler from the steering gear. Refer to Power Steering Fluid Cooler Replacement (2.4L) , Power Steering Fluid Cooler Replacement (3.0L) . Disconnect the steering shaft coupling from the steering gear. Refer to Steering Shaft Coupling Replacement (NVH) . Position a jack stand under the rear of the drivetrain and front suspension frame. Partially lower the rear of the drivetrain and front suspension frame in order to gain clearance for the steering gear. Refer to Drivetrain and Front Suspension Frame Reinforcement Replacement .
1	Steering Gear Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Install NEW steering gear bolts. Tighten 110 N.m (81 lb ft)
2	Steering Gear Procedure Carefully remove the steering gear through the left front wheel opening. After the installation is complete, fill and bleed the power steering system. Refer to Power Steering System Bleeding . Remove the drain pans. Clean any excess power steering fluid from the vehicle. Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .

Callout

Component Name

CAUTION:

With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:

The steering column
The intermediate shaft(s)
The steering gear

After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.

Preliminary Procedure

With the front wheels in the straight ahead position, turn the ignition switch to the OFF position and remove the key from the ignition lock cylinder.
Rotate the steering wheel in order to lock the steering column.
Place drain pans under the vehicle.
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove as much power steering fluid from the power steering fluid reservoir as possible.
Disconnect the 2 outer tie rods from the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement .
Disconnect the power steering gear inlet pipe from the steering gear. Refer to Power Steering Gear Inlet Pipe/Hose Replacement .
Disconnect the power steering fluid cooler from the steering gear. Refer to Power Steering Fluid Cooler Replacement (2.4L) , Power Steering Fluid Cooler Replacement (3.0L) .
Disconnect the steering shaft coupling from the steering gear. Refer to Steering Shaft Coupling Replacement (NVH) .
Position a jack stand under the rear of the drivetrain and front suspension frame. Partially lower the rear of the drivetrain and front suspension frame in order to gain clearance for the steering gear. Refer to Drivetrain and Front Suspension Frame Reinforcement Replacement .

Steering Gear Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure
Install NEW steering gear bolts.
Tighten
110 N.m (81 lb ft)

Steering Gear

Procedure

Carefully remove the steering gear through the left front wheel opening.
After the installation is complete, fill and bleed the power steering system. Refer to Power Steering System Bleeding .
Remove the drain pans.
Clean any excess power steering fluid from the vehicle.
Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
