Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

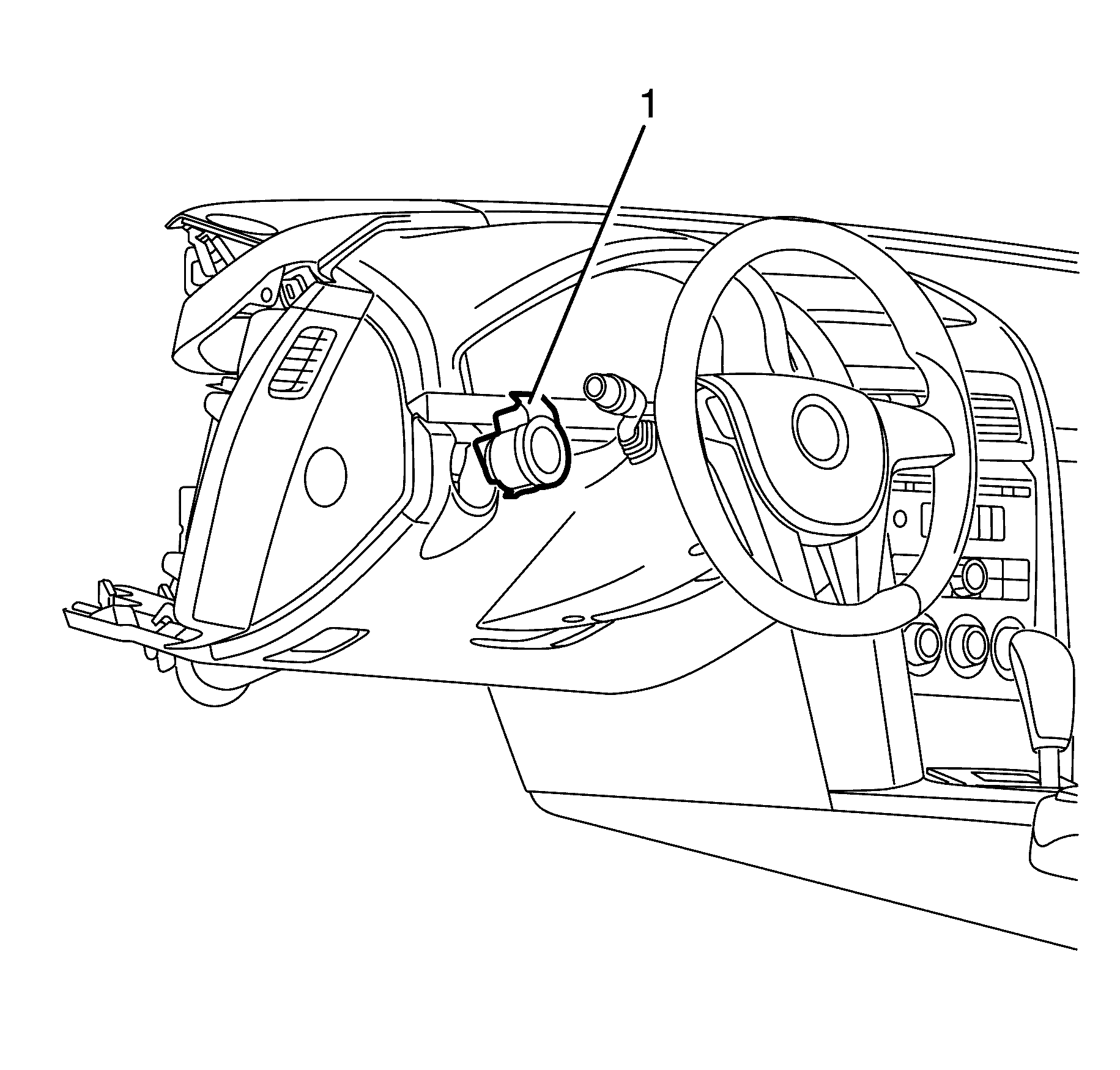

    Fig 1: Knee Bolster
    GM1947005Courtesy of GENERAL MOTORS CORP.
  1. Connect the headlamp switch electrical connector.
  2. Install the headlamp switch (1) to the I/P trim pad.
  3. Install the knee bolster. Refer to Knee Bolster Replacement
  4. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
  5. Check all vehicle lights for correct operation.
