Caprice 6.0 2
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
Accessory Wakeup Serial Data Wiring Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Accessory Wakeup Serial Data Wiring Schematics

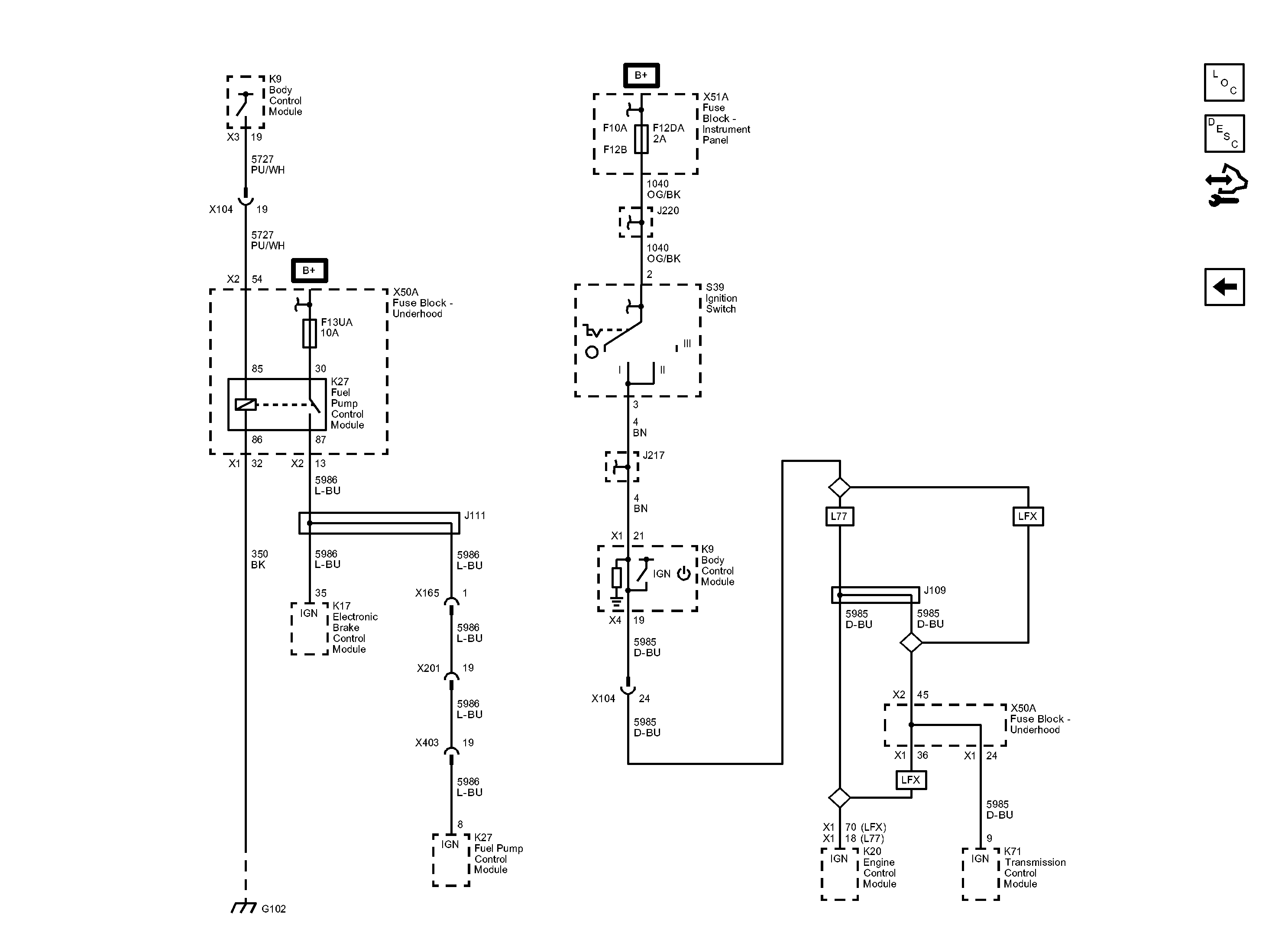

Fig 1: Accessory Wakeup Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
