Shift Linkage: Service and Repair

Shift Control Linkage Replacement

Removal Procedure

1. Position the shift lever in PARK.

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

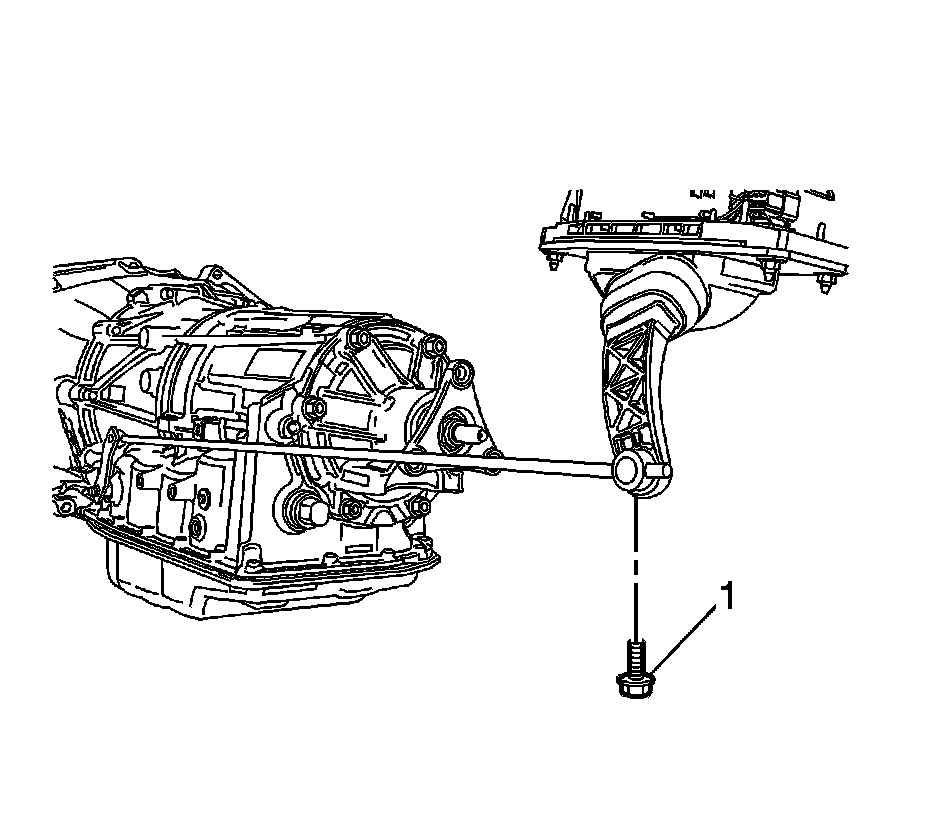

3. Remove the bolt (1) from the shift control linkage rod.

4. Disconnect the shift control linkage rod from the shift control assembly.

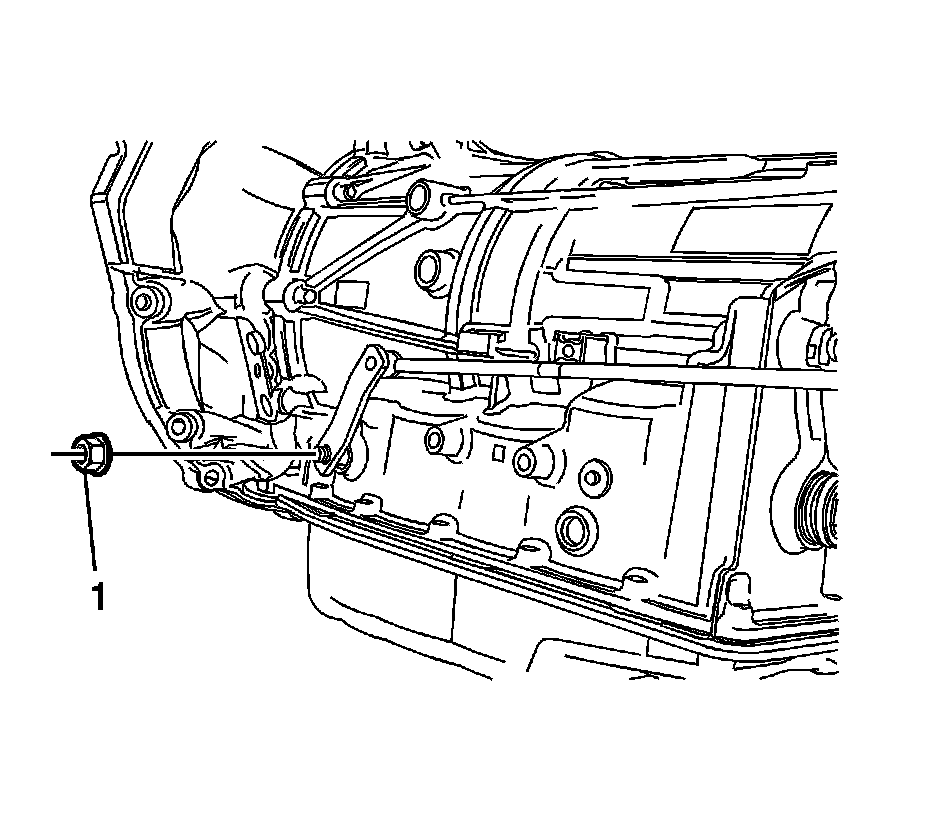

5. Remove the manual shift shaft nut (1).

6. Remove the shift control linkage from the vehicle.

Installation Procedure





1. Install the shift control linkage to the vehicle.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the manual shift shaft nut (1) and tighten to 15 Nm (11 lb ft).





3. Connect the shift control linkage rod to the shift control assembly.

4. Install the bolt (1) to the shift control linkage rod and tighten to 9 Nm (80 lb in).

5. Adjust the shift control linkage.

6. Lower the vehicle.
