Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Steering Wheel
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Steering Wheel

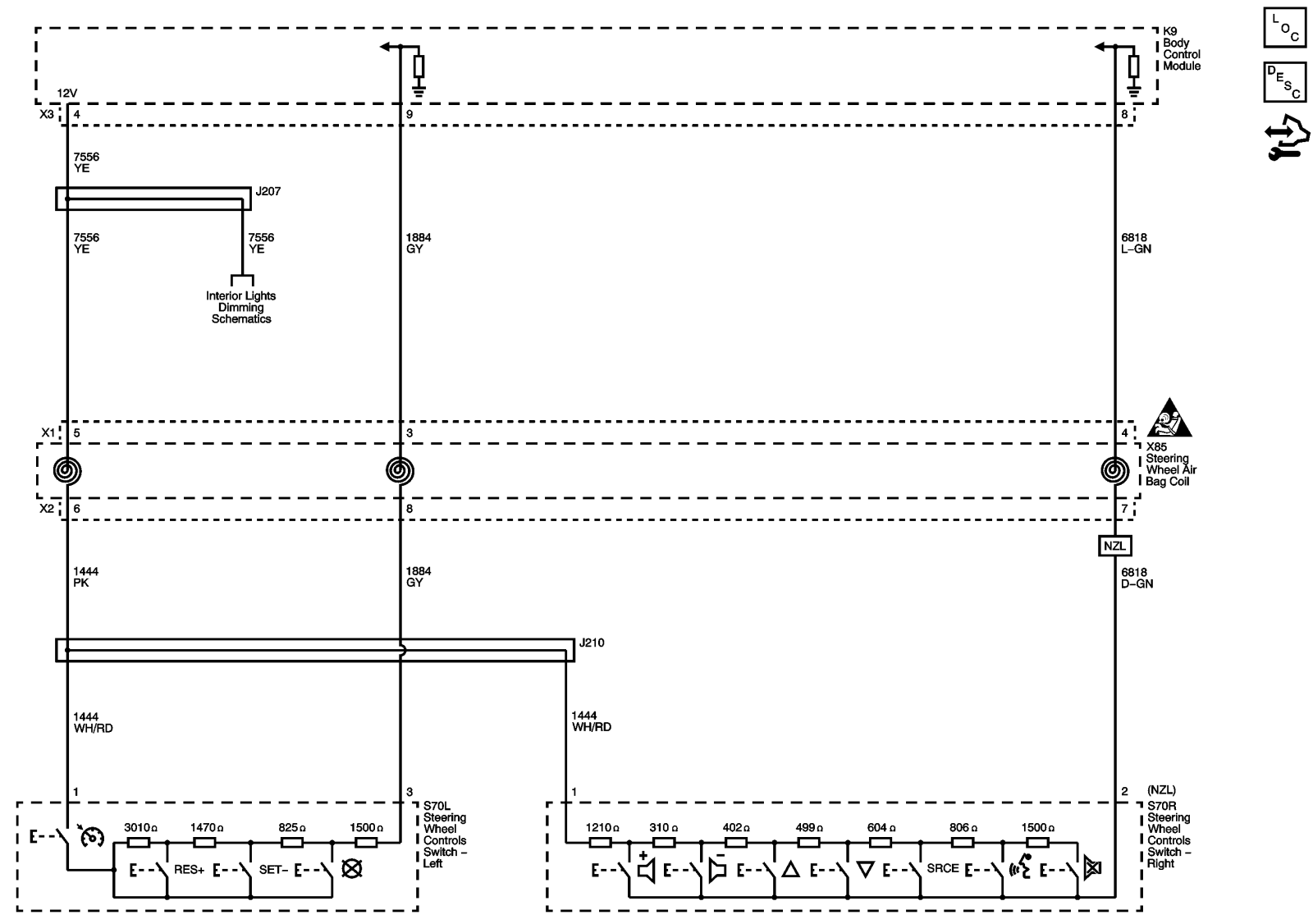

Fig 1: Steering Wheel Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
