Radio Antenna Base Replacement (Convertible)

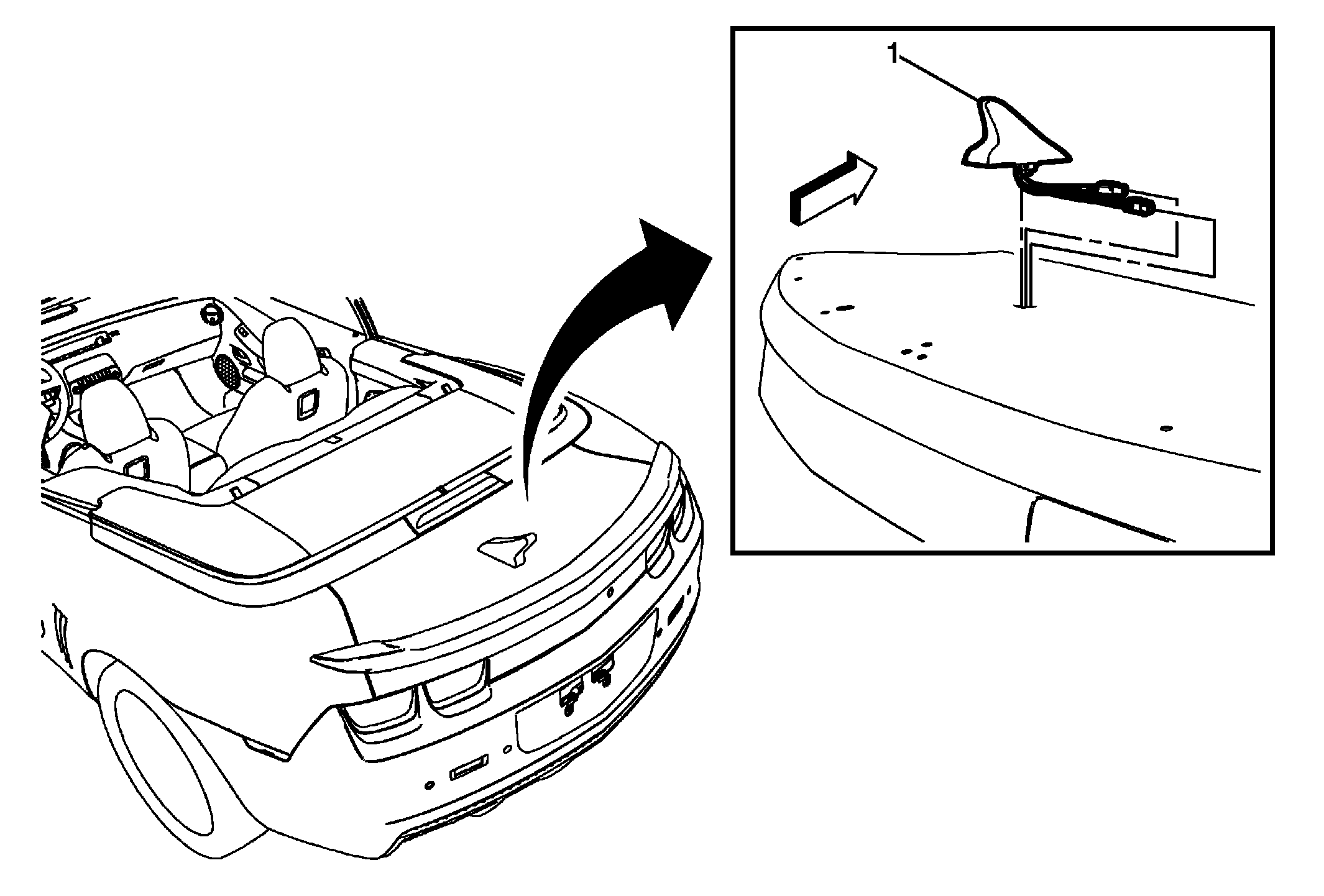

Fig 1: Radio Antenna Base (Convertible)

GM2526006

Courtesy of GENERAL MOTORS COMPANY

Radio Antenna Base Replacement (Convertible)

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid finish panel. Refer to Rear Compartment Lid Carpet Replacement (Coupe) , Rear Compartment Lid Carpet Replacement (Convertible) .

1

Radio Antenna Base

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the integral bolt and retainer.
Disconnect the electrical connections.
Disconnect the antenna cables.
Feed the wiring and cable up through the hole in the rear compartment lid panel.

Tighten
9 N.m (80 lb in)
