Installation Procedure
- If you are installing a new ignition lock cylinder, code the lock cylinder. Refer to Lock Cylinder Coding - Ignition .

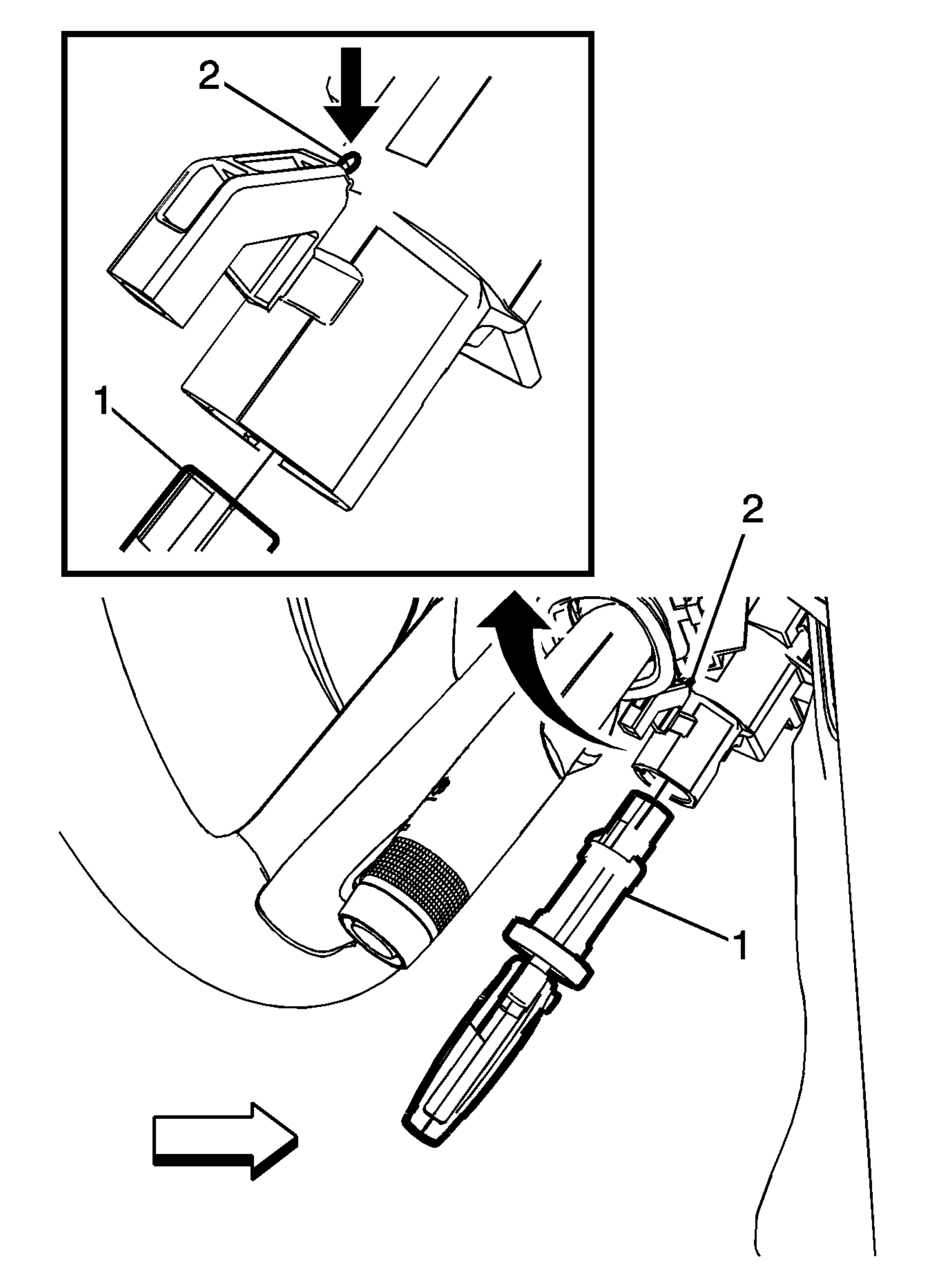

- Turn the key to the RUN position and insert ignition lock cylinder (1) into the ignition and start switch housing.
- Turn the key to the LOCK position and remove the key from the ignition lock cylinder.
- Install the steering column shroud. Refer to Steering Column Shroud Replacement .
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
