Rear Compartment Lid Latch Replacement

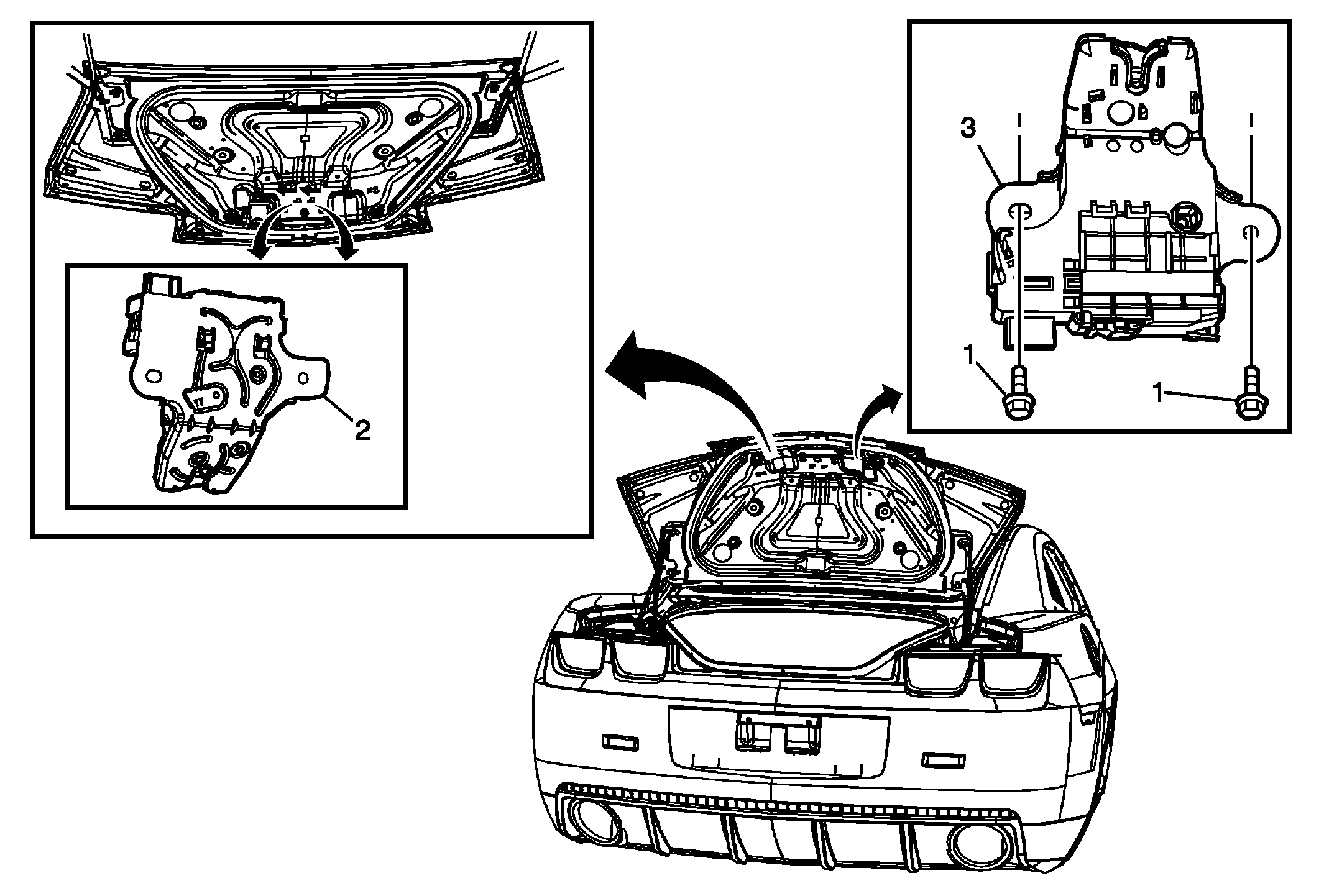

Fig 1: Rear Compartment Lid Latch, Locator Tabs And Bolts
GM2158943Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Latch Replacement

Callout Component Name
Preliminary Procedure
Disconnect the inside handle from the compartment lid. Refer to Rear Compartment Lid Inside Handle Replacement .
1 Rear Compartment Lid Latch Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Rear Compartment Lid Latch Locator Tab/Retainer
Procedure
Slide the latch to release from the tab/retainers.
3 Rear Compartment Lid Latch
