Object Detection Wiring Schematics: UVC

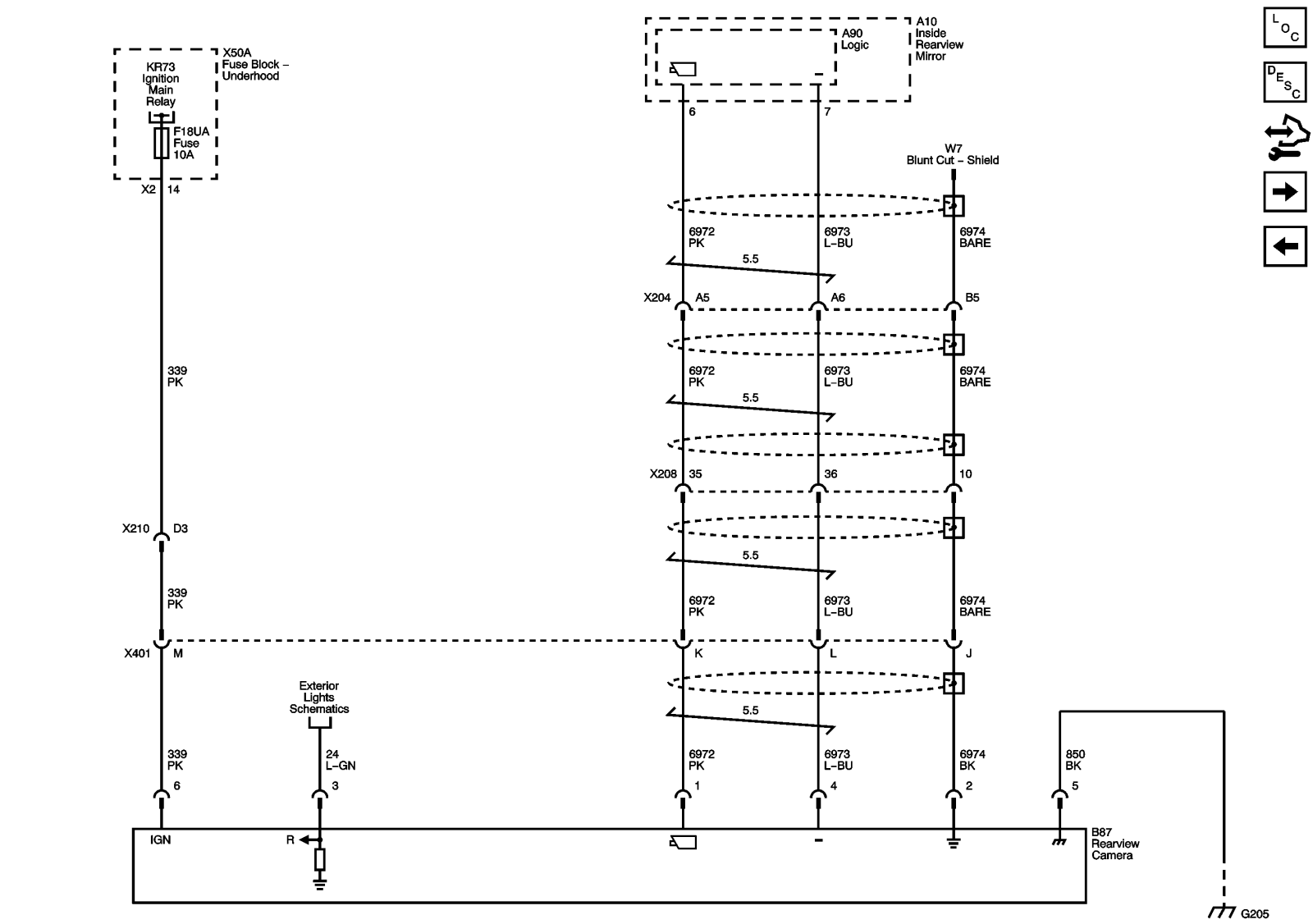

Fig 1: UVC Wiring Schematic

GM2714202

Courtesy of GENERAL MOTORS COMPANY
