High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

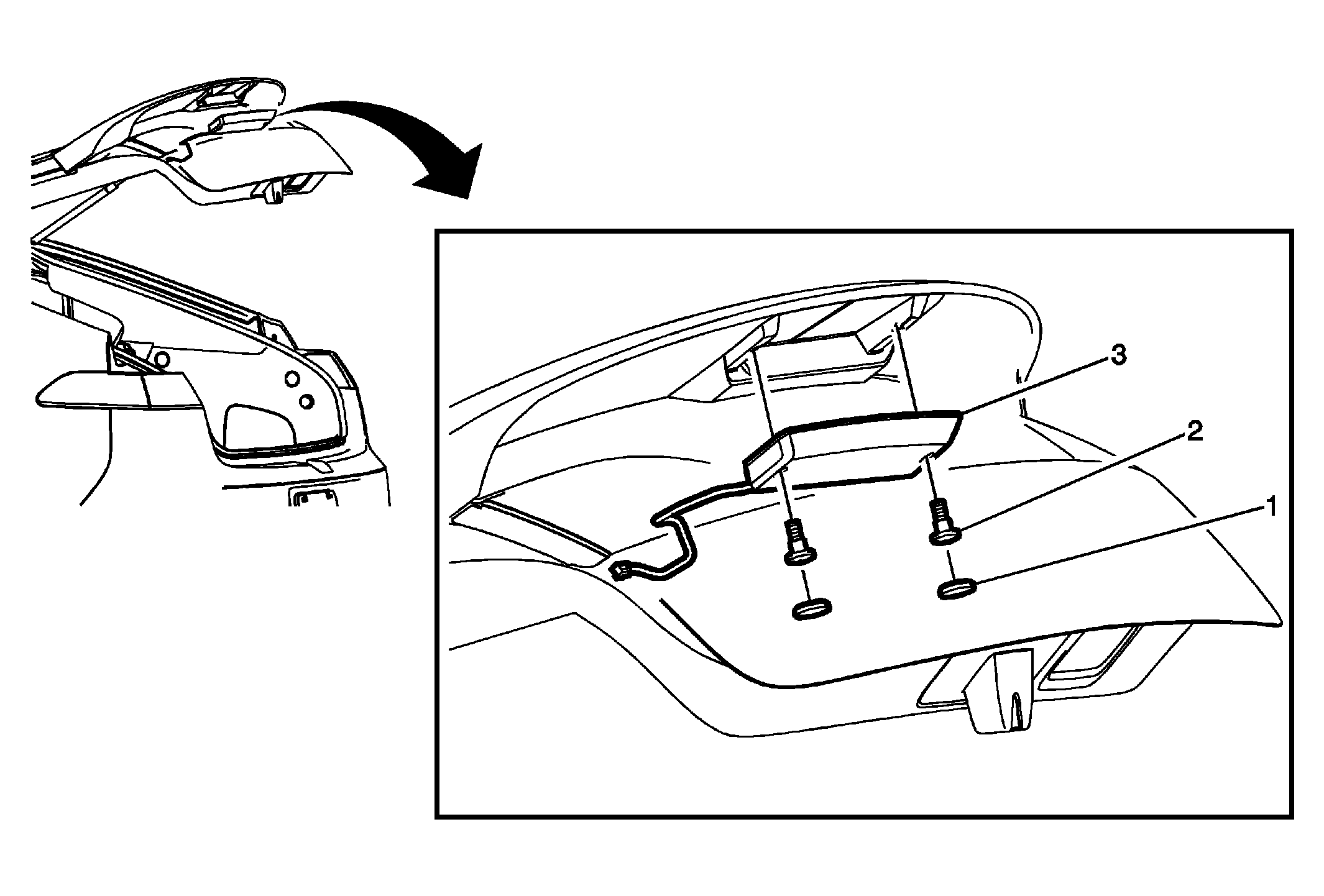

Fig 1: High Mount Stop Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the liftgate assembly. Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement . Disconnect the high mount stop lamp electrical connector from the main liftgate harness.
1	High Mount Stop Lamp Access Hole Cover (Qty: 2)
2	High Mount Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	High Mount Stop Lamp Procedure Remove the high mount stop lamp and harness connector from the rear end spoiler.
