Front Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

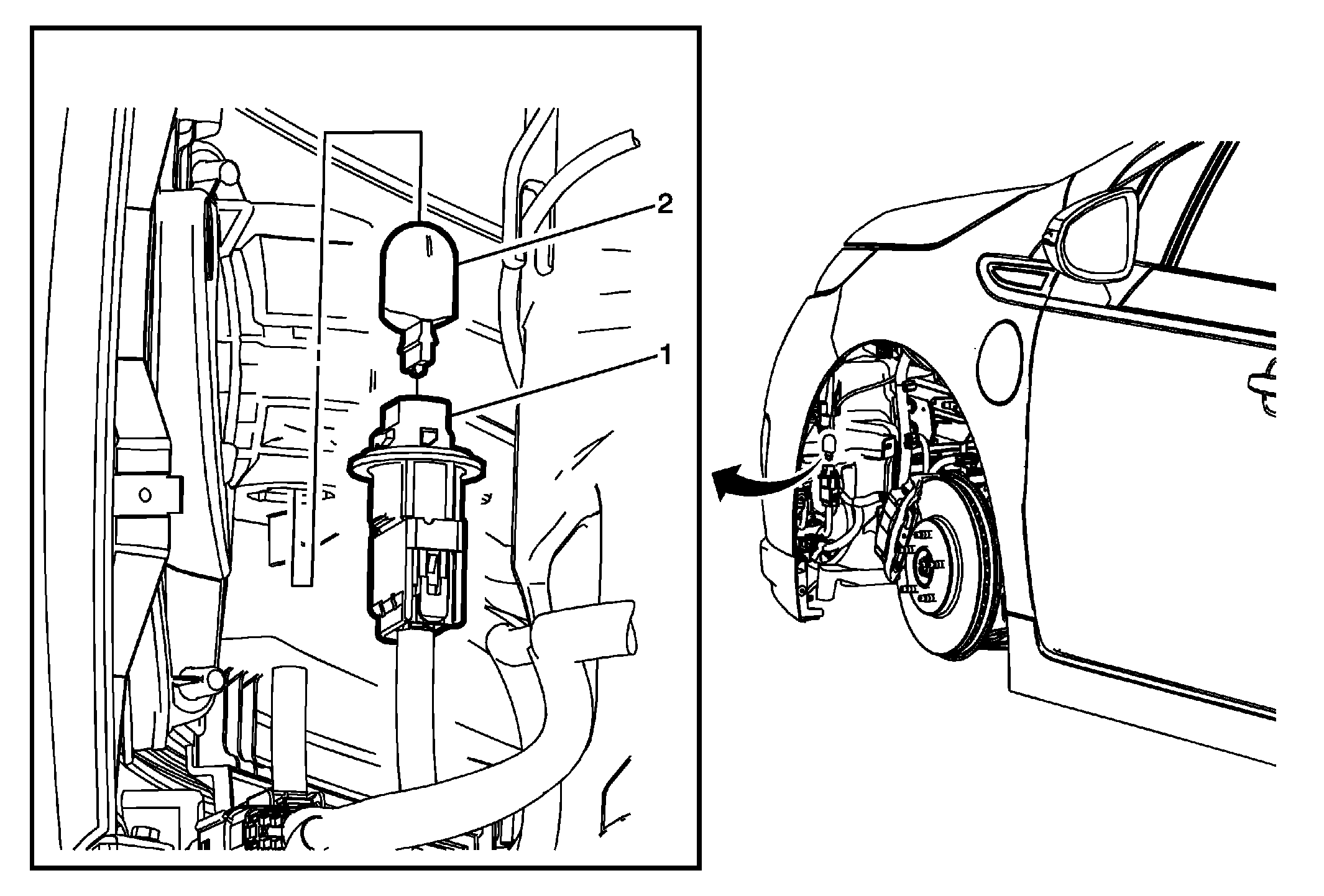

Fig 1: Front Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
1	Front Turn Signal Bulb Socket Procedure Rotate the bulb socket a quarter tun counter-clockwise and remove the front turn signal lamp assembly.
2	Front Turn Signal Bulb Procedure Pull the turn signal lamp bulb from the front turn signal lamp bulb socket.
