Plug-In Charging Wiring Schematics

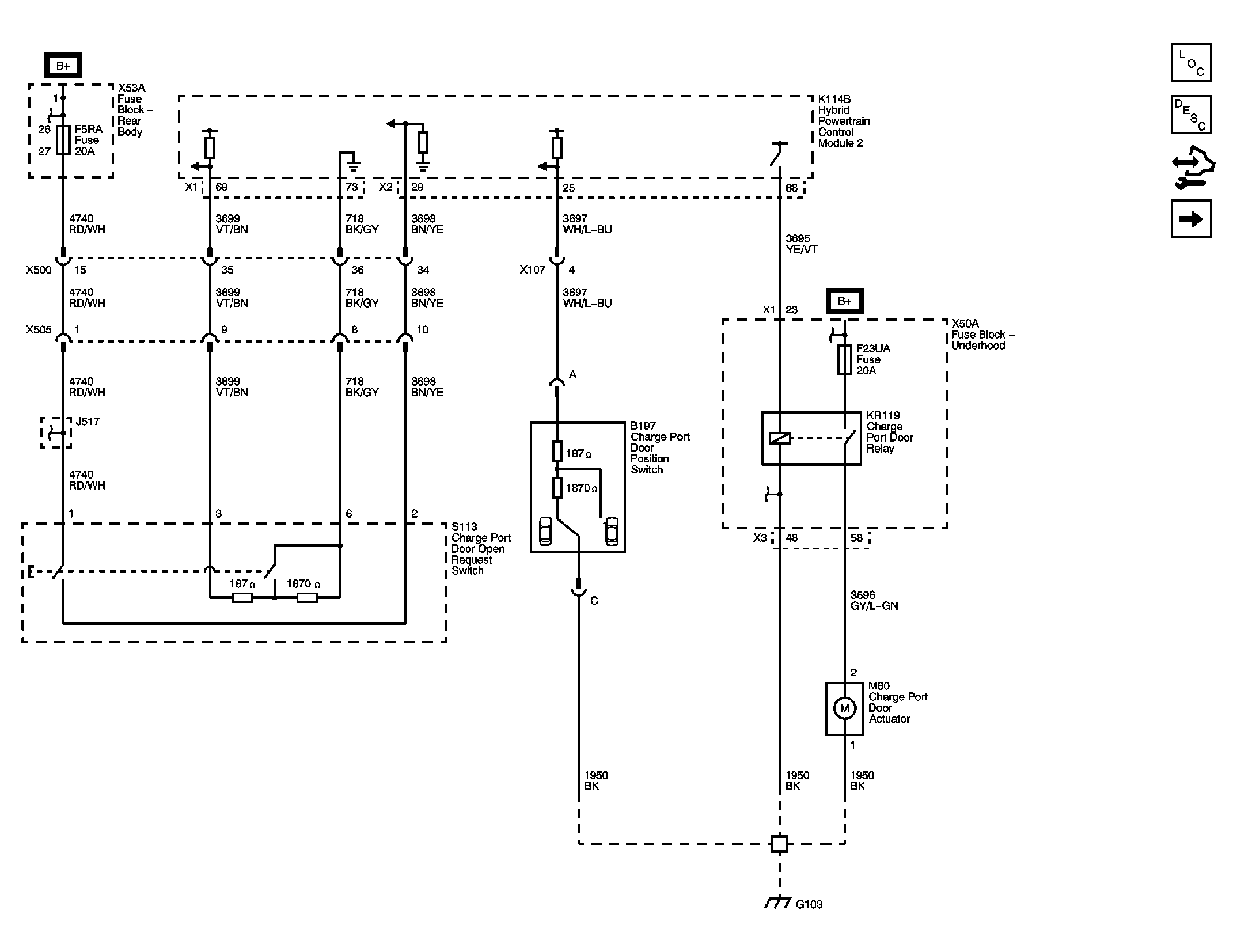

Fig 1: Charging Port Door Wiring Schematic
GM2488715Courtesy of GENERAL MOTORS CORP.

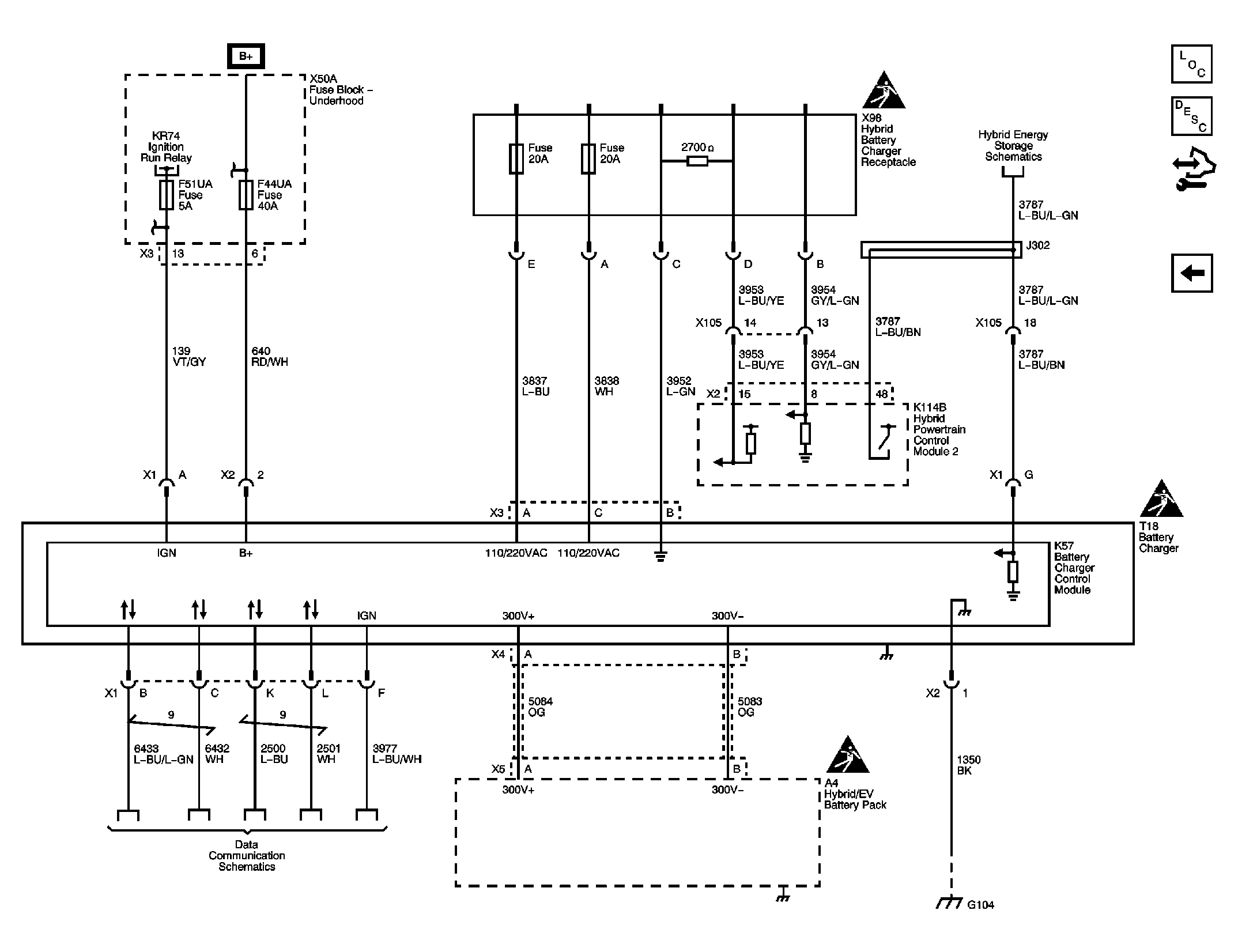

Fig 2: Battery Charger Wiring Schematic
GM2488716Courtesy of GENERAL MOTORS CORP.
