Release Systems Schematics (Liftgate)

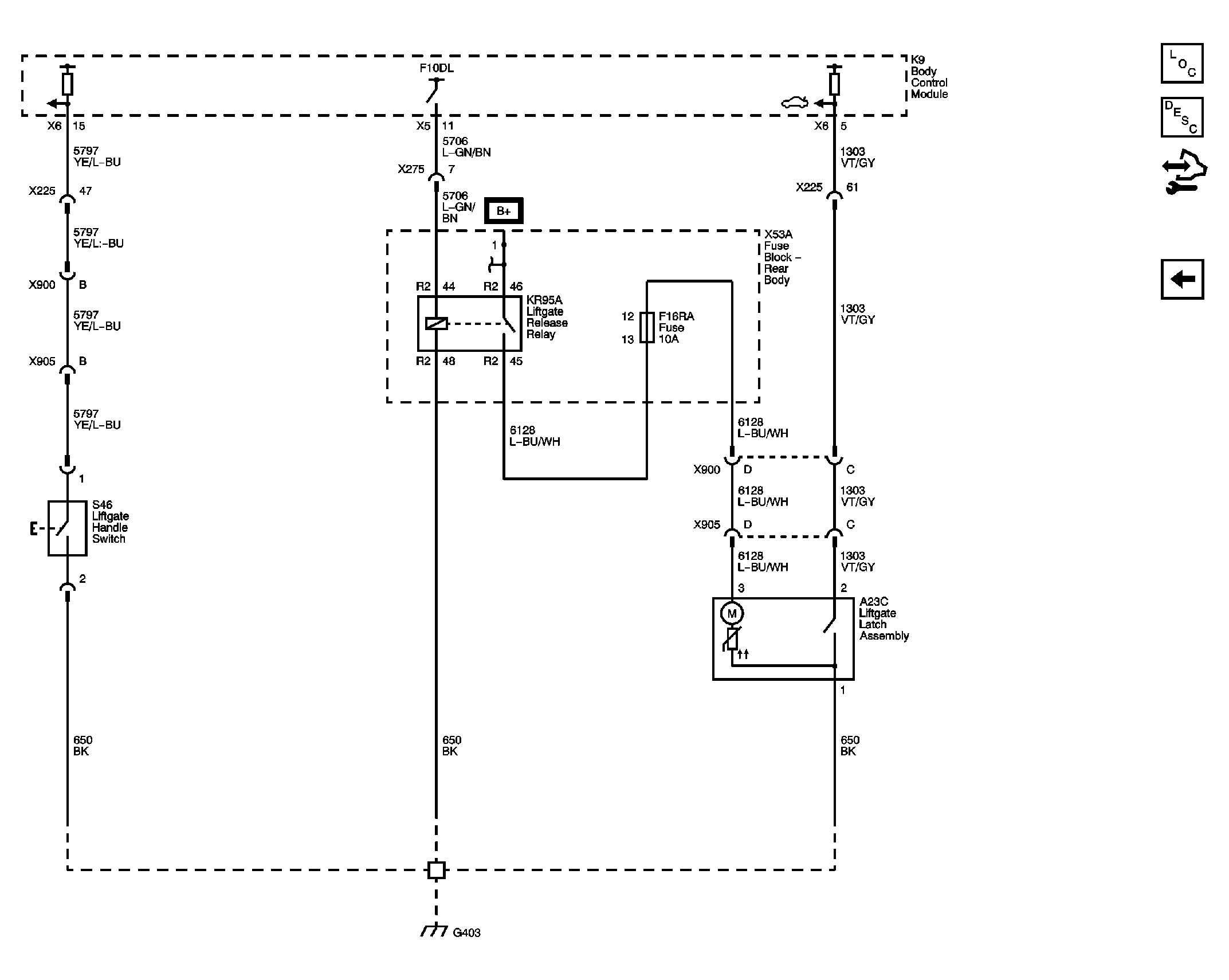

Fig 1: Liftgate Release Wiring Schematic

GM2489893

Courtesy of GENERAL MOTORS CORP.
