Hybrid/EV Battery Interface Control Module 2 X3 K112B
Component Connector End Views

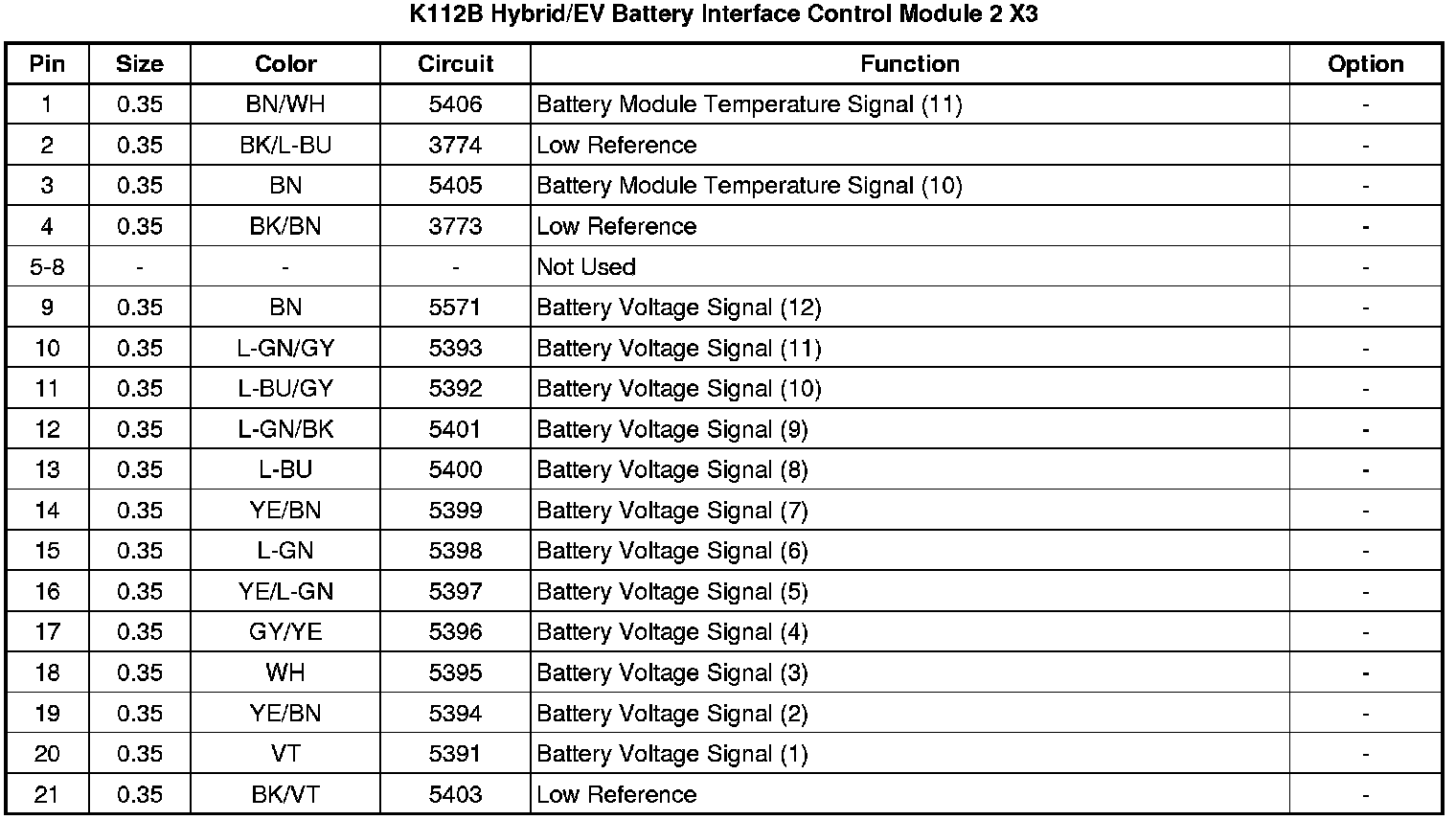

K112B Hybrid/EV Battery Interface Control Module 2 X3
