Short Range Radar Sensor Replacement (Rear)
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Rear Bumper Energy Absorber Replacement |

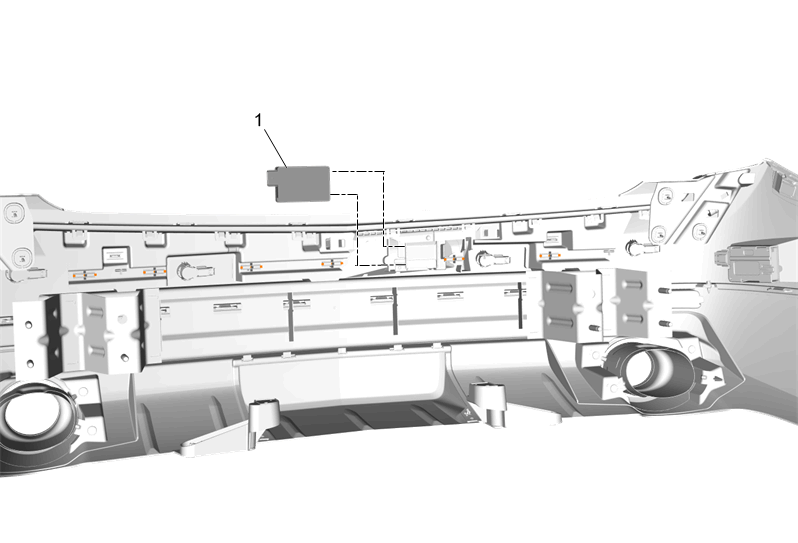

| 1 |
Short Range Radar Sensor Procedure
- Disconnect the electrical connector.
- Release the tab retainer and slide the sensor through the bracket opening to remove.
- Control Module References
for programming and setup information, if required.
|
