Front View Camera Replacement (With UGN)
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement
. |
| 1 |

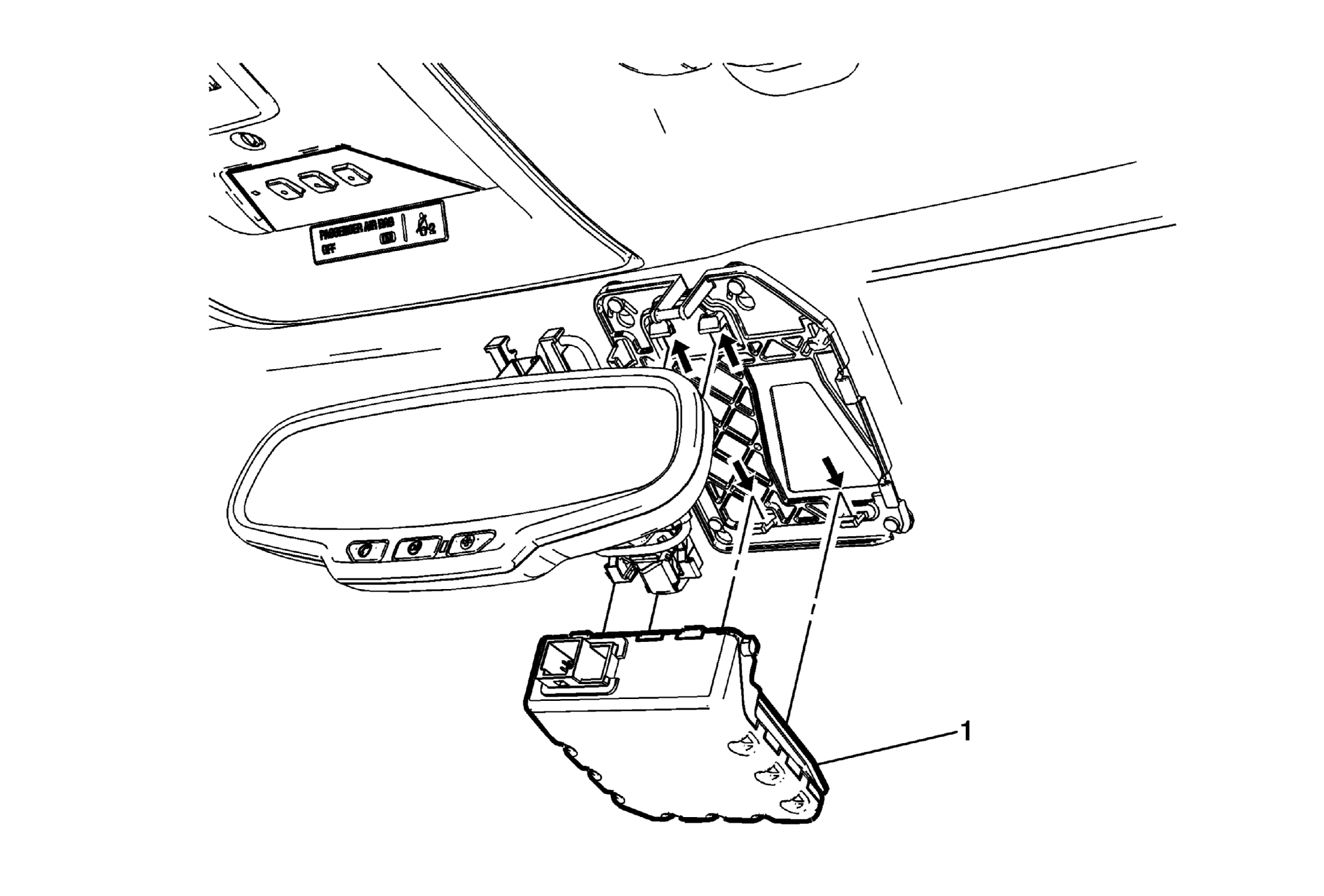

Front View Camera Procedure
- Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
- Disconnect the electrical connector.
- After replacement of the front view camera, program the front view camera. Refer to Control Module References
.
|
