Traverse LS, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock System And Release Systems
>>
Wiring Schematics
>>
Liftgate Wiring Schematics
>>
Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator

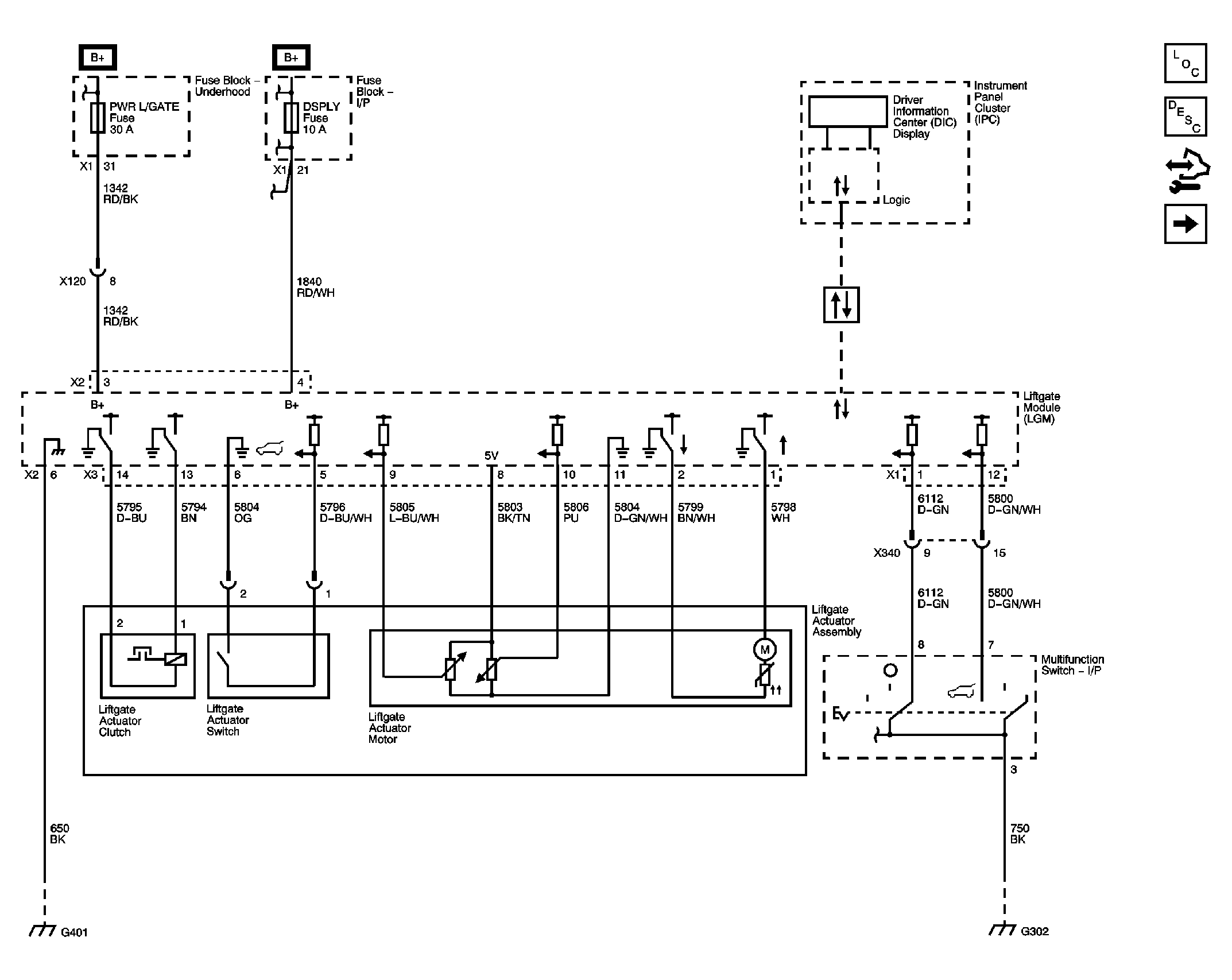

Fig 1: Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator Wiring Schematic
