Ambient Air Quality Sensor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

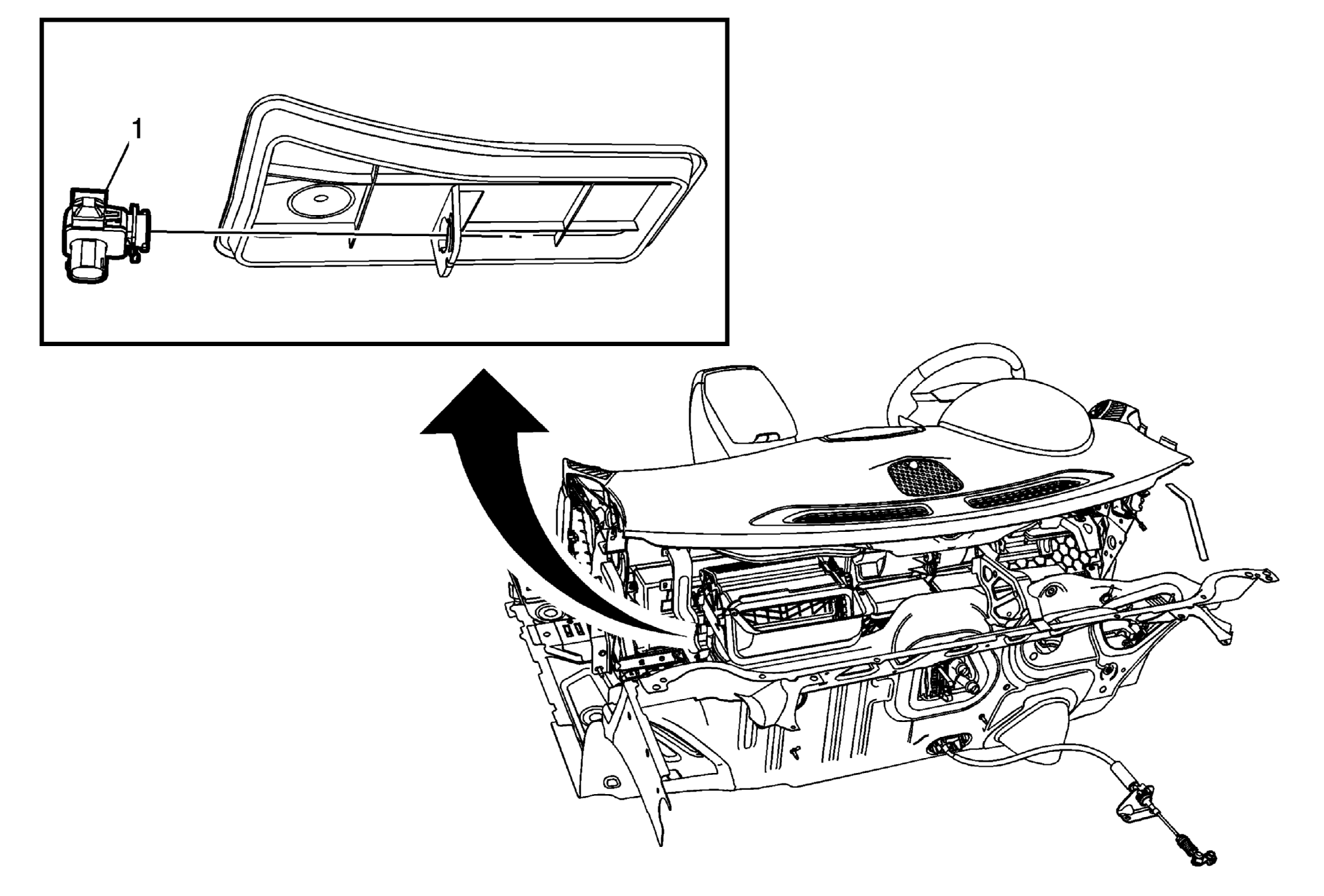

Fig 1: Identifying Ambient Air Quality Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Ambient Air Quality Sensor Procedures Unsnap the ambient air quality sensor and move it forward. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

Ambient Air Quality Sensor

Procedures

Unsnap the ambient air quality sensor and move it forward.
Disconnect the electrical connector.
