Chevrolet
>>
2011
>>
Traverse LS, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock System And Release Systems
>>
Wiring Schematics
>>
Release Systems Wiring Schematics
>>
Tb4
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Release Systems Wiring Schematics: Tb4

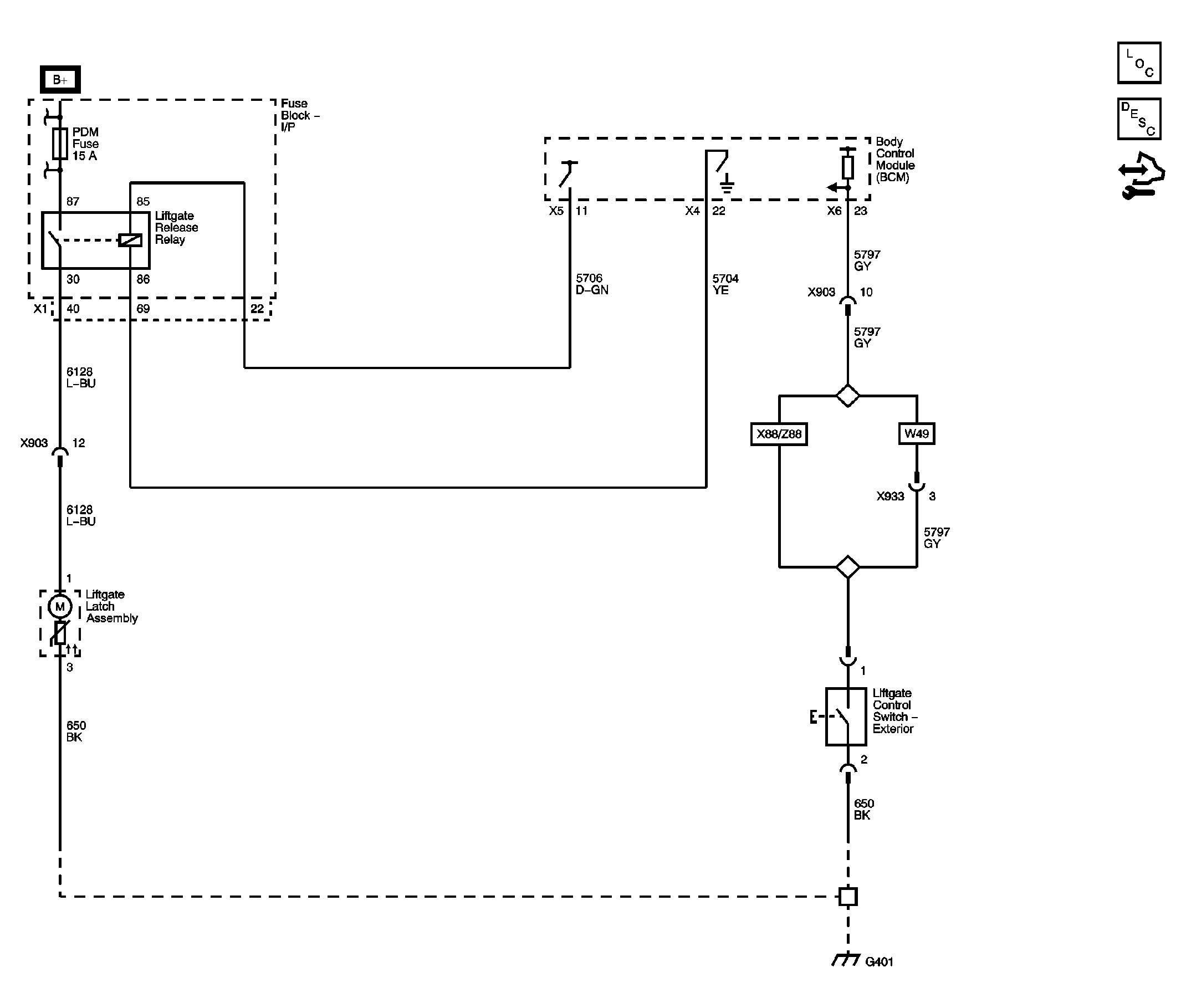

Fig 1: TB4 Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
