Steering Wheel Secondary/Configurable Control System Wiring Schematics: UK3

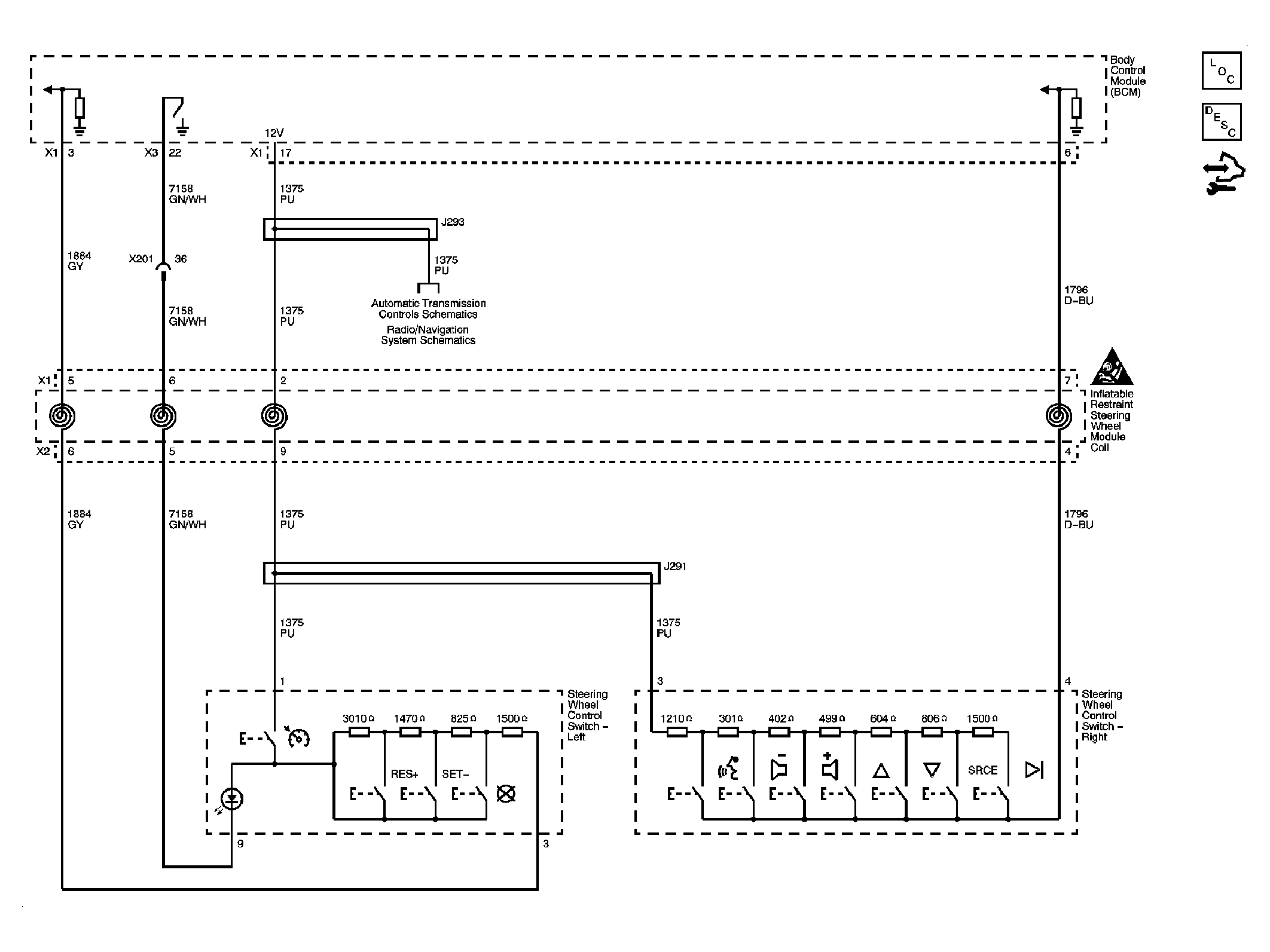

Fig 1: UK3 Wiring Schematic
GM2381794Courtesy of GENERAL MOTORS CORP.
