44. Case Cover Assembly Disassemble




Case Cover Assembly Disassemble

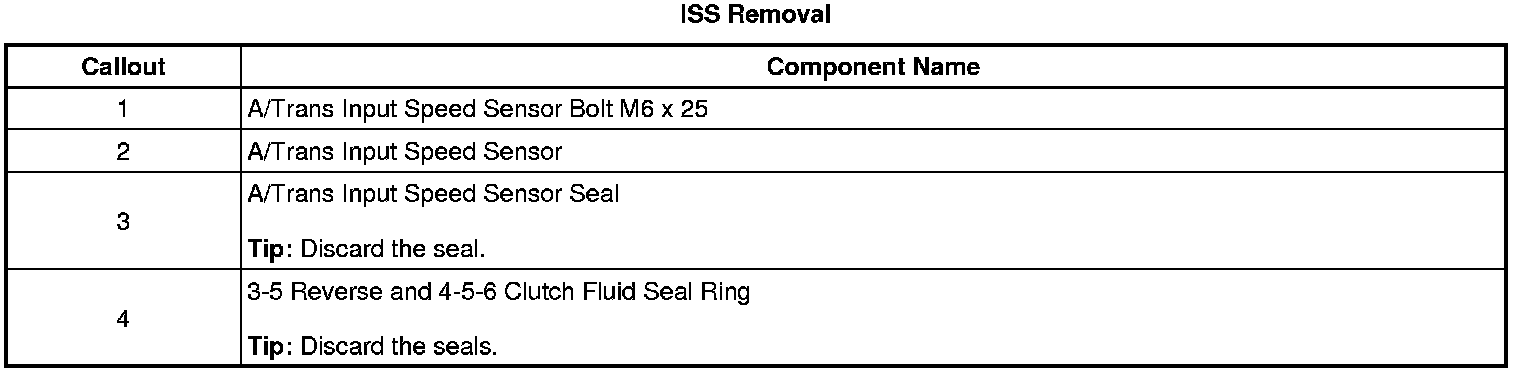

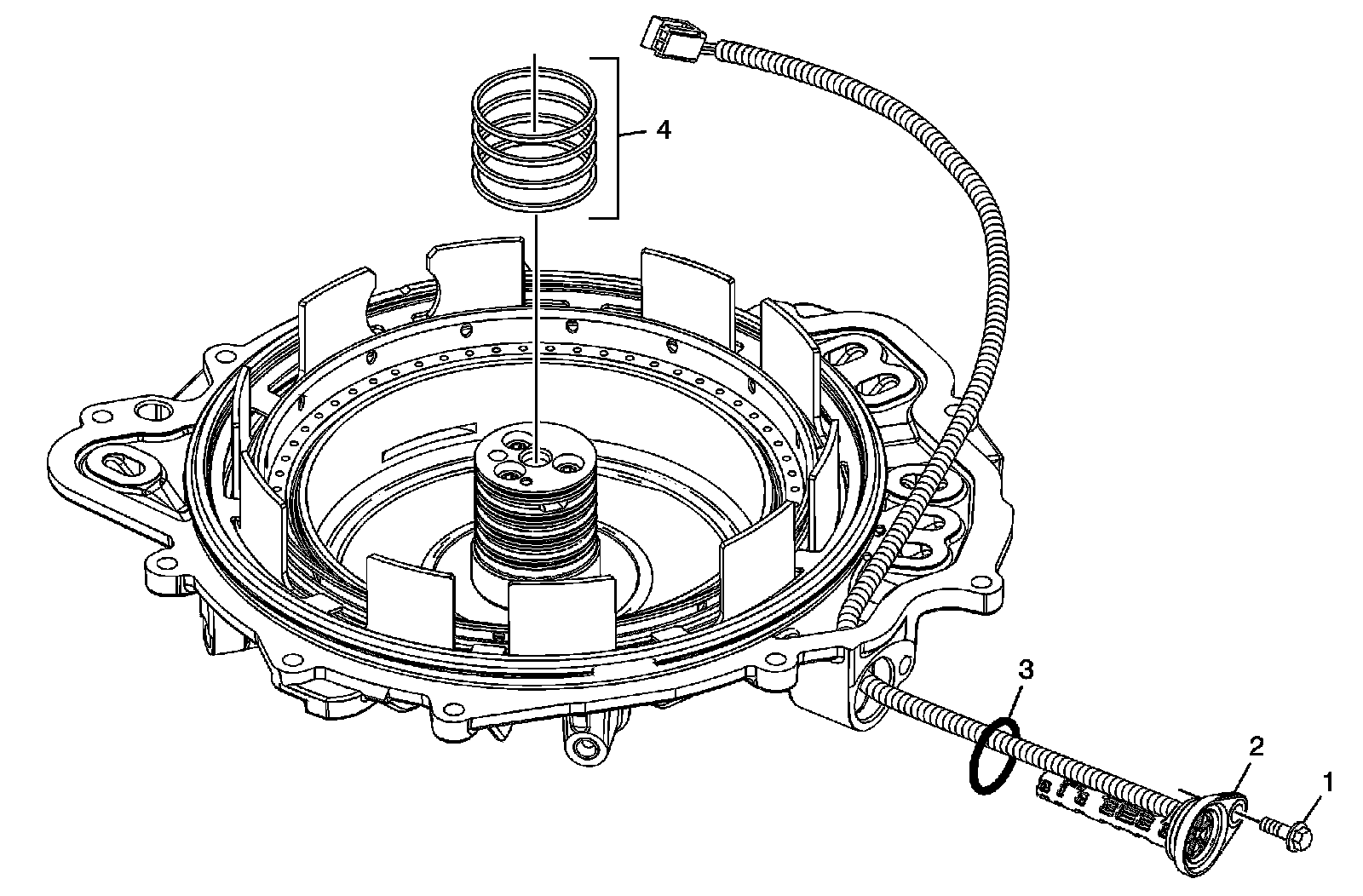

ISS Removal

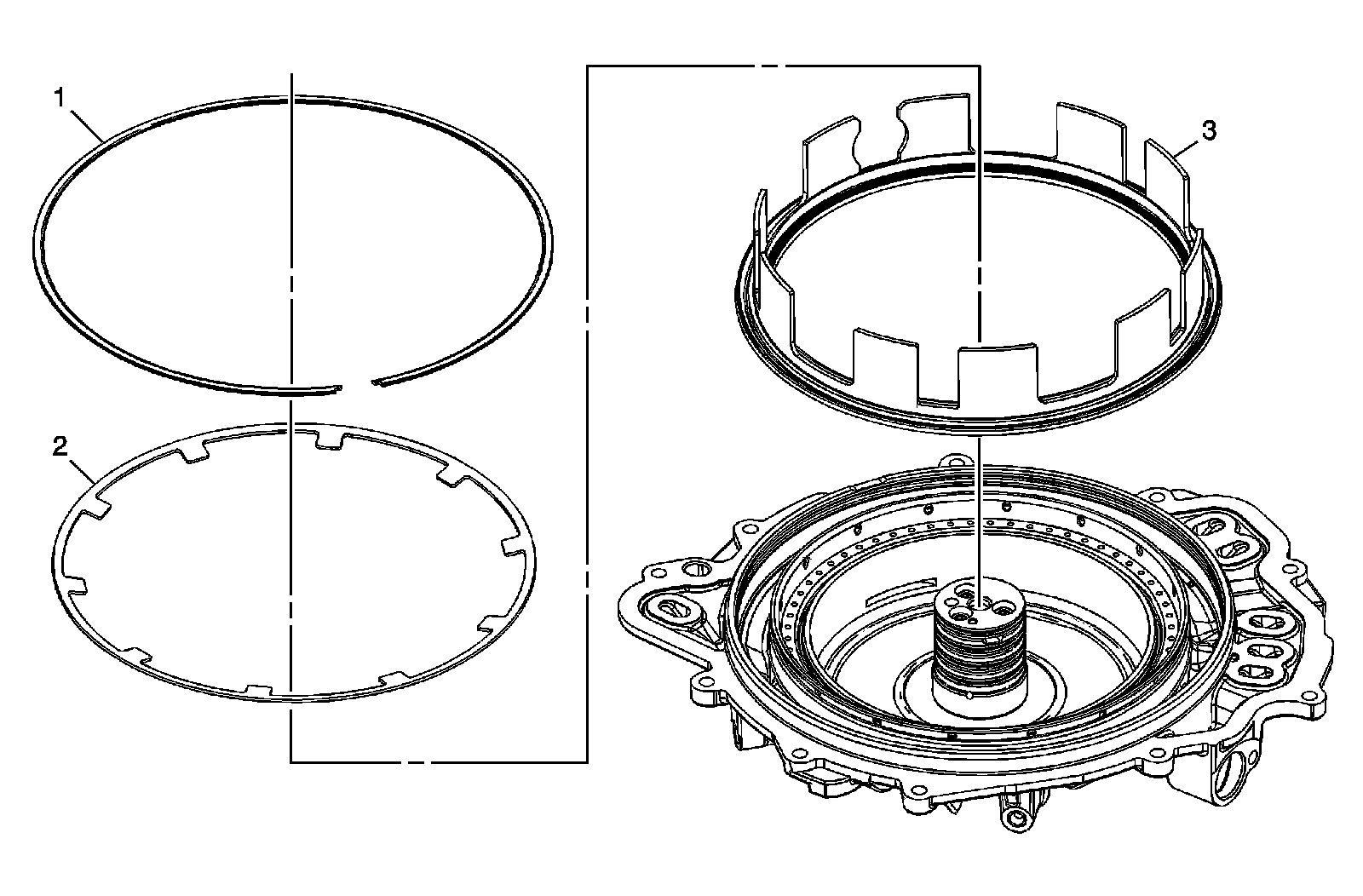

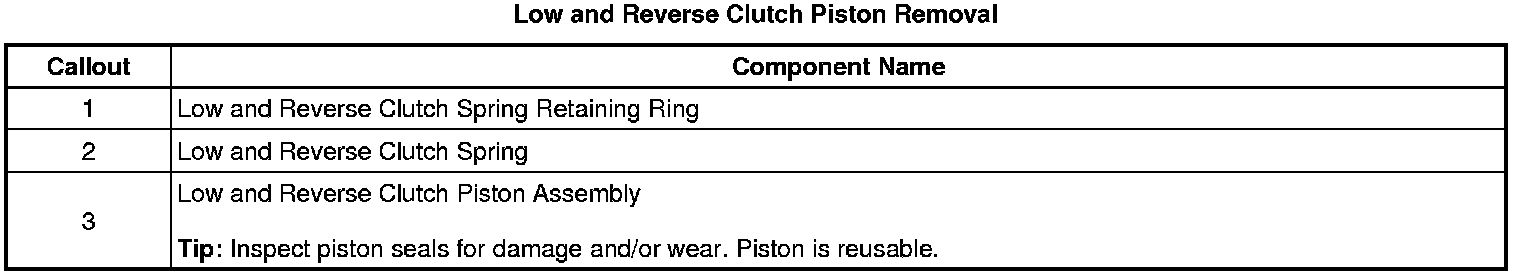

Low and Reverse Clutch Piston Removal

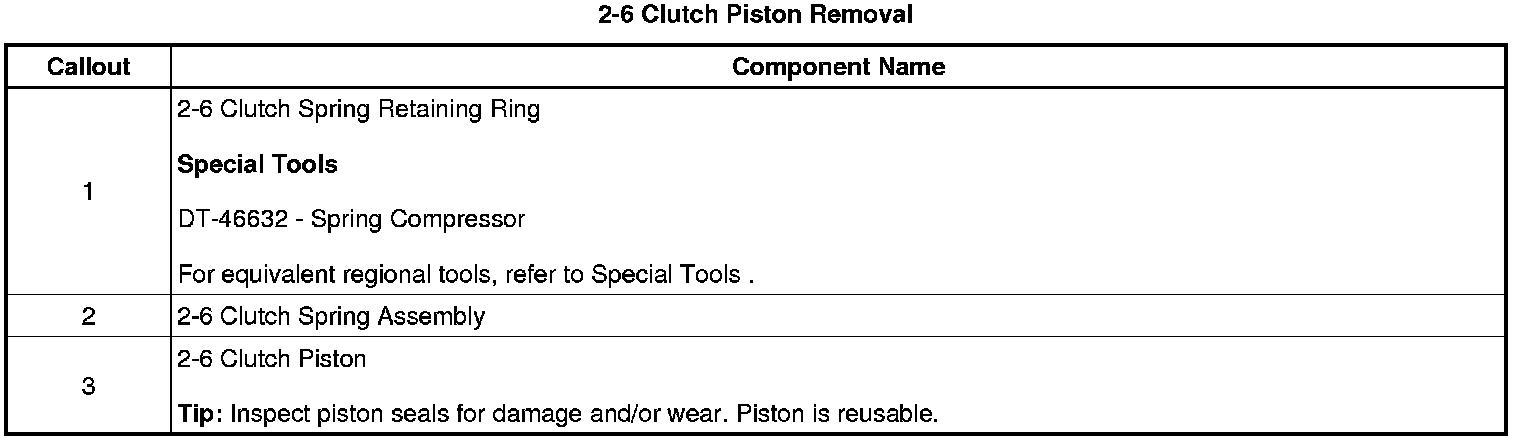

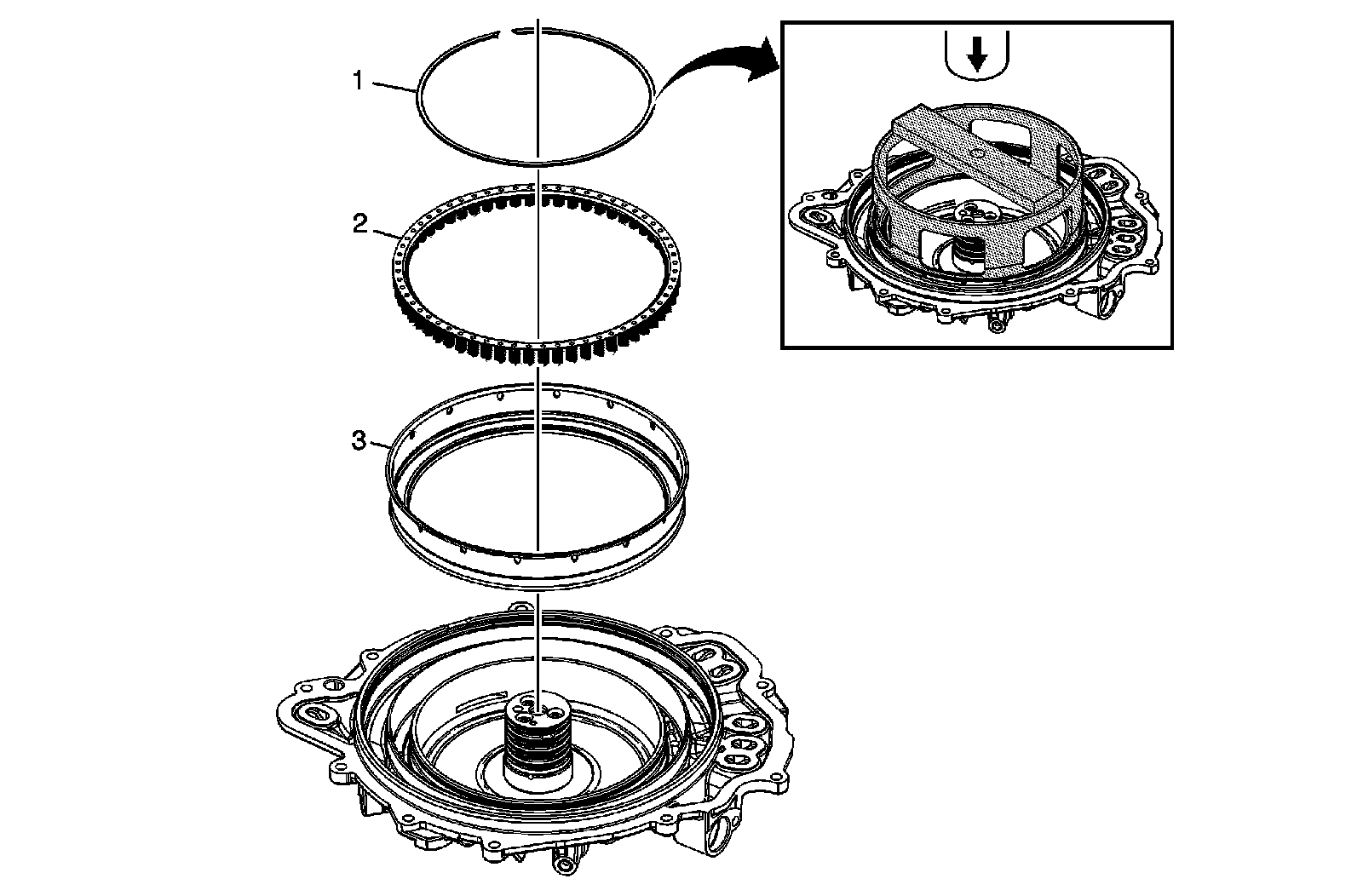

2-6 Clutch Piston Removal

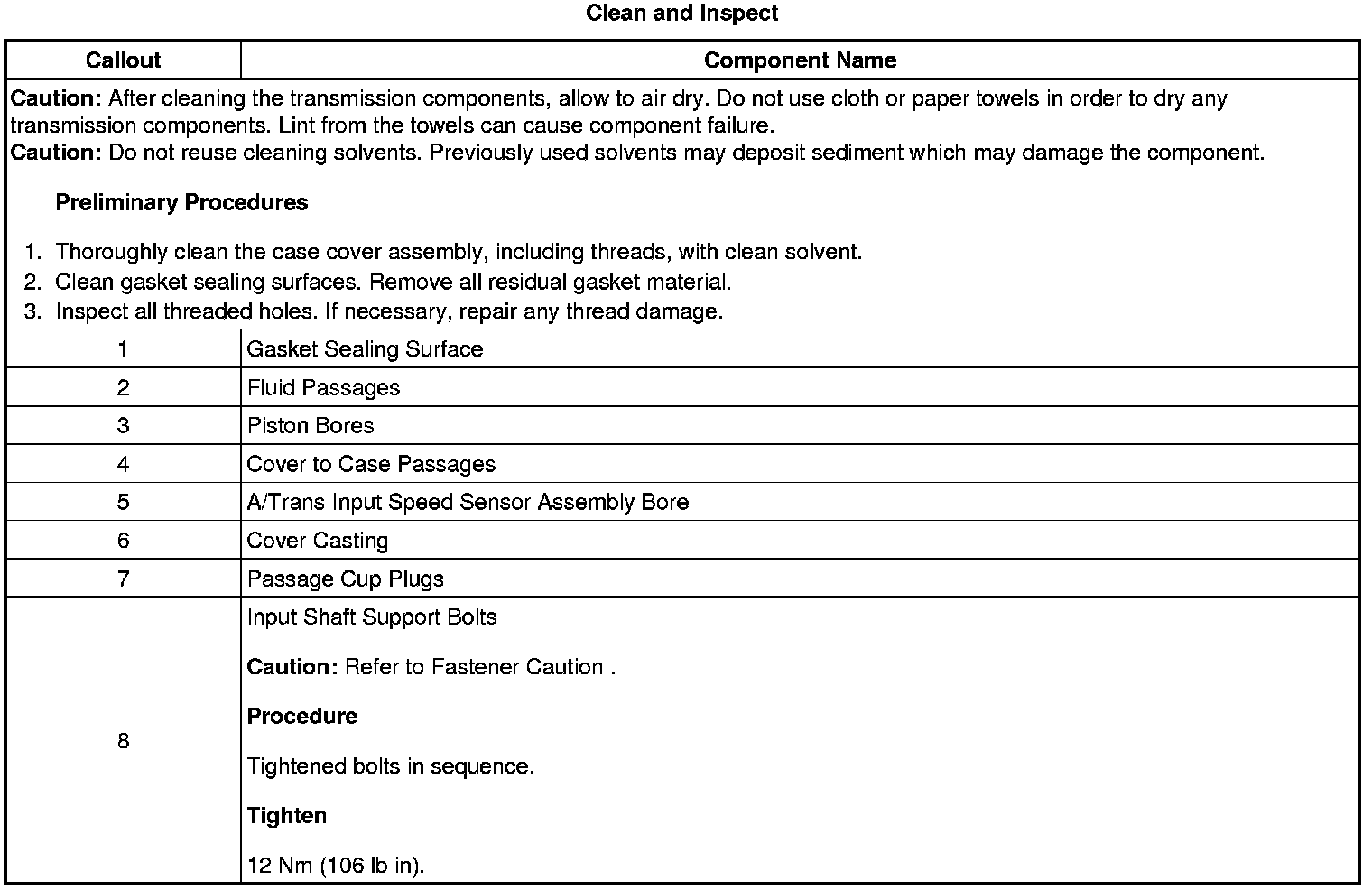

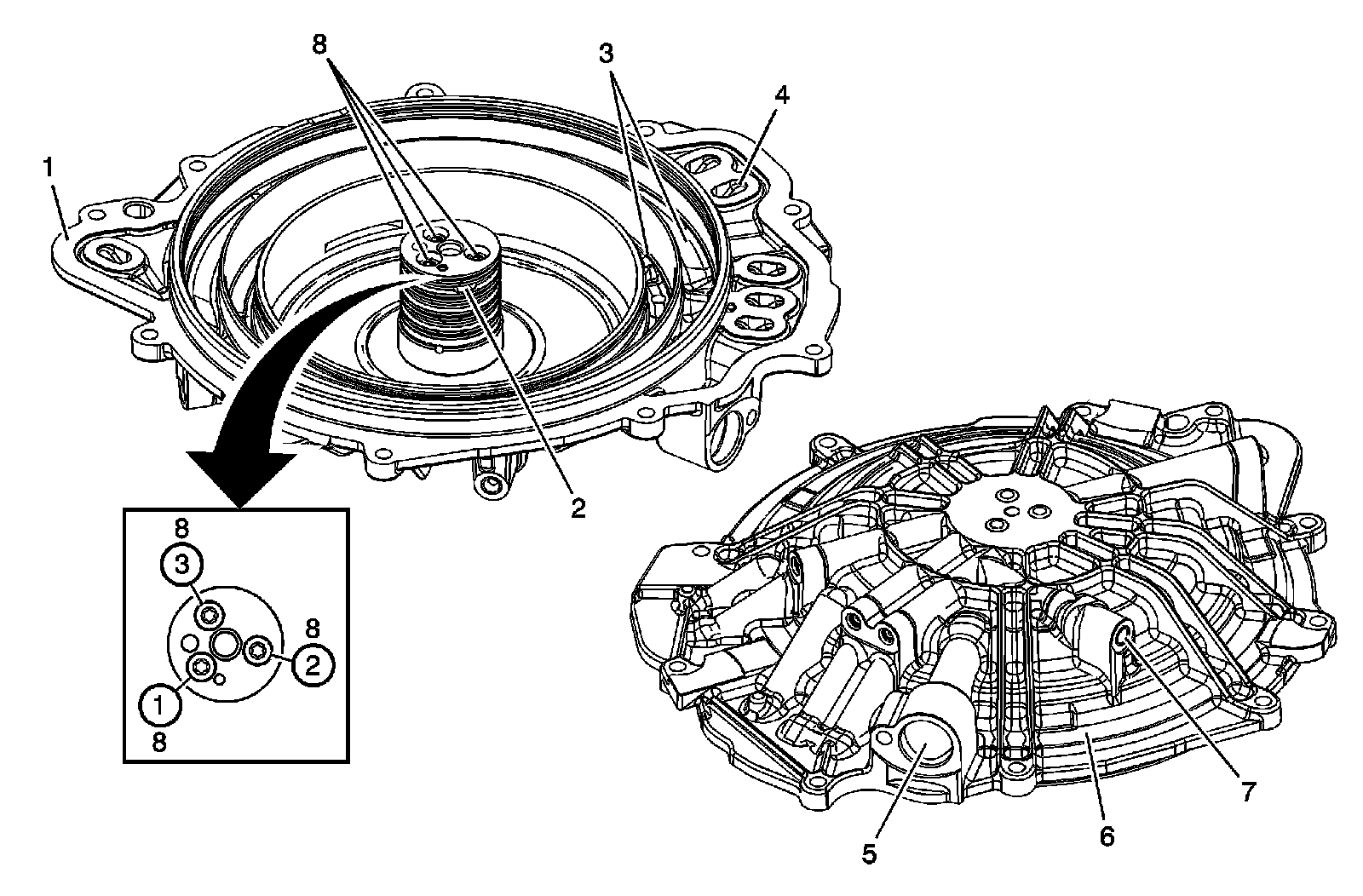

Clean and Inspect
