G113




Ground Distribution Schematics

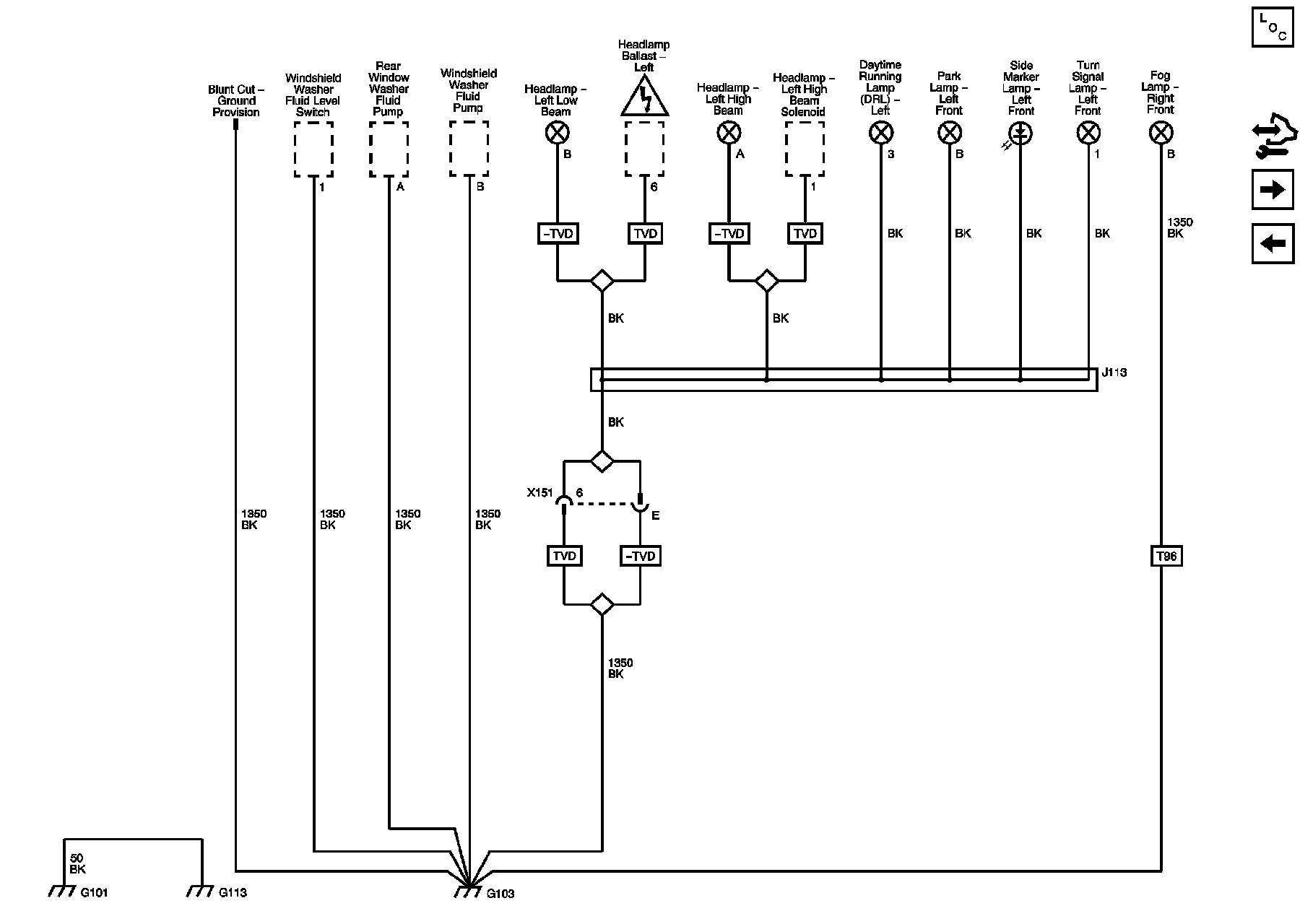

G101, G103, and G113 (W49)

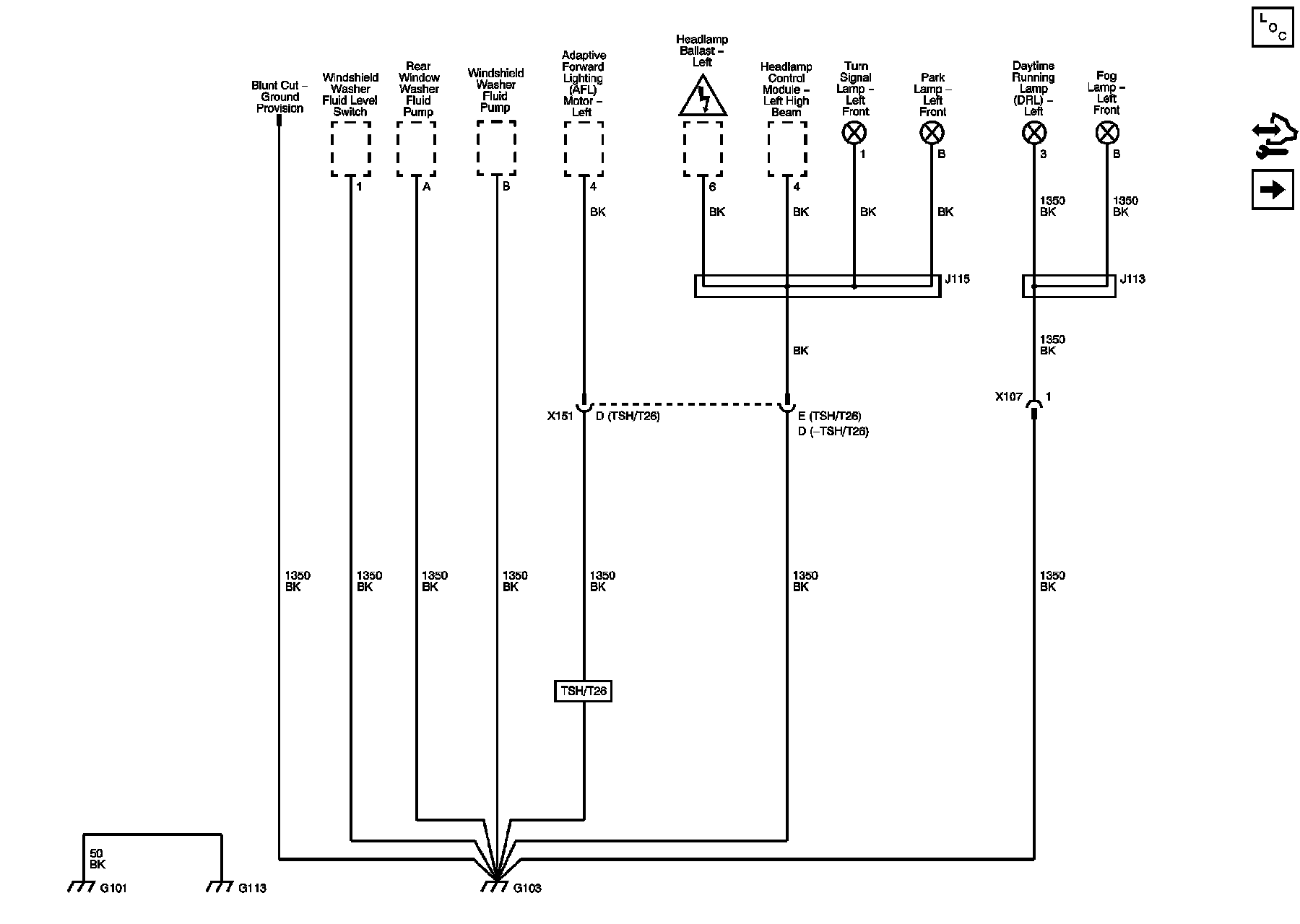

G101, G103, and G113 (X88)

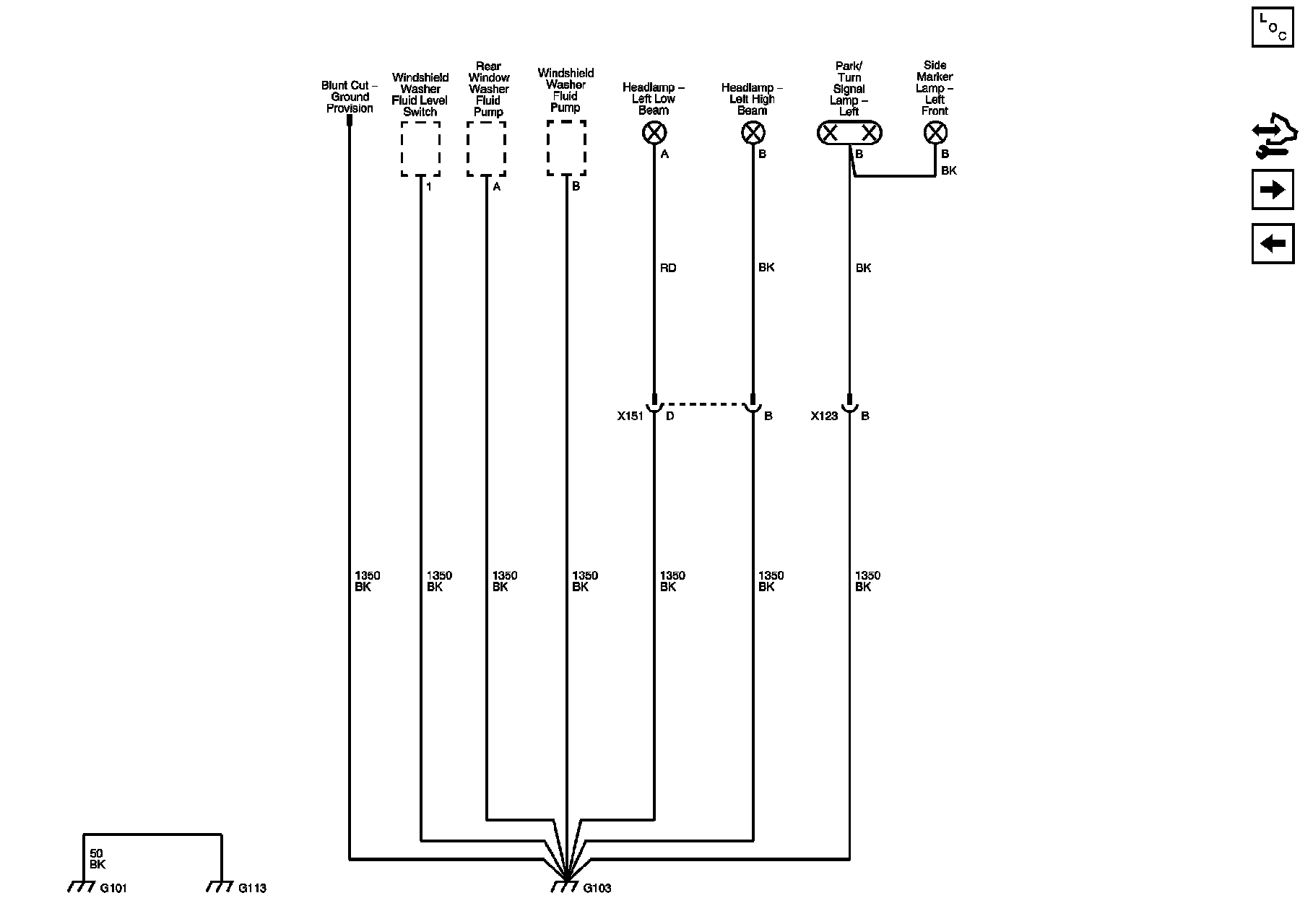

G101, G103, and G113 (Z88)
