Transfer Case Assemble




Transfer Case Assemble

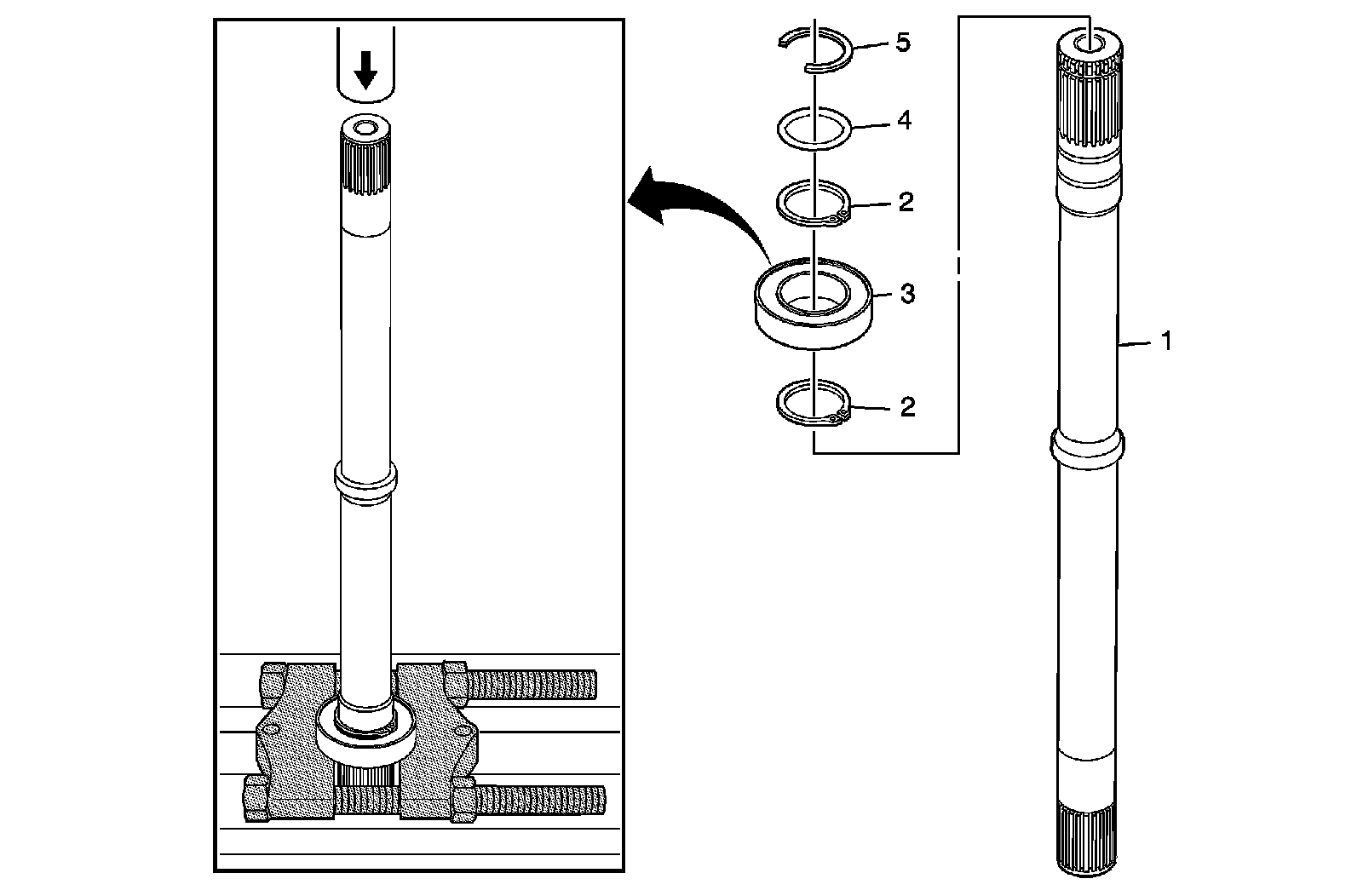

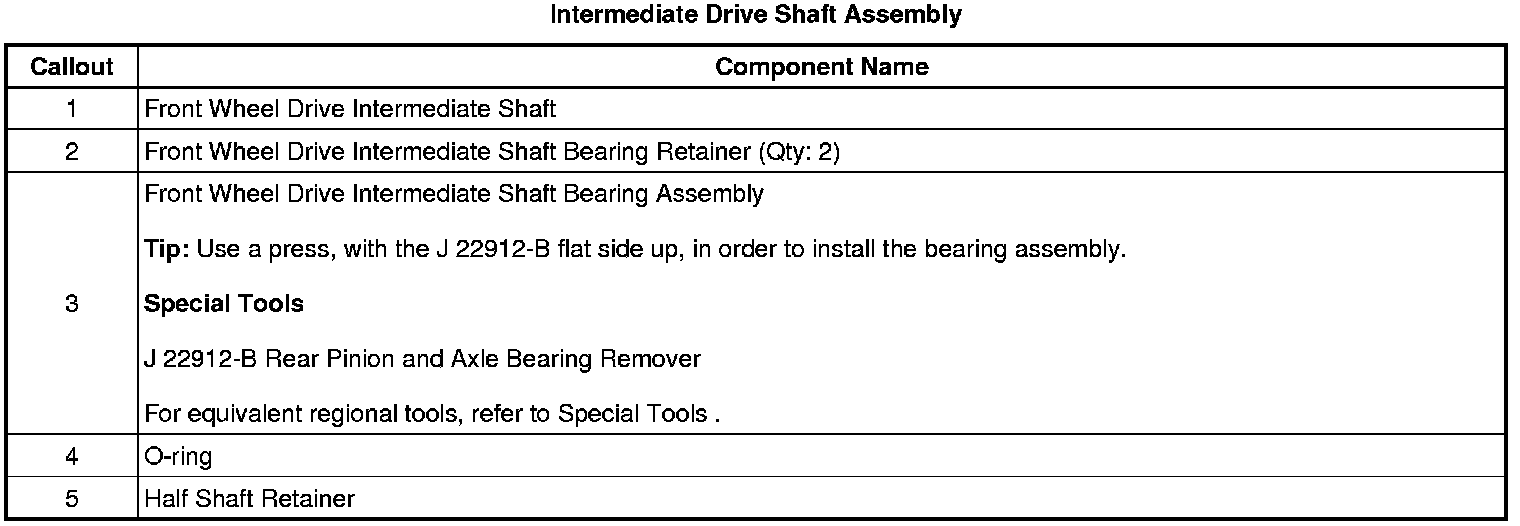

Intermediate Drive Shaft Assembly









Rear Output Shaft Housing Assembly

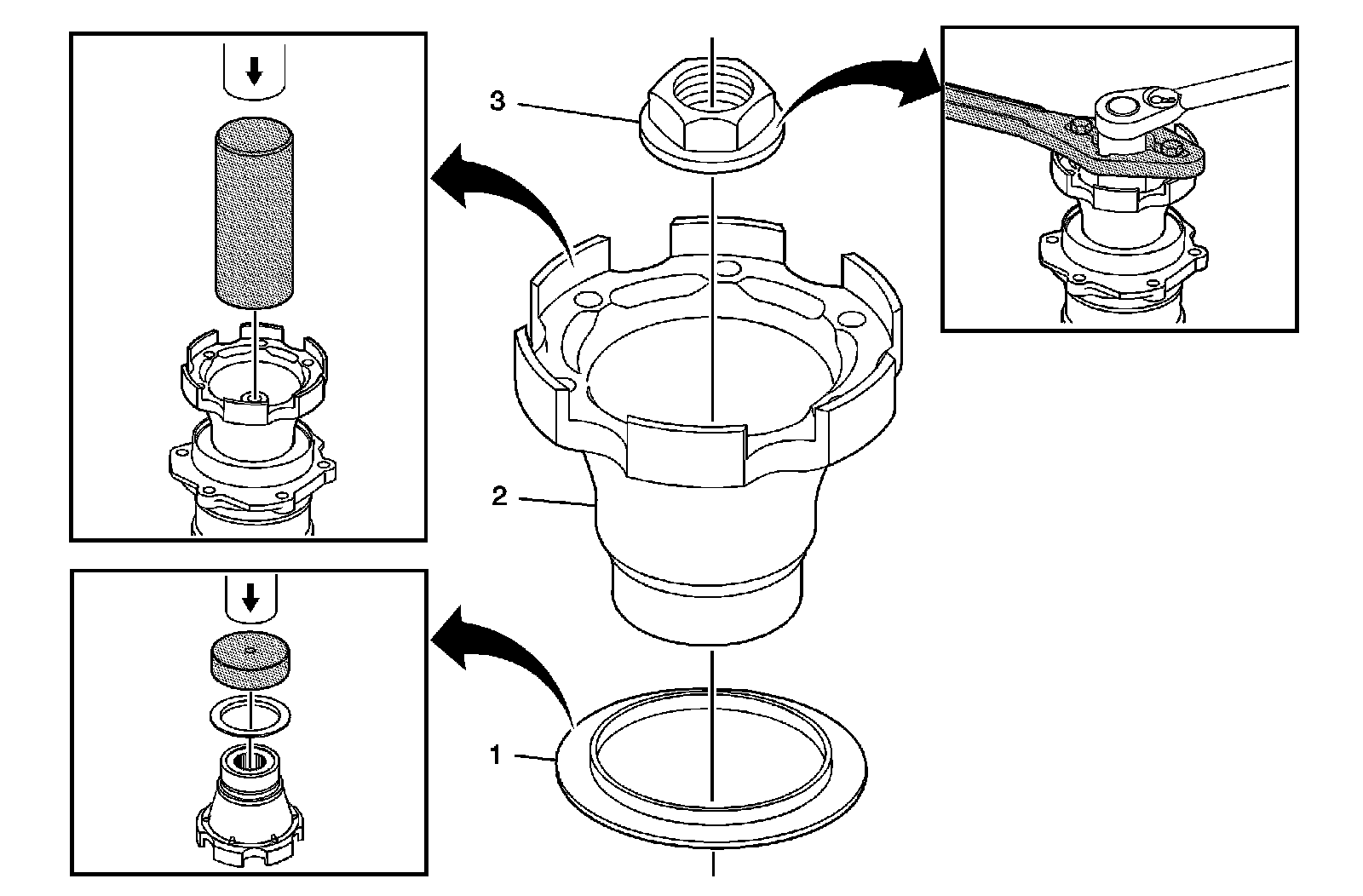

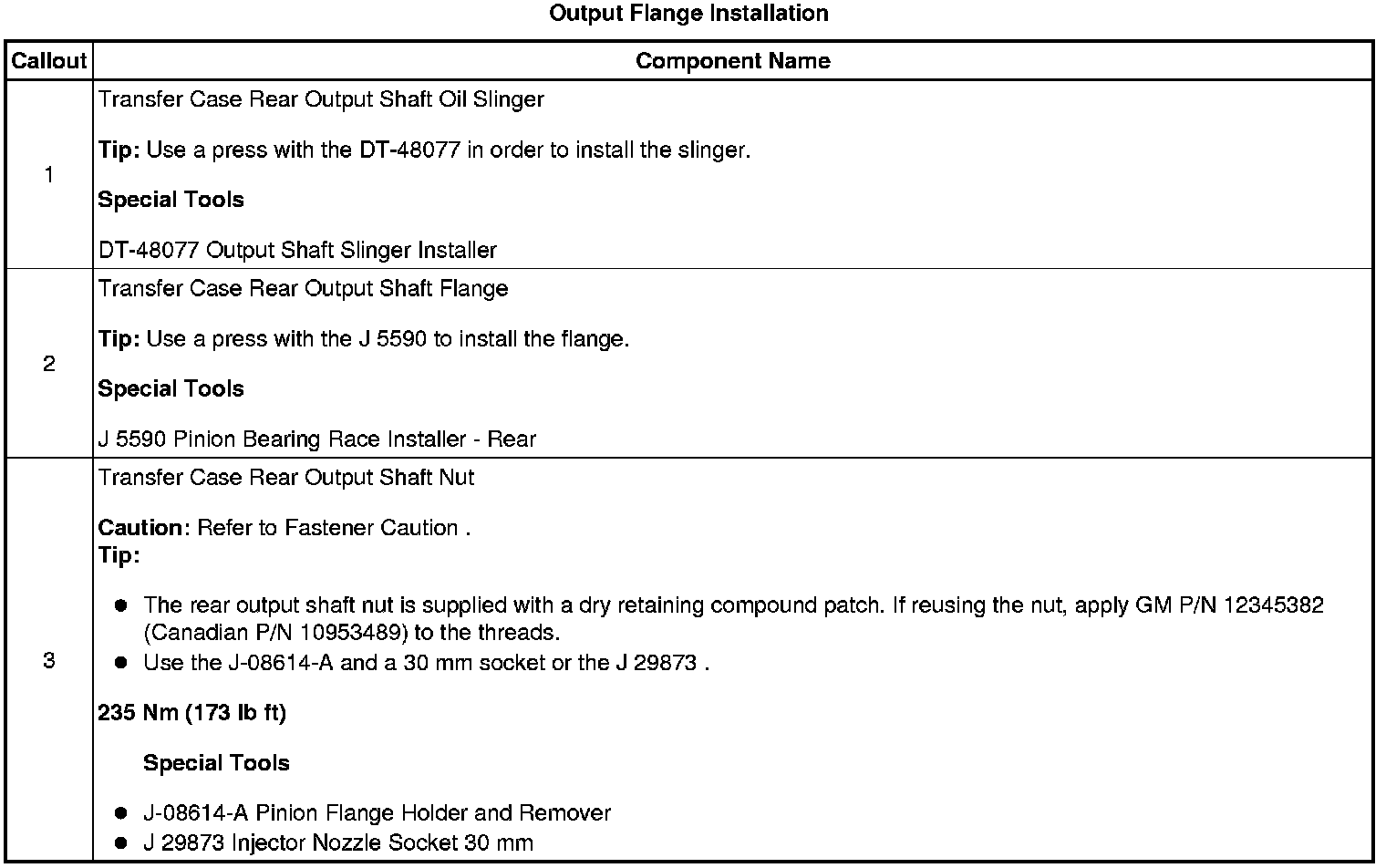

Output Flange Installation

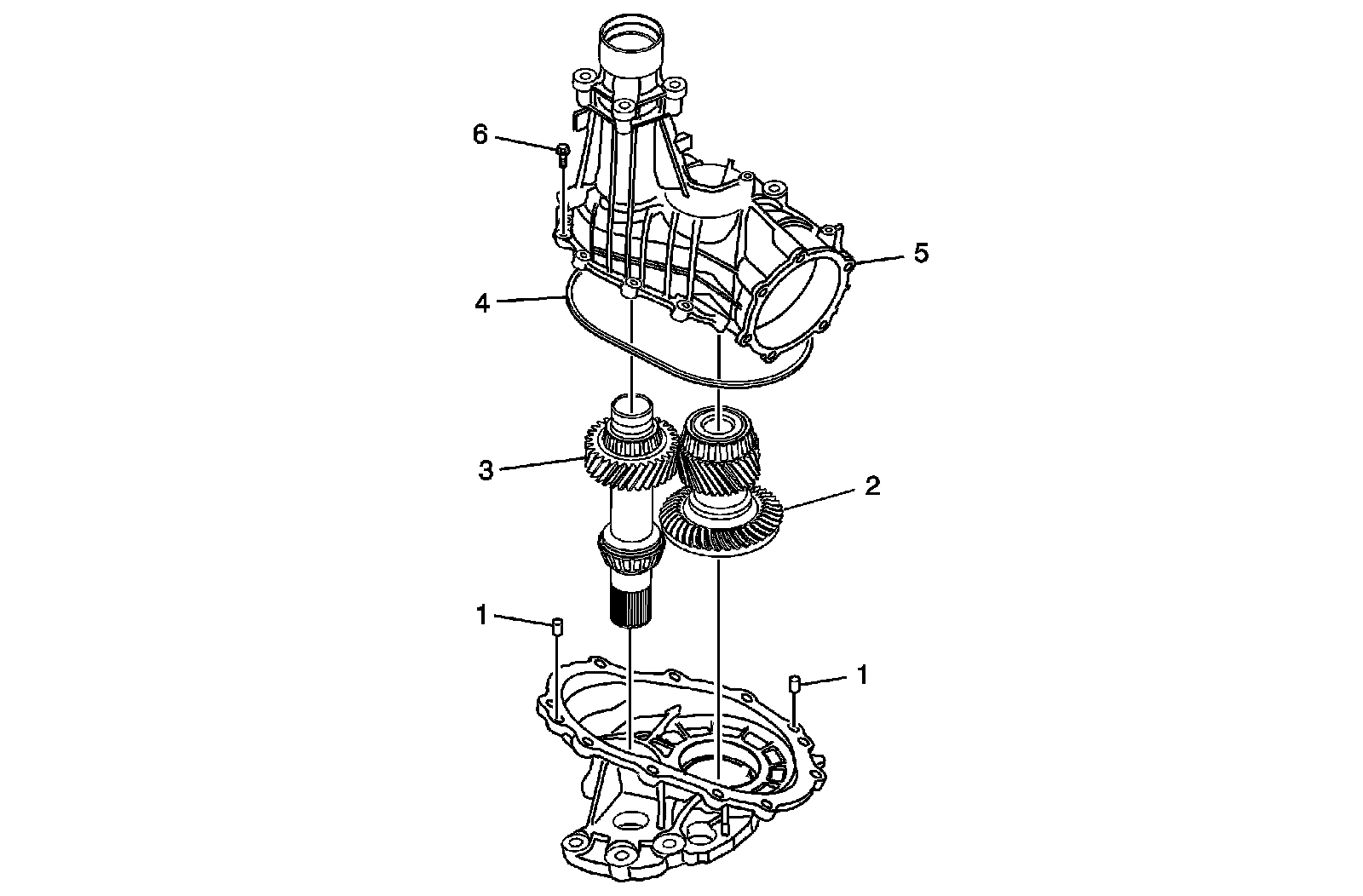

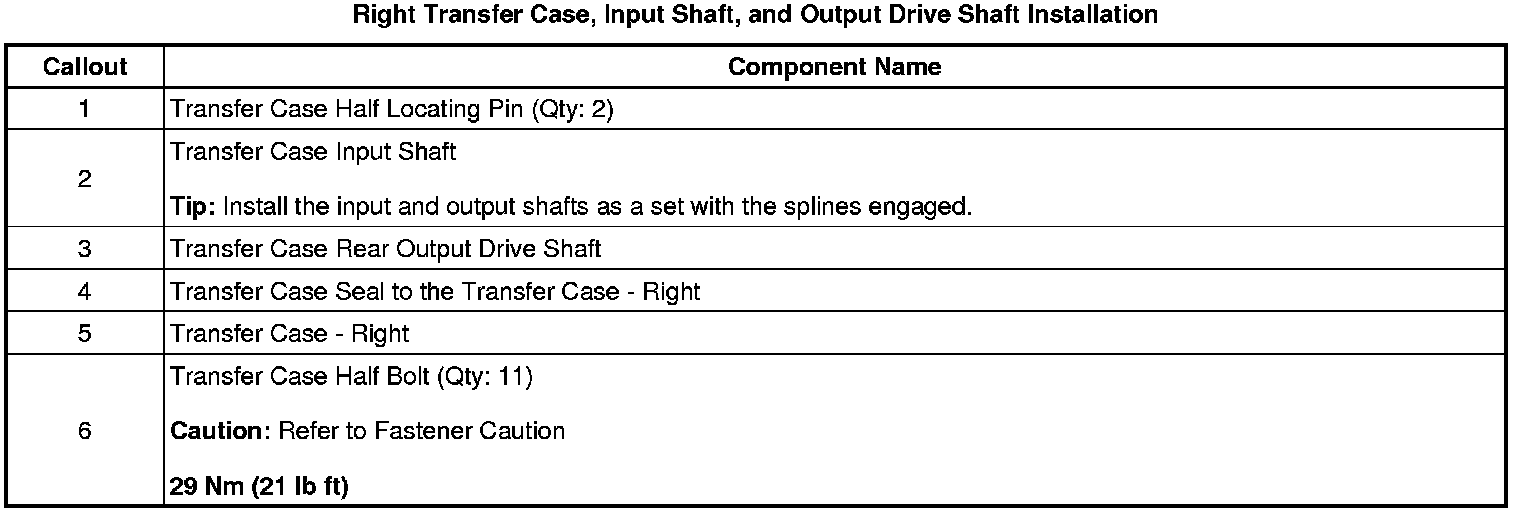

Right Transfer Case, Input Shaft, and Output Drive Shaft Installation

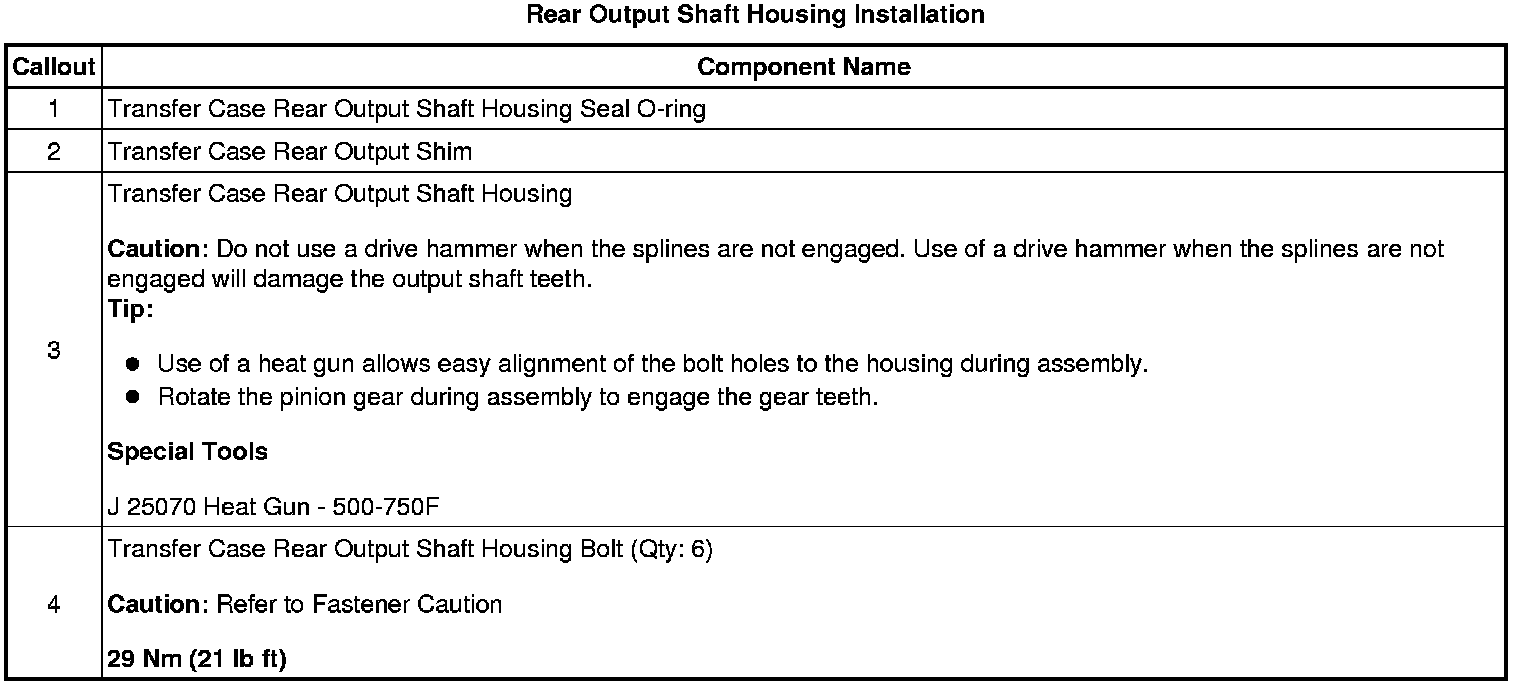

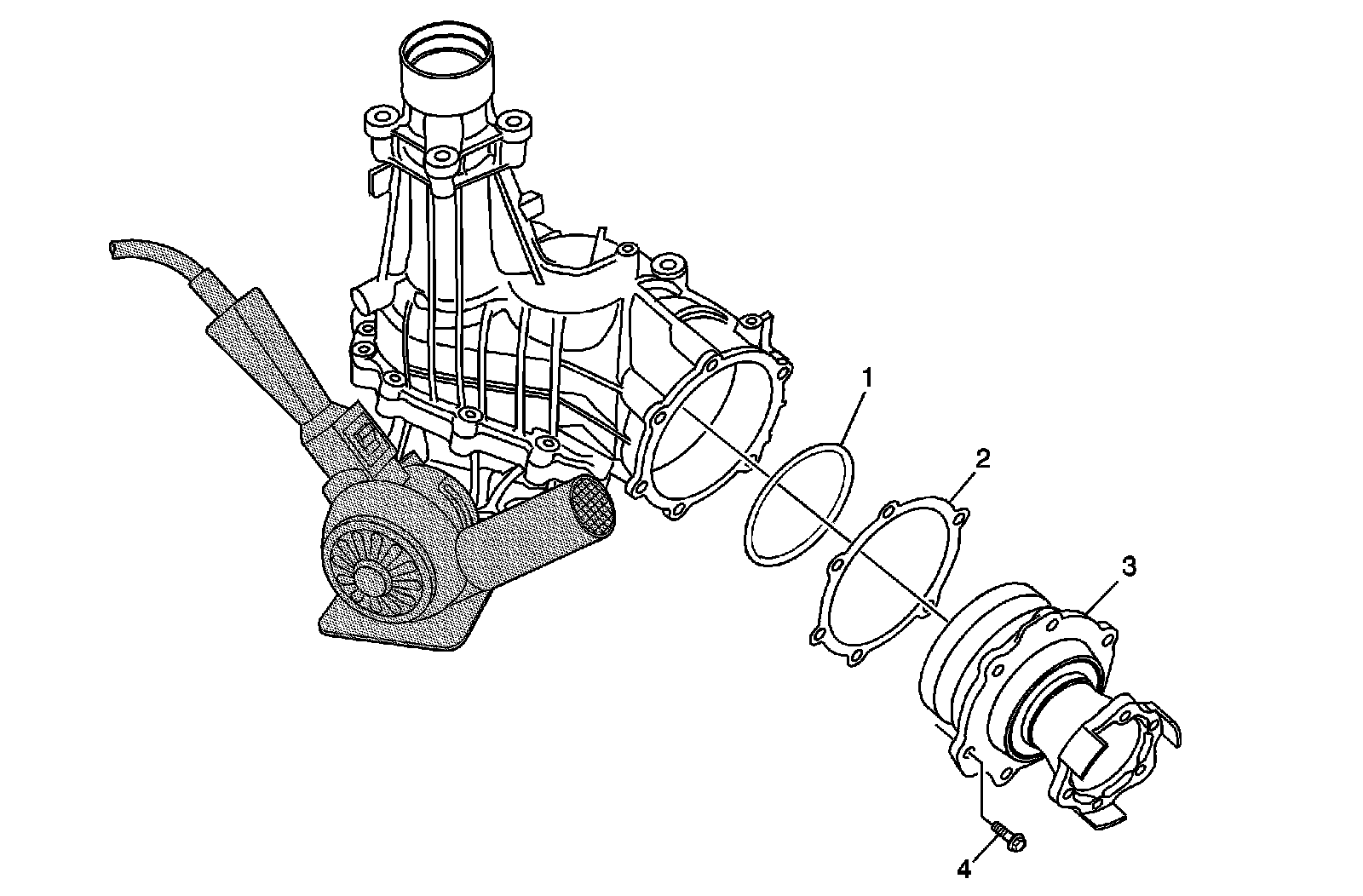

Rear Output Shaft Housing Installation

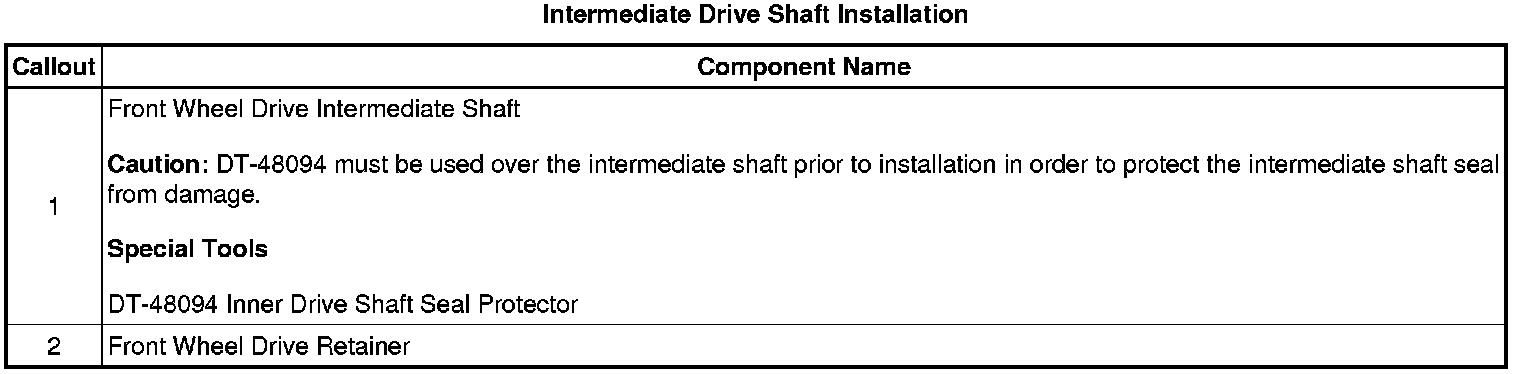

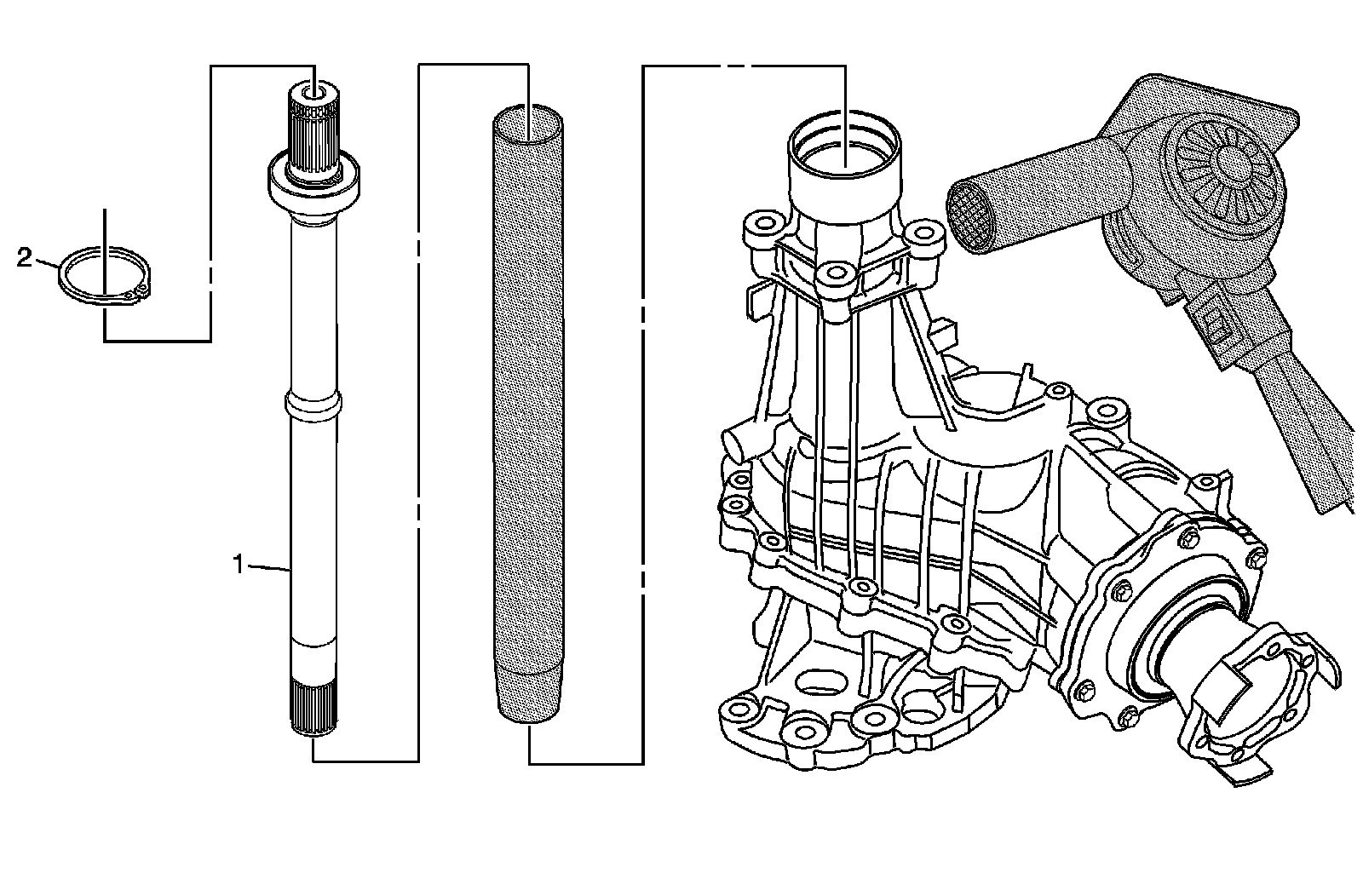

Intermediate Drive Shaft Installation

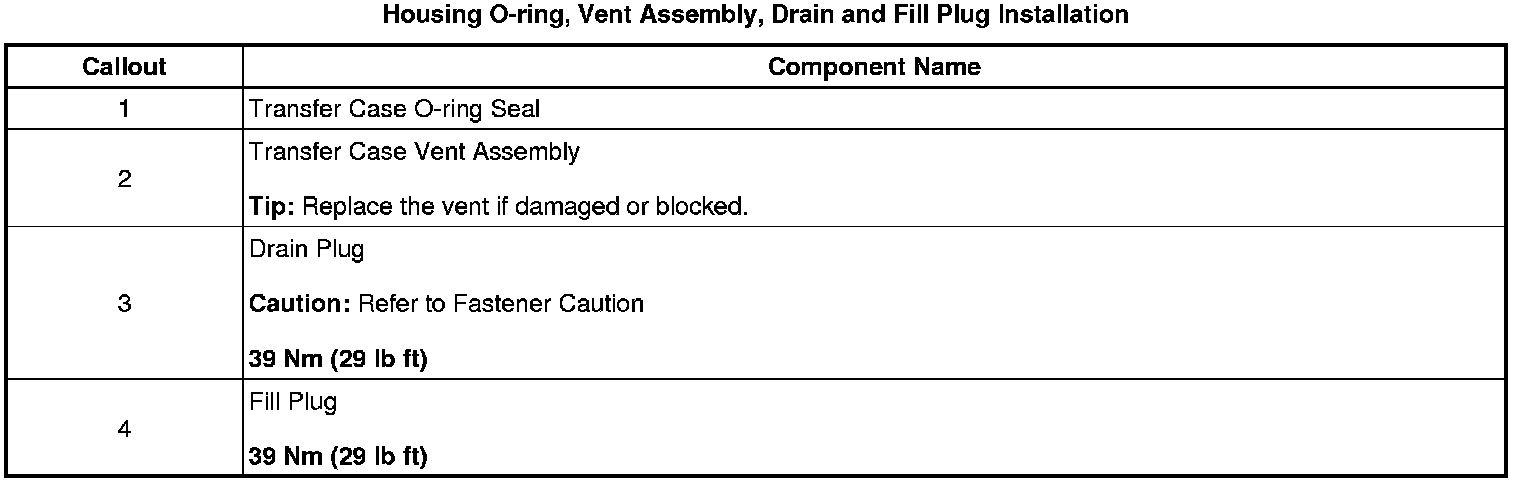

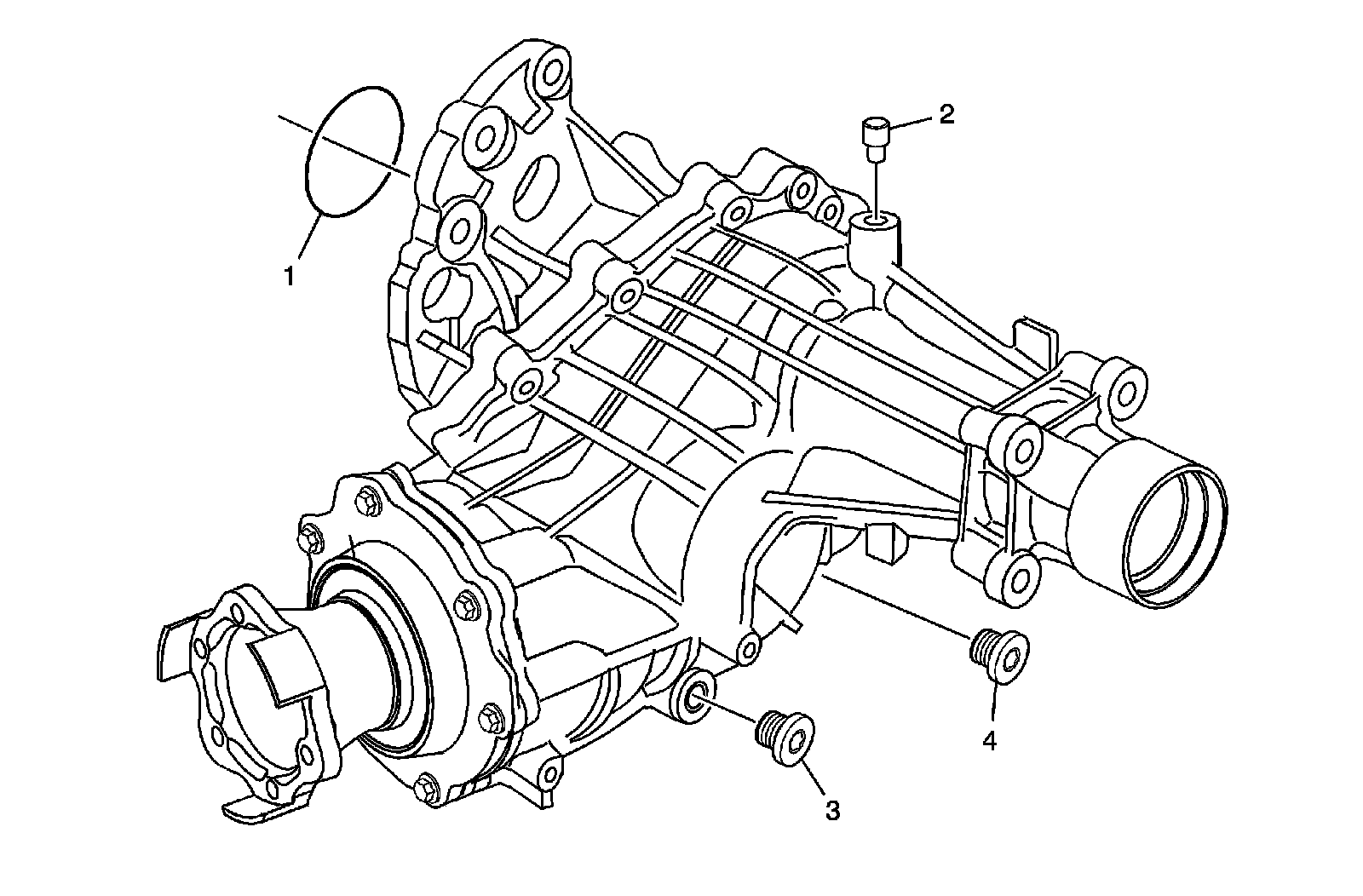

Housing O-ring, Vent Assembly, Drain and Fill Plug Installation
