Seat Belt Tensioner




Component Connector End Views

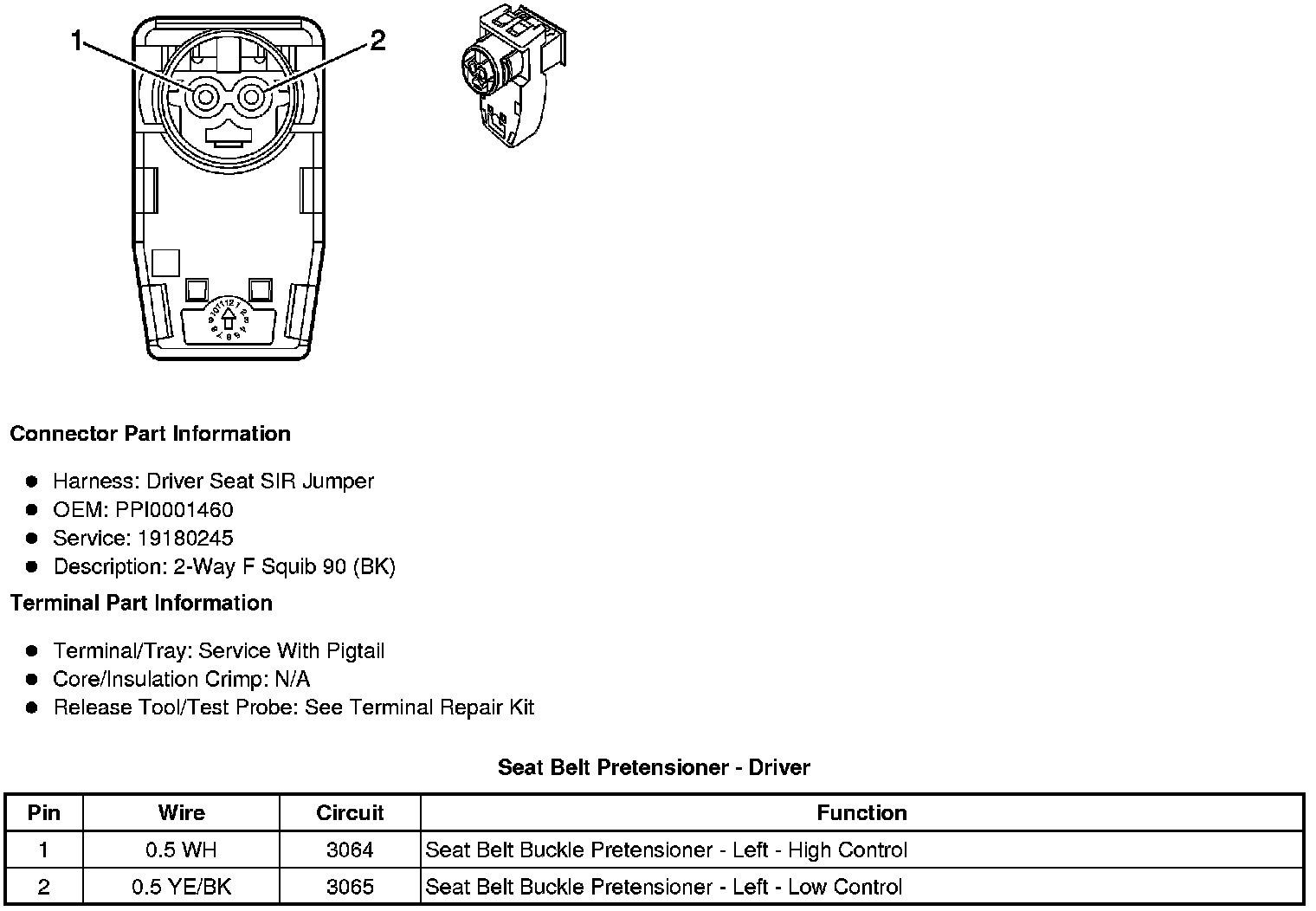

Seat Belt Pretensioner - Driver

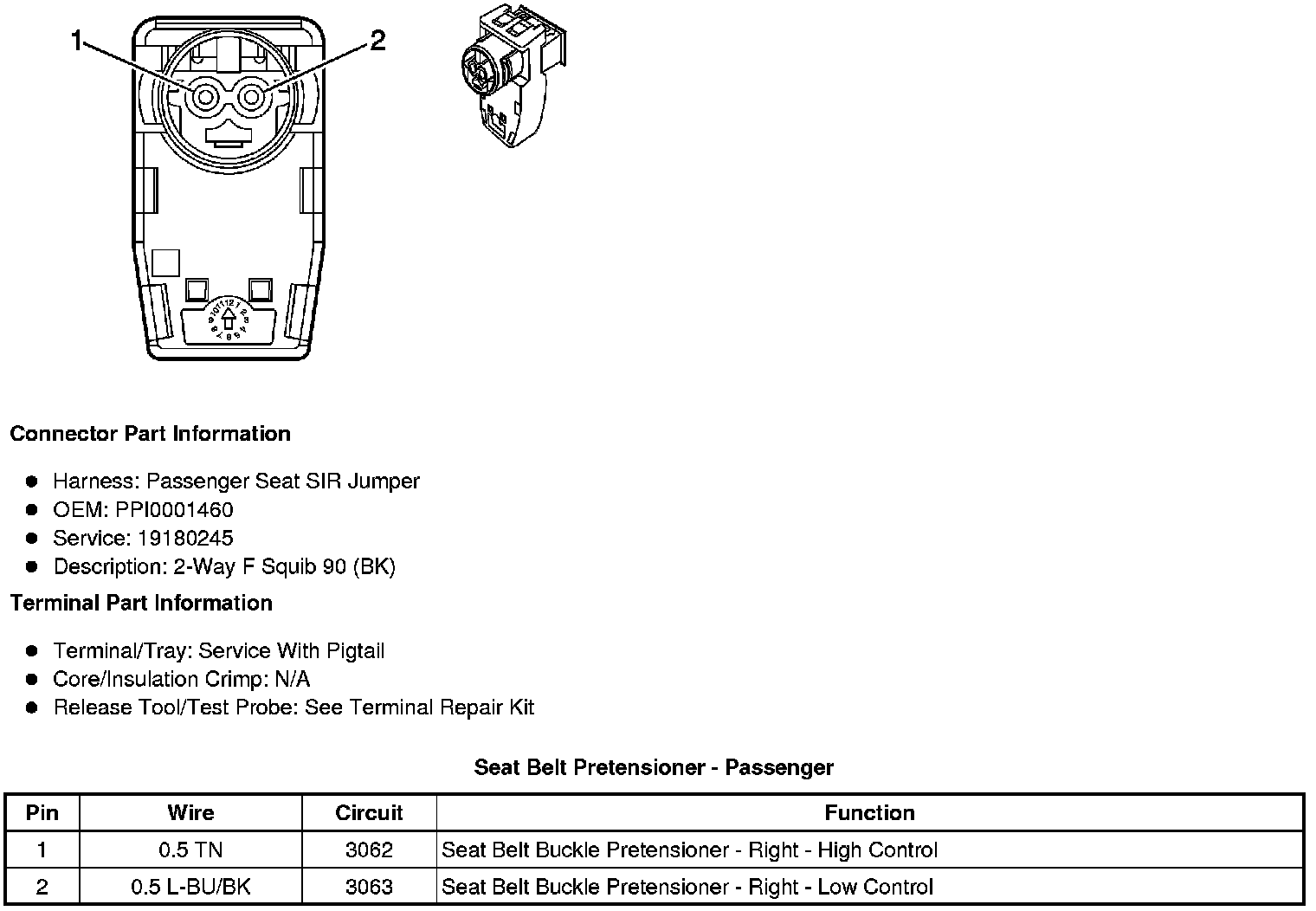

Seat Belt Pretensioner - Passenger
