Seat Temperature Control Module




Component Connector End Views

Heated Seat Control Module (KA1) X1

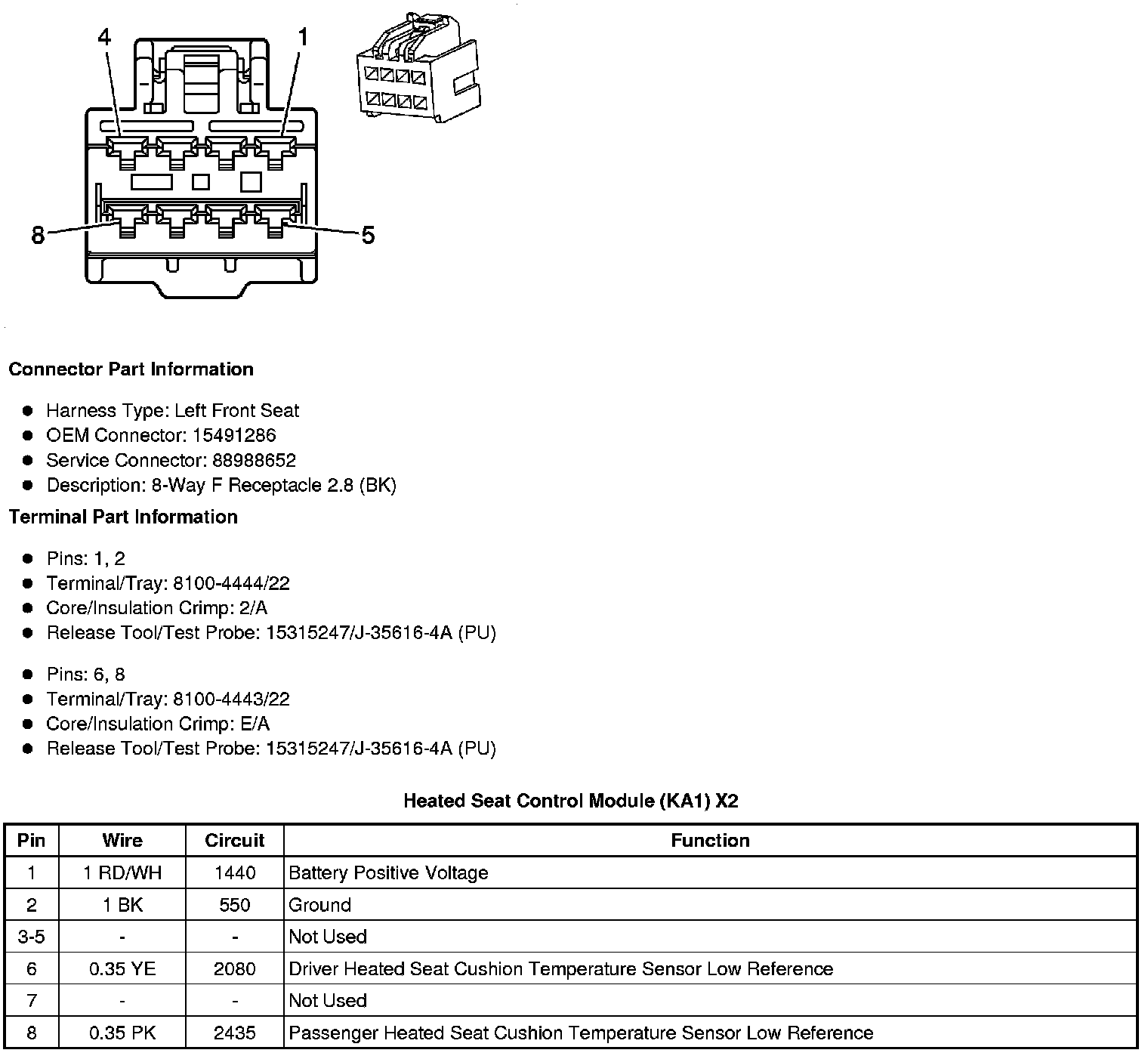

Heated Seat Control Module (KA1) X2





Heated Seat Control Module (KA1) X3





Heated Seat Control Module (KA1) X4
