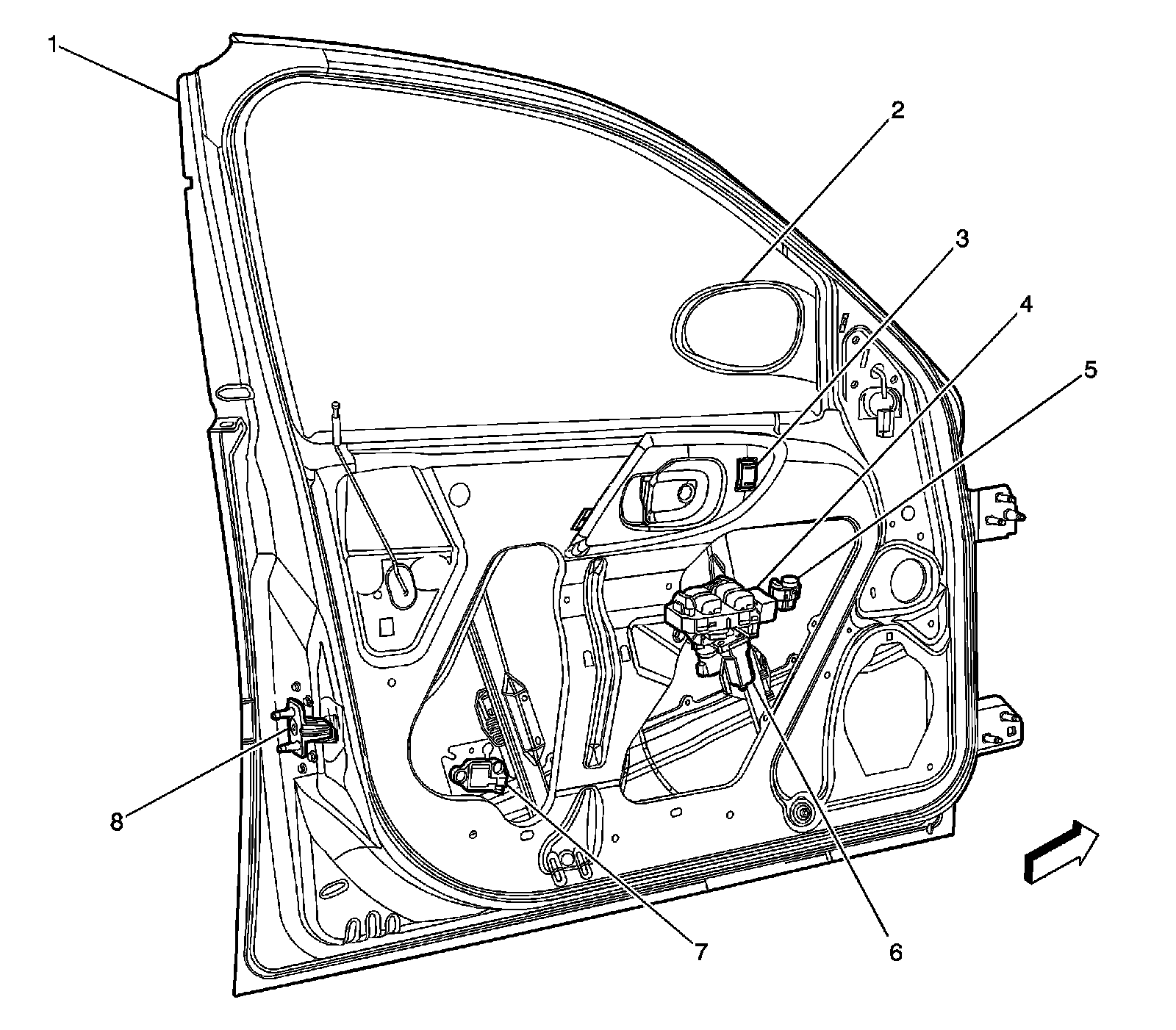

Driver Door Components

Door Component Views

Driver Door Components




1 - Door Frame
2 - Outside Rearview Mirror - Driver
3 - Door Lock Switch - Driver
4 - Window Switch - Driver
5 - Outside Rearview Mirror (ISRVM) Switch
6 - Window Motor - Driver
7 - Inflatable Restraint Side Impact Sensor (SIS) - Left
8 - Door Lock - Driver
