Power Seat Switch




Component Connector End Views

Seat Adjuster Switch - Driver (AG1)

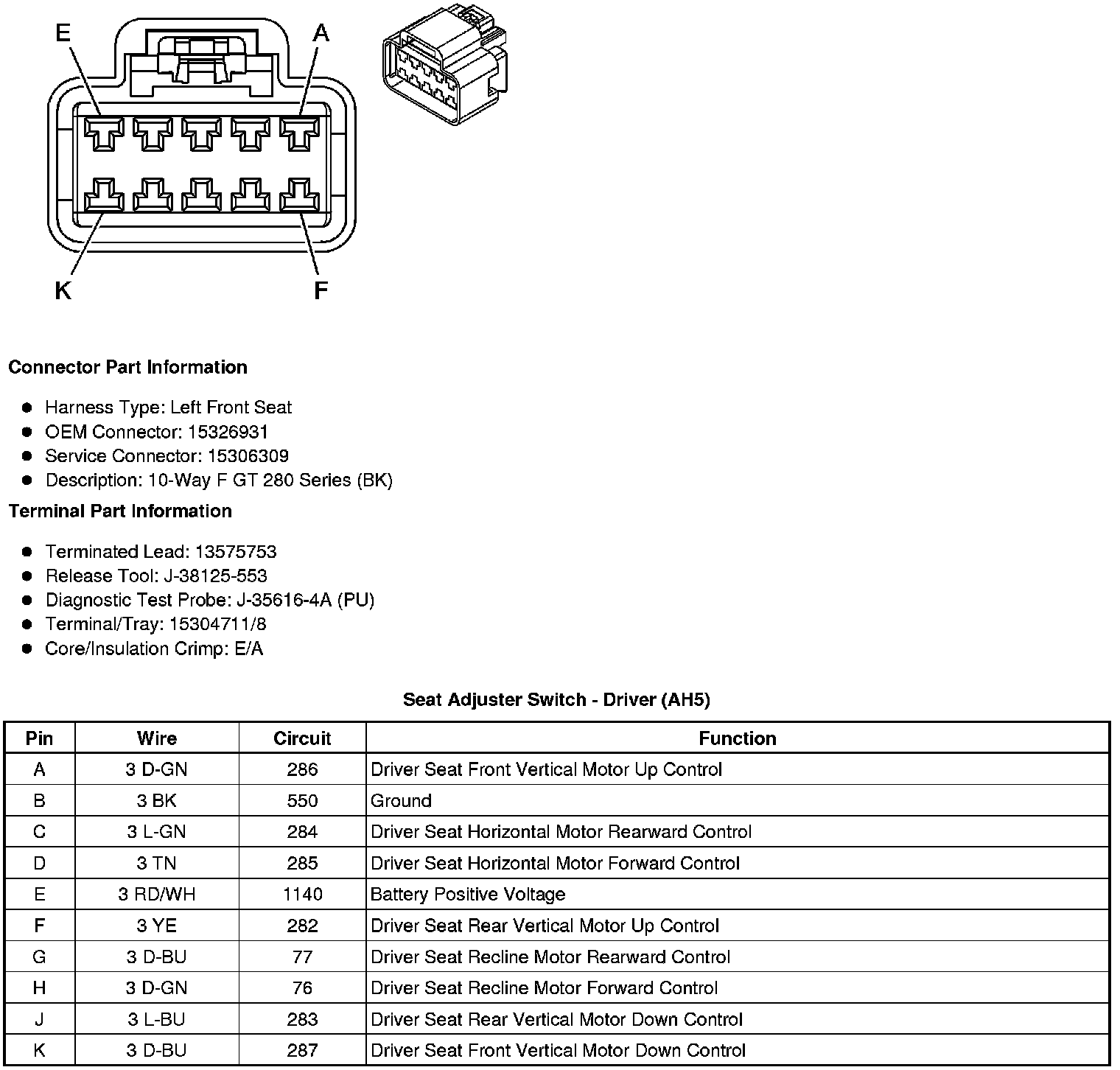

Seat Adjuster Switch - Driver (AH5)

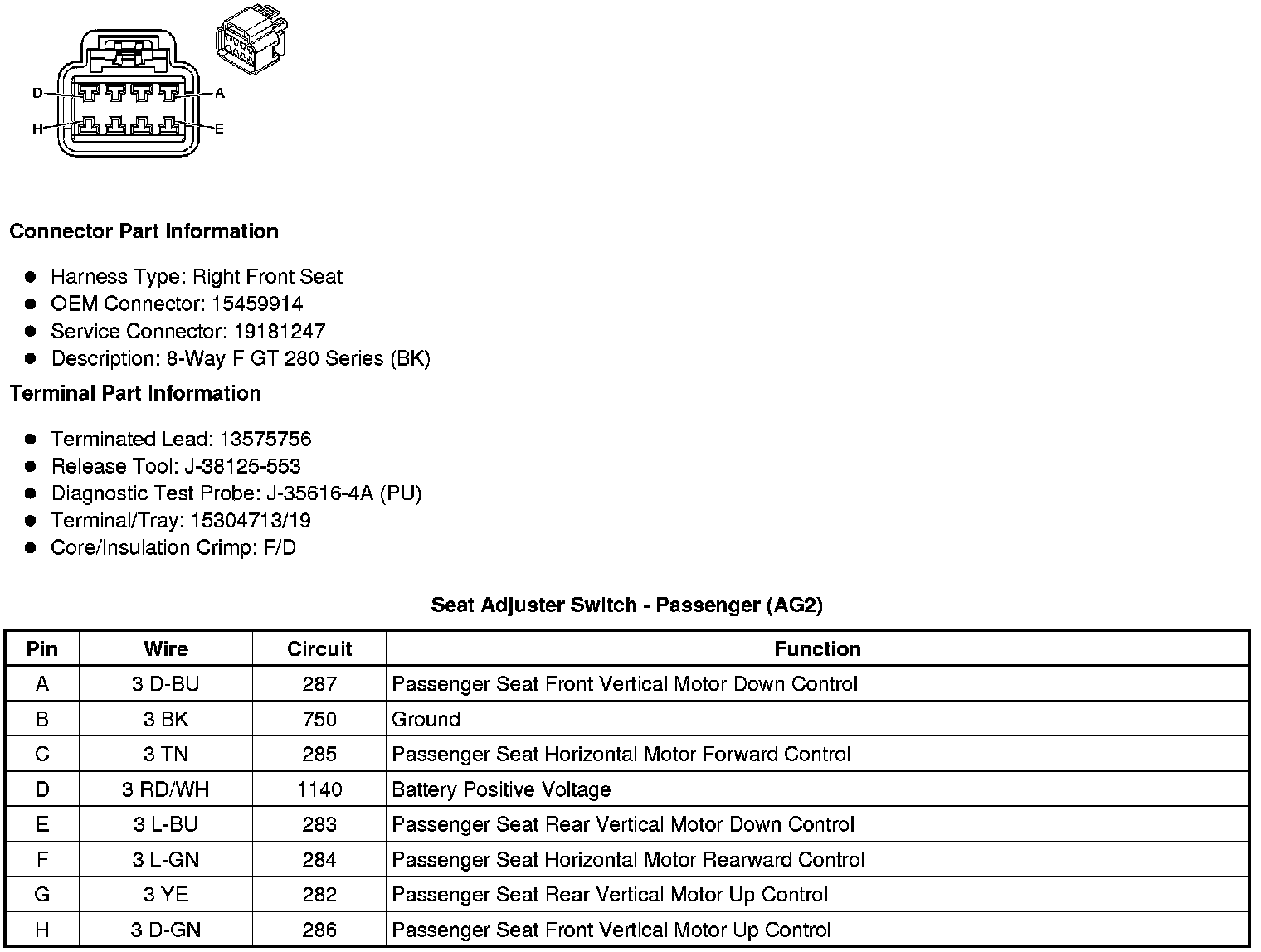

Seat Adjuster Switch - Passenger (AG2)
