Installation Procedure
Courtesy of GENERAL MOTORS CORP.

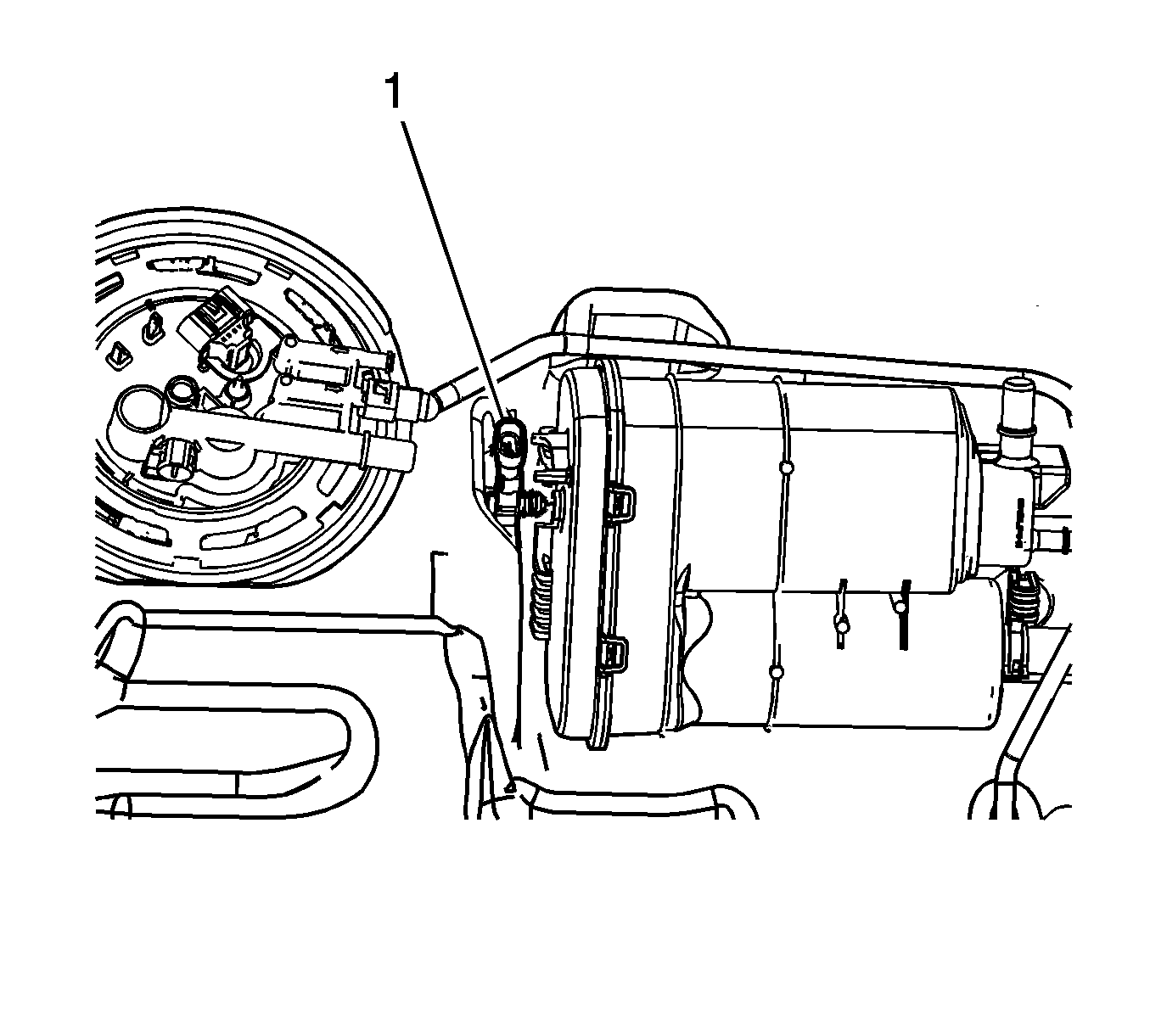

- Lubricate the fuel pressure seal with a very small amount of clean engine oil.
- Install the fuel pressure sensor (1) to the EVAP canister.
Courtesy of GENERAL MOTORS CORP.

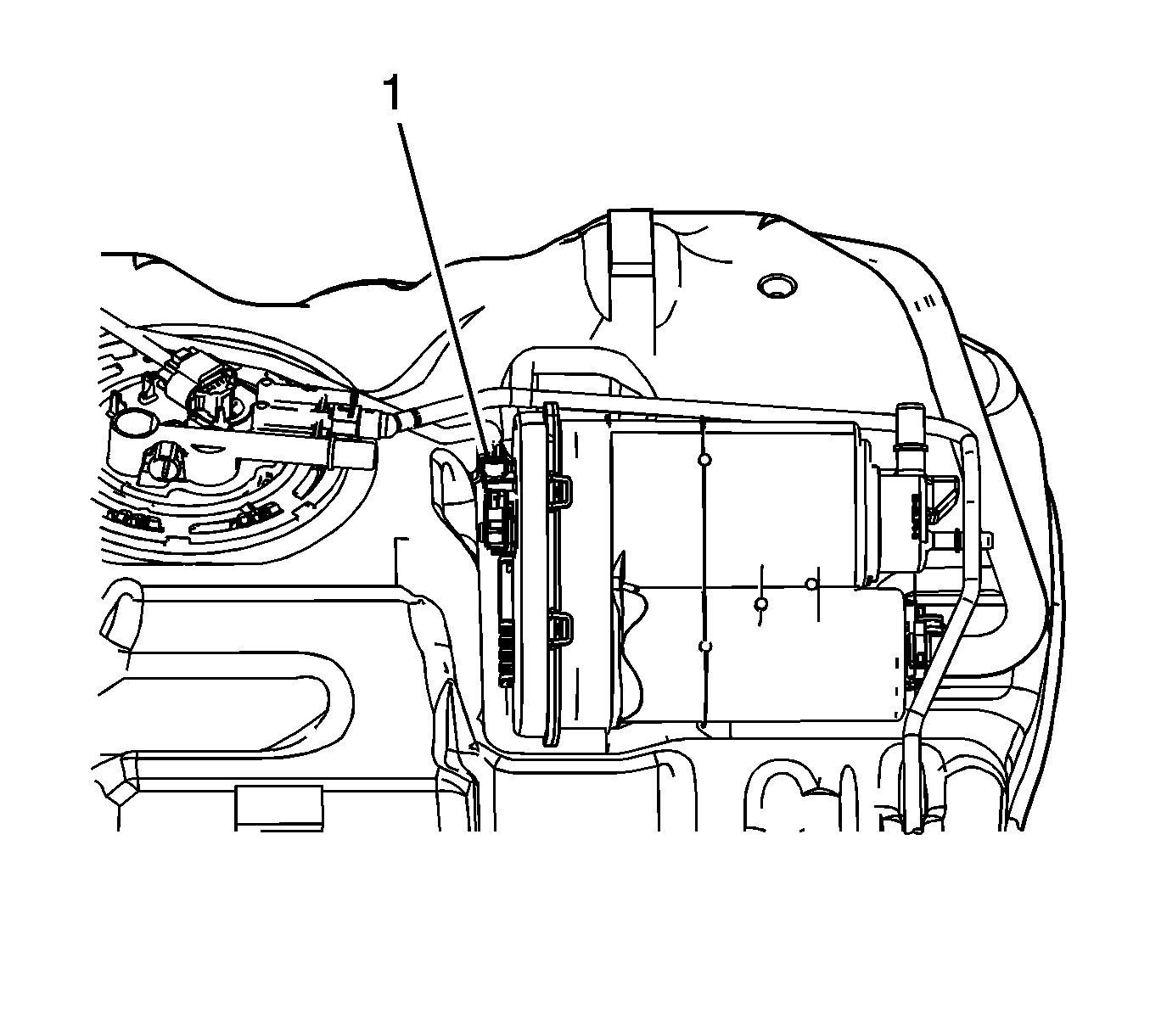

- Connect the fuel tank wiring harness electrical connector to the fuel pressure sensor (1).
- Install the fuel tank. Refer to Fuel Tank Replacement (NC7) or Fuel Tank Replacement (NU6) .
