Radio/Navigation System Wiring Schematics

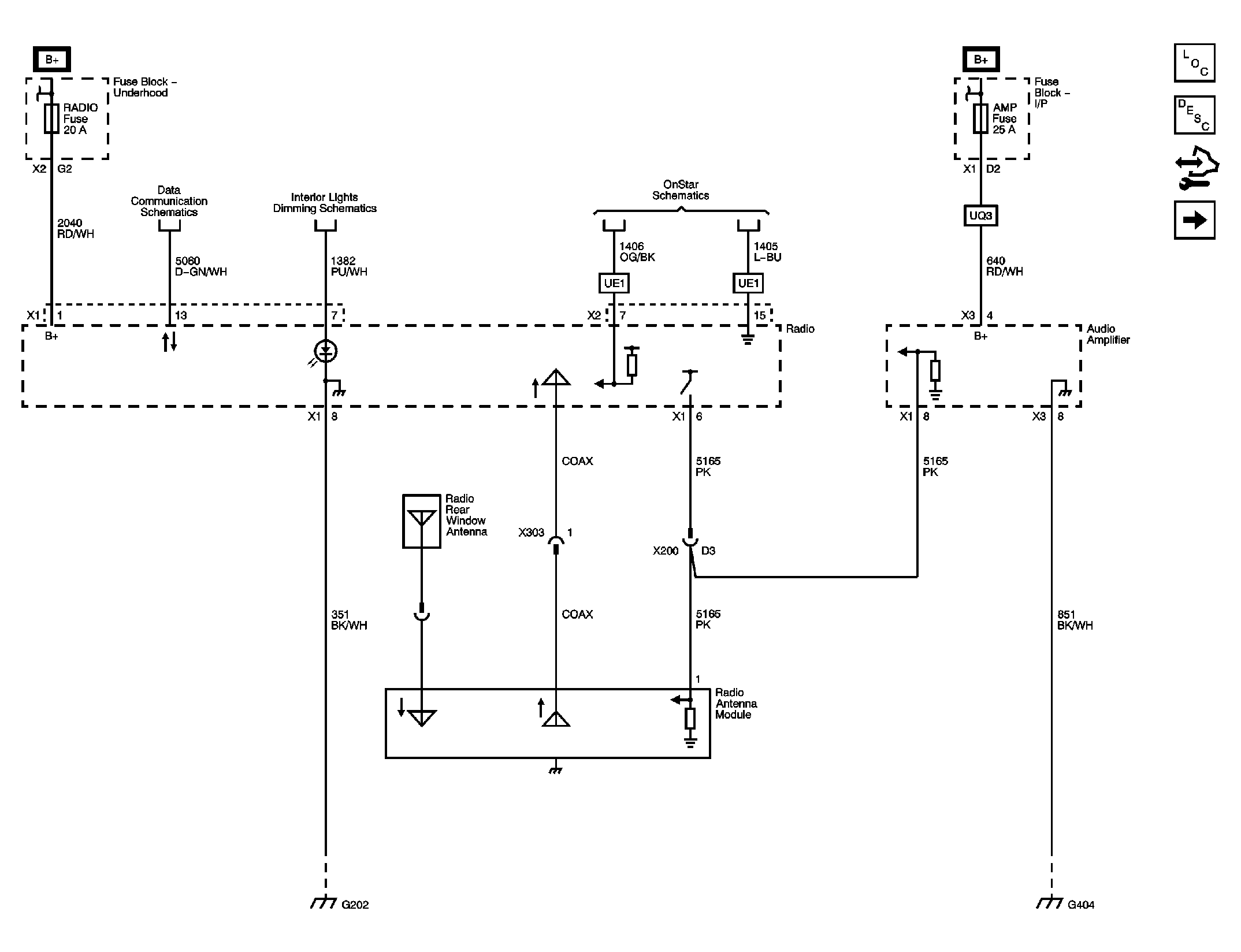

Fig 1: Radio/Navigation System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

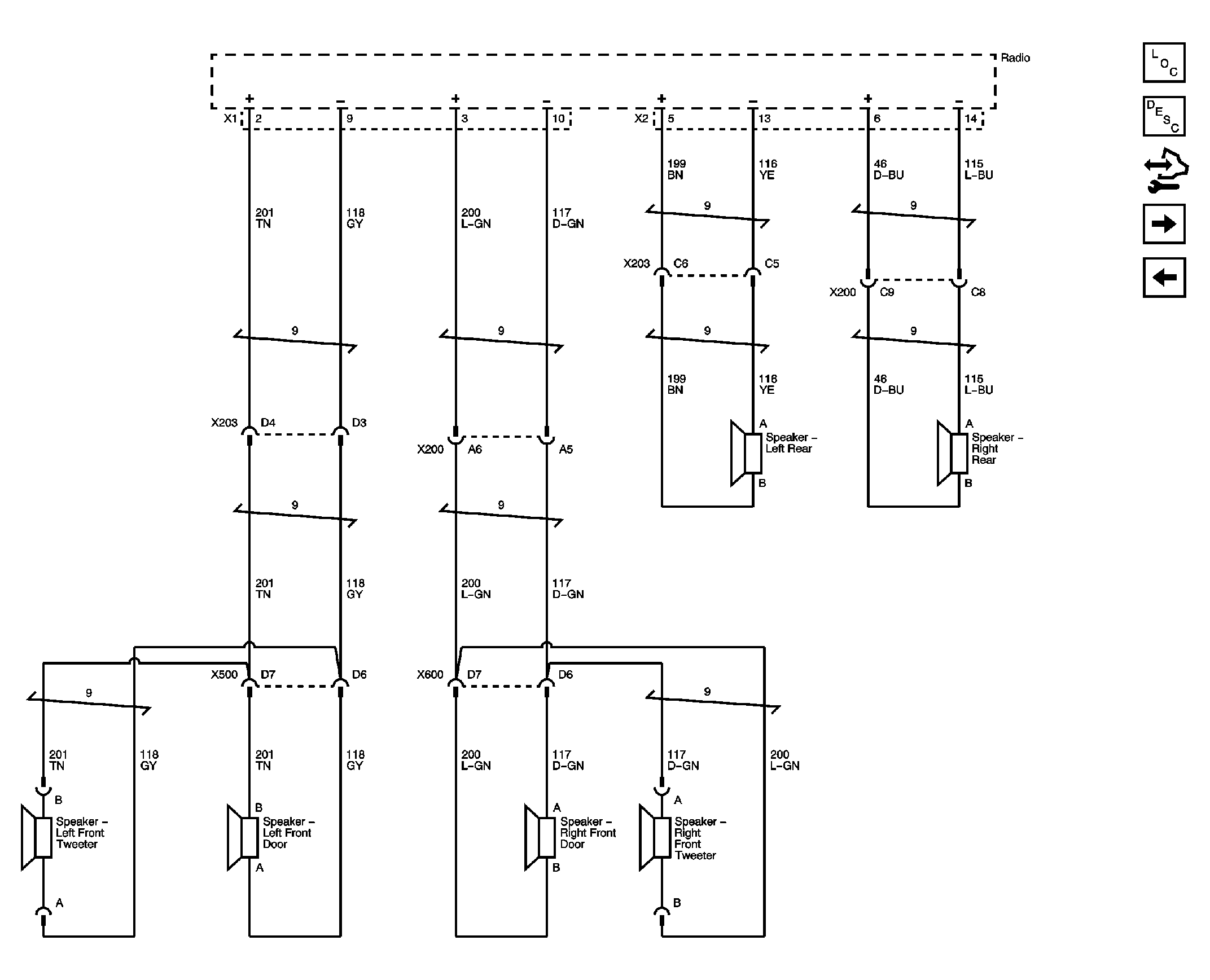

Fig 2: Radio to Speakers Wiring Schematic (UW6)

Courtesy of GENERAL MOTORS CORP.

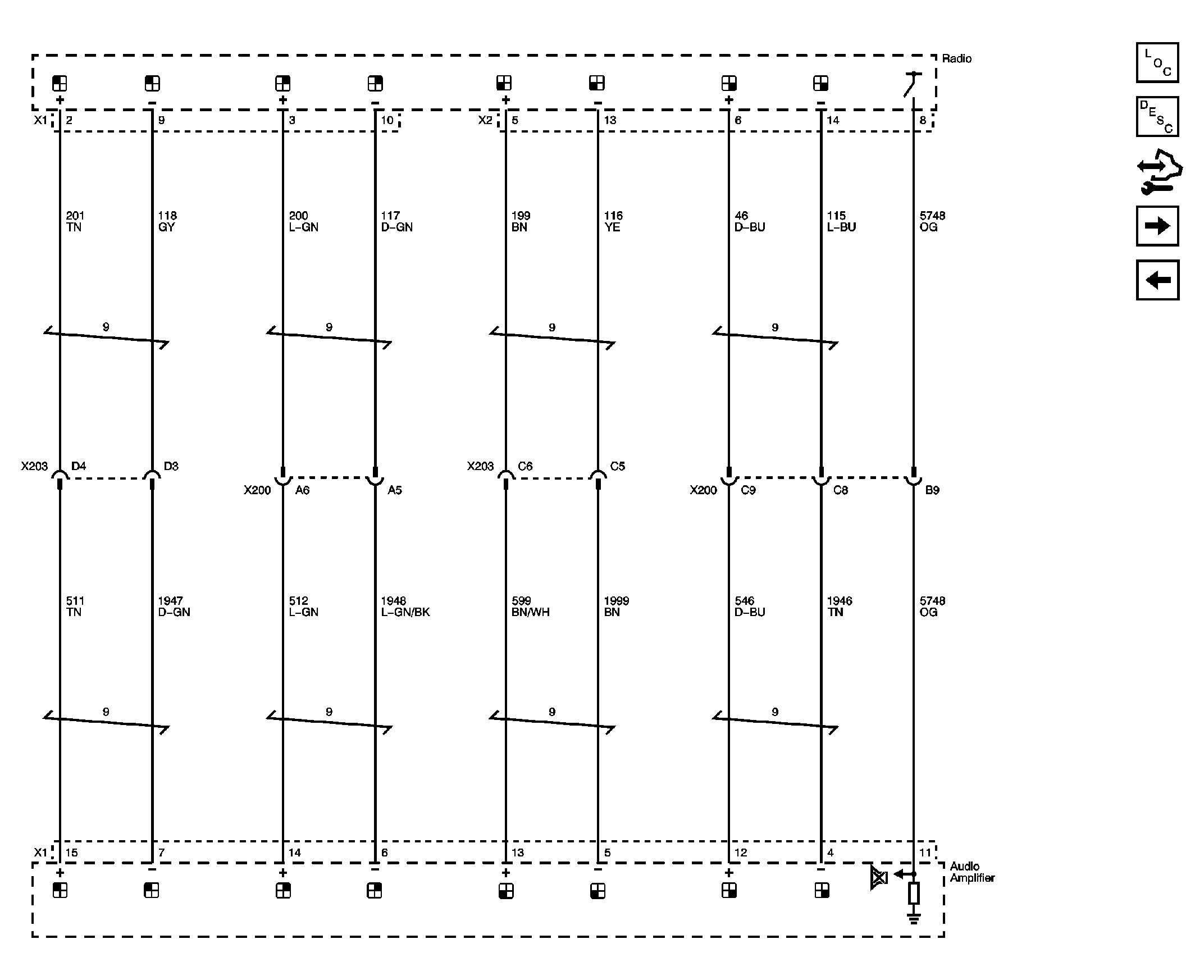

Fig 3: Audio Signal Communications Wiring Schematic (UQ3)

Courtesy of GENERAL MOTORS CORP.

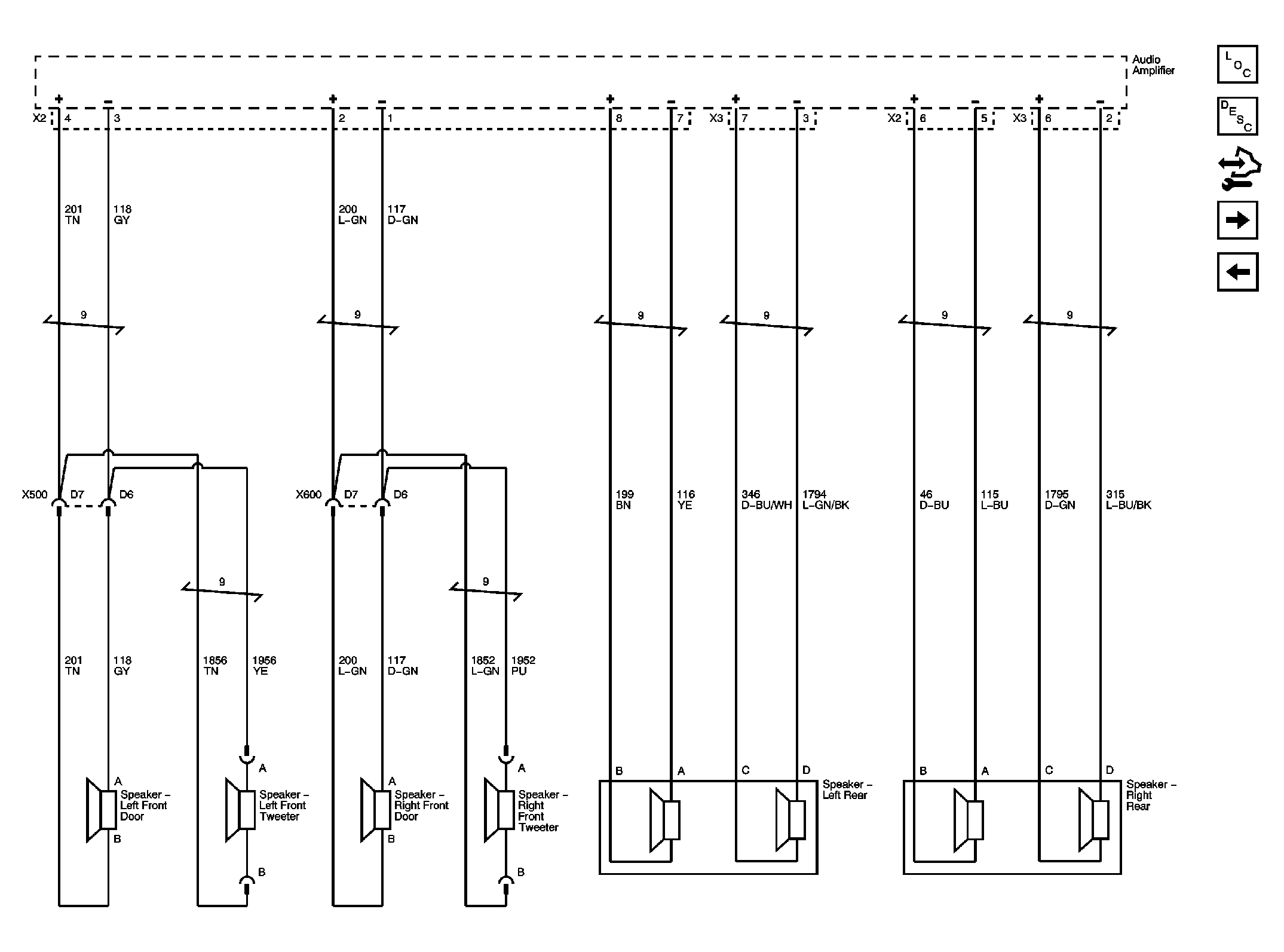

Fig 4: Audio Amplifier to Speakers Wiring Schematic (UQ3)

Courtesy of GENERAL MOTORS CORP.

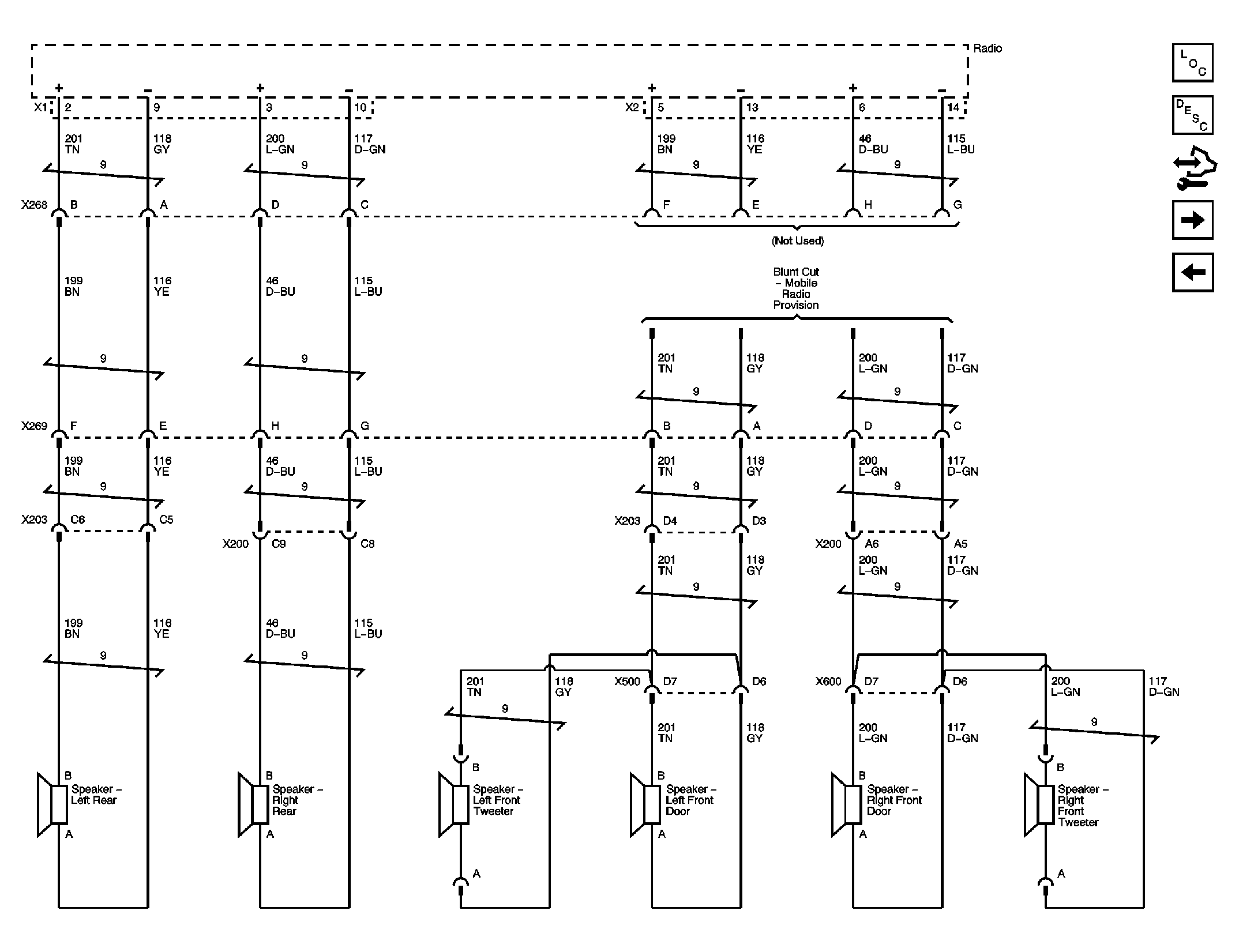

Fig 5: Radio to Speakers Wiring Schematic (9C1/9C3 w/o WX7)

Courtesy of GENERAL MOTORS CORP.

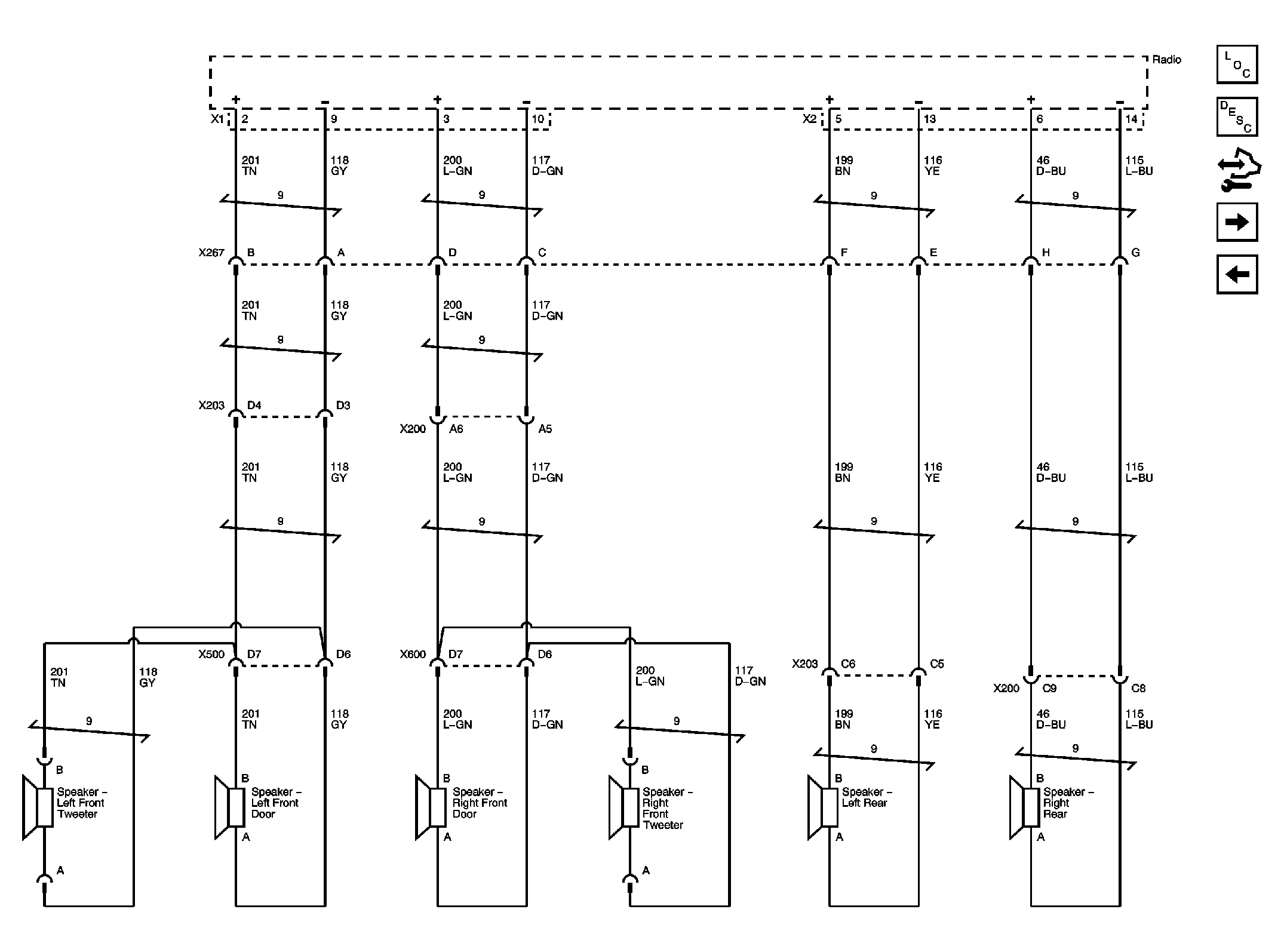

Fig 6: Radio to Speakers Wiring Schematic (9C1/9C3 and WX7)

Courtesy of GENERAL MOTORS CORP.

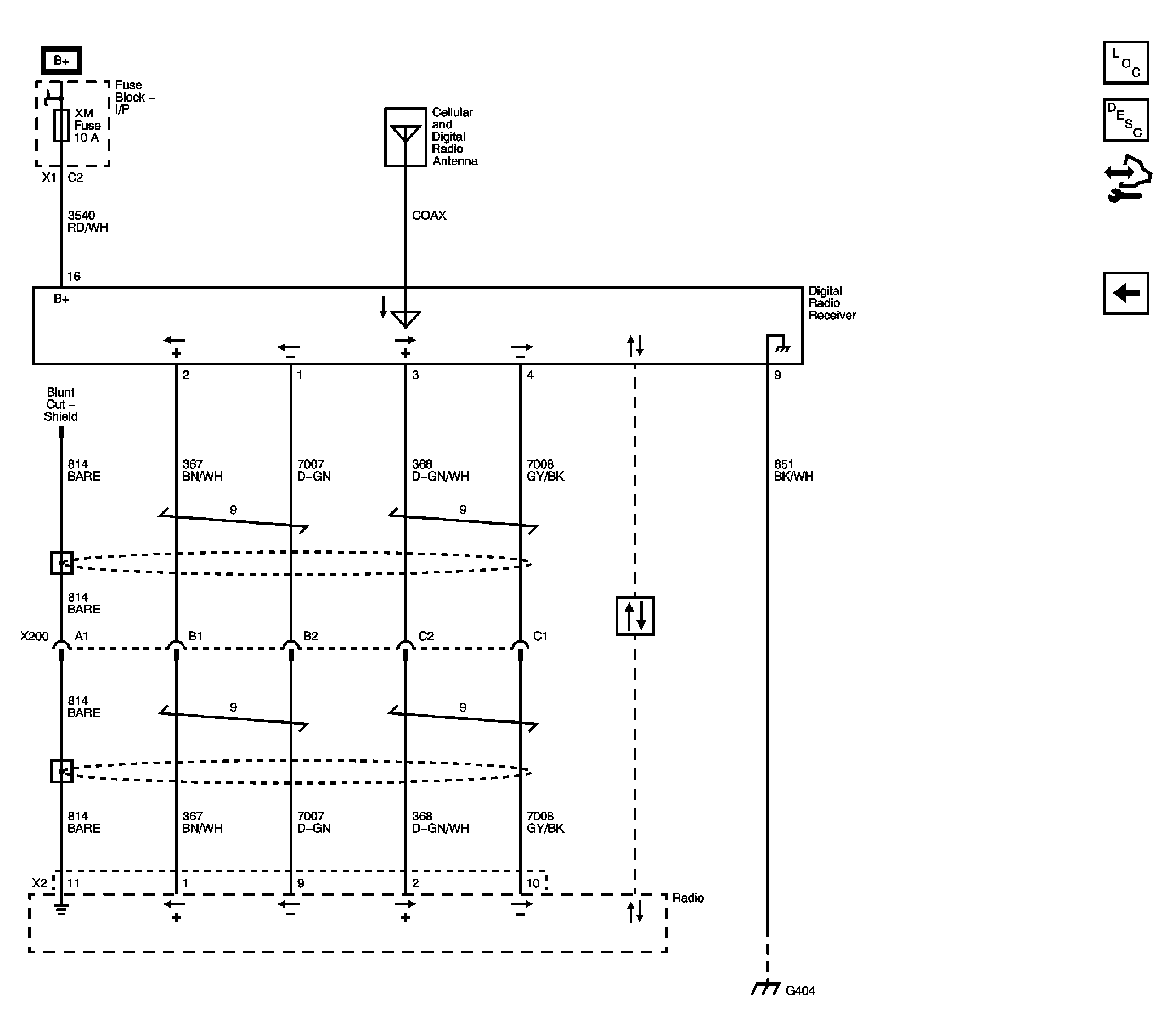

Fig 7: Satellite Radio Wiring Schematic (U2K)

Courtesy of GENERAL MOTORS CORP.
