Fuel Injector




Component Connector End Views

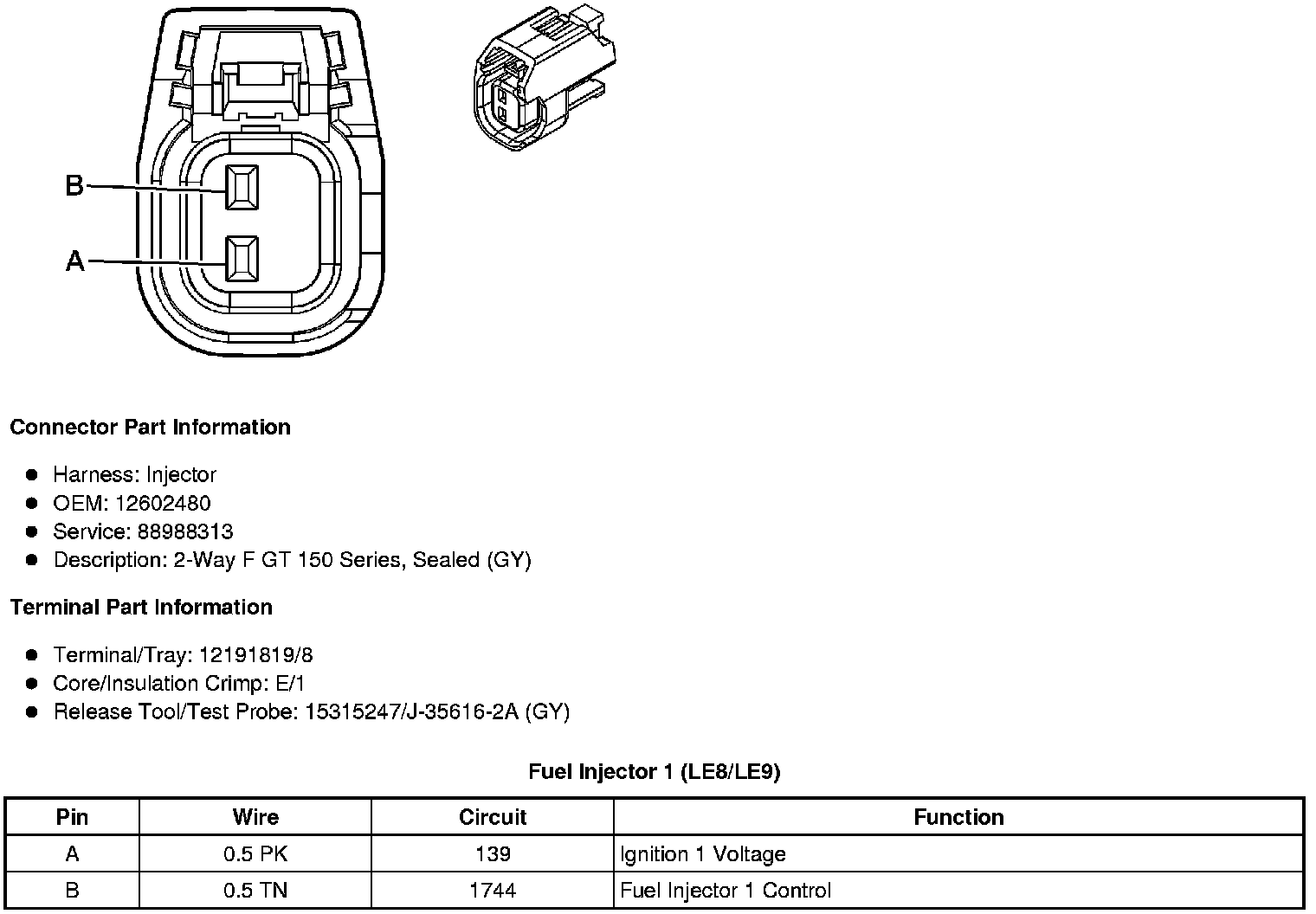

Fuel Injector 1 (LE8/LE9)

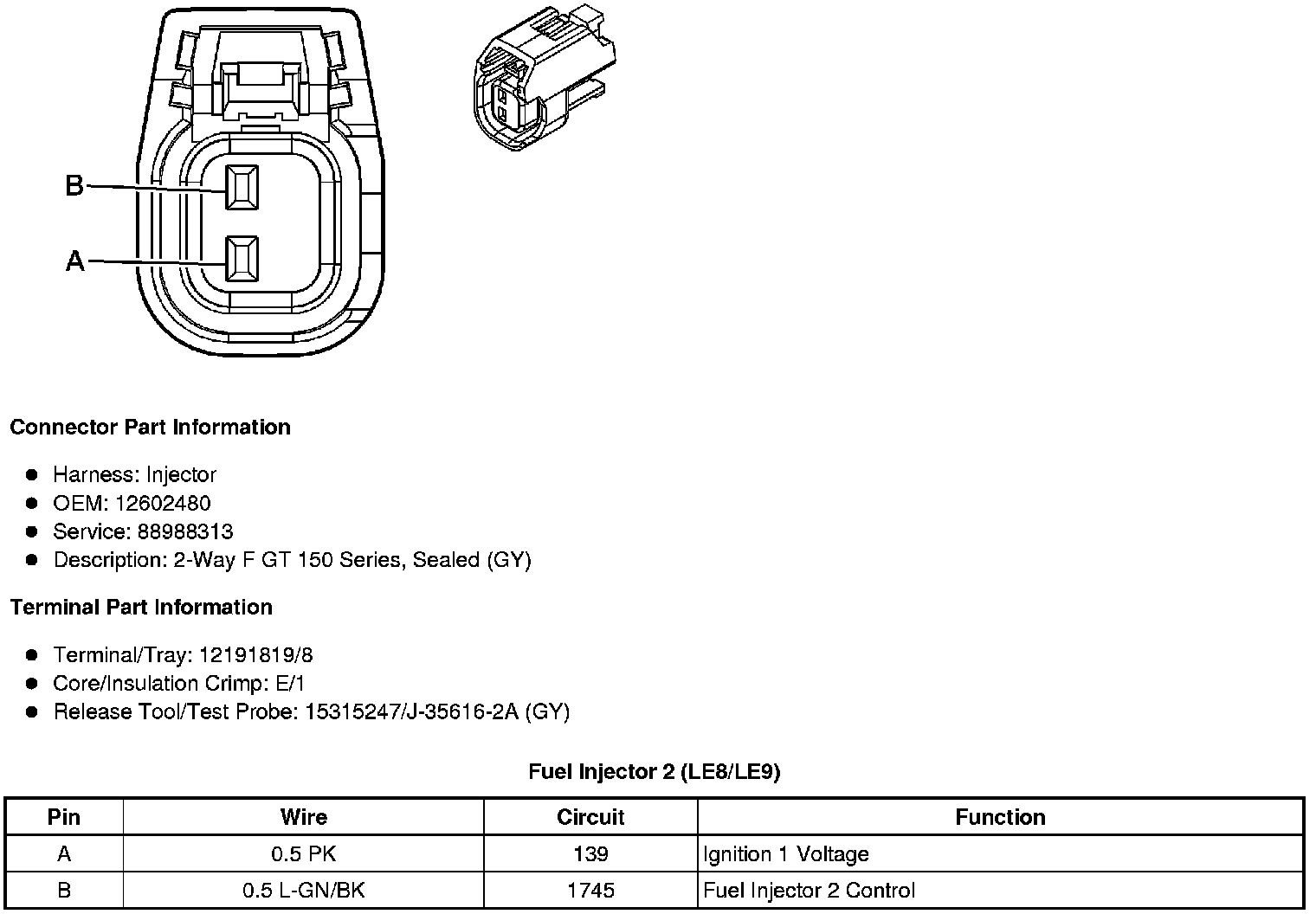

Fuel Injector 2 (LE8/LE9)

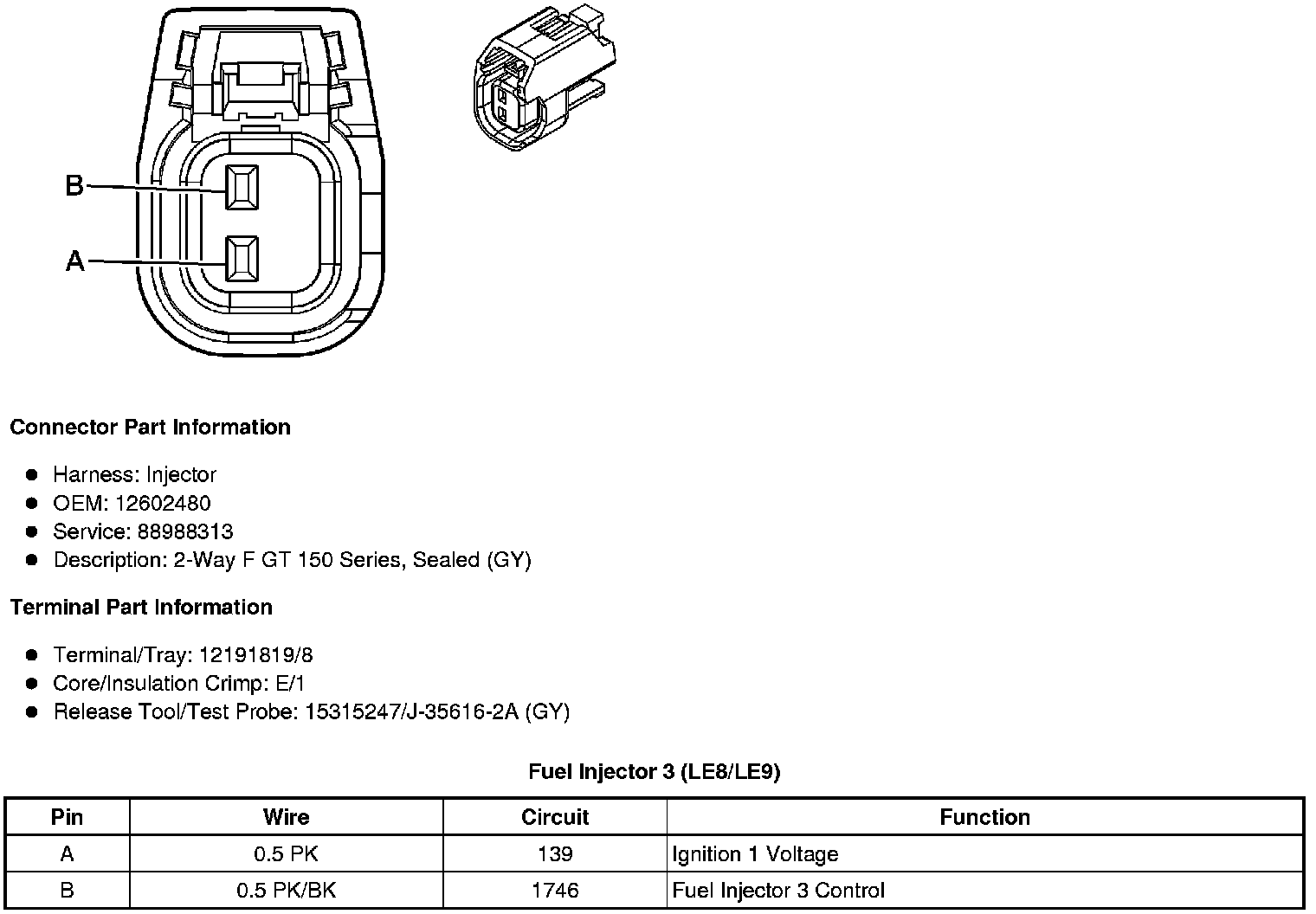

Fuel Injector 3 (LE8/LE9)

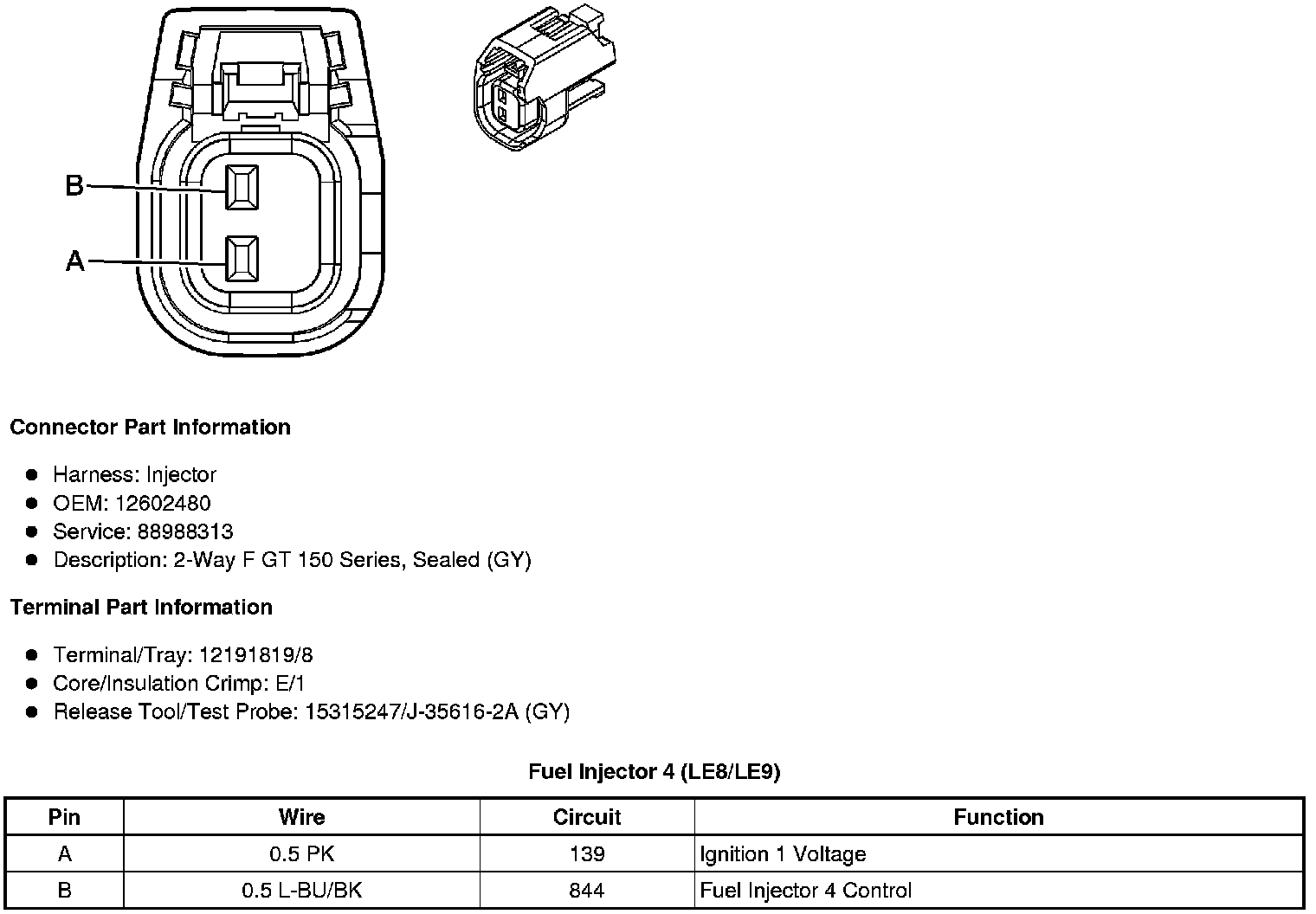

Fuel Injector 4 (LE8/LE9)
