Liftgate Components

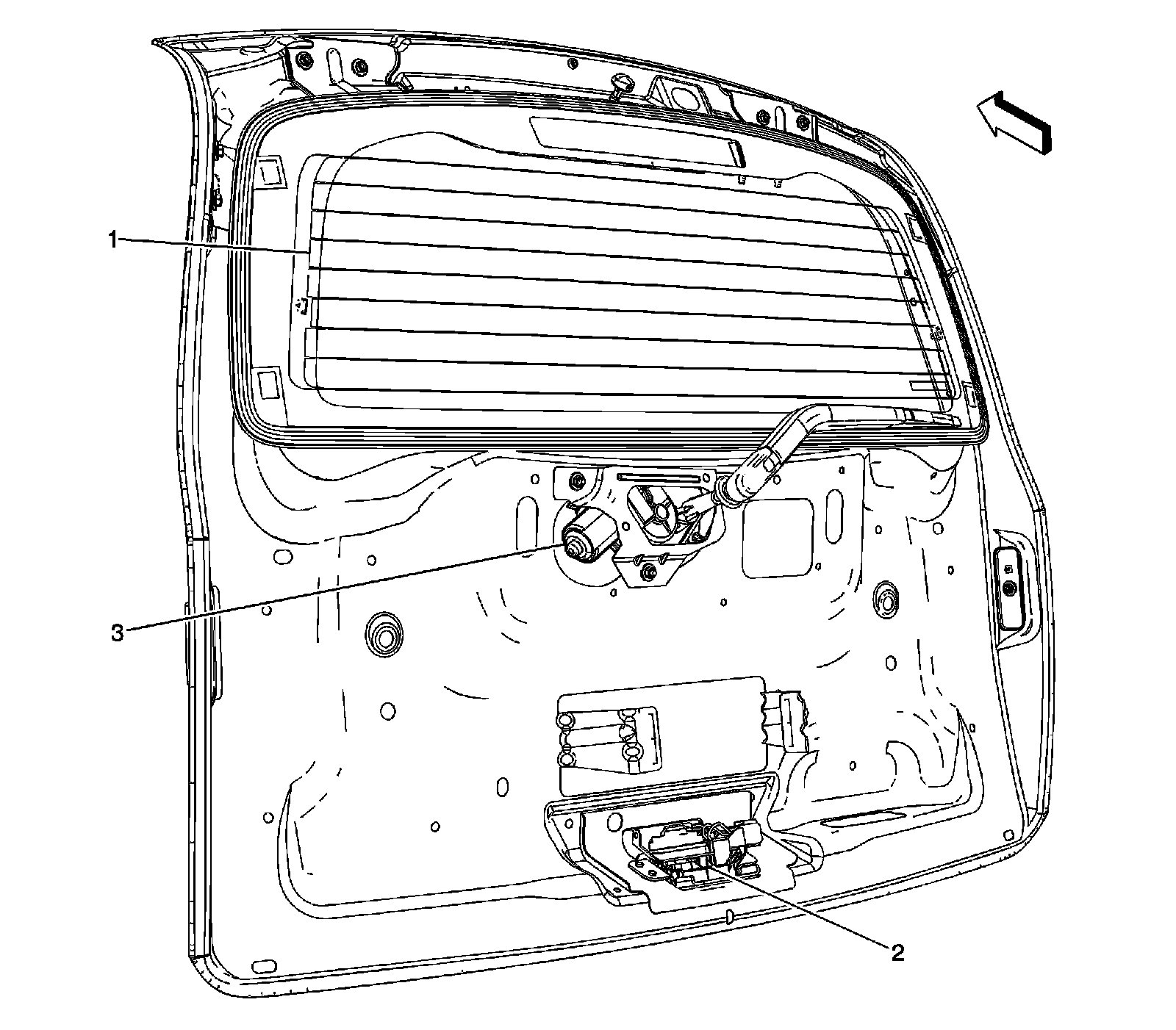

Luggage Compartment/Rear of Vehicle Component Views

Liftgate Components




1 - Rear Window Defogger Grid
2 - Door Latch - Liftgate
3 - Rear Window Wiper Motor
