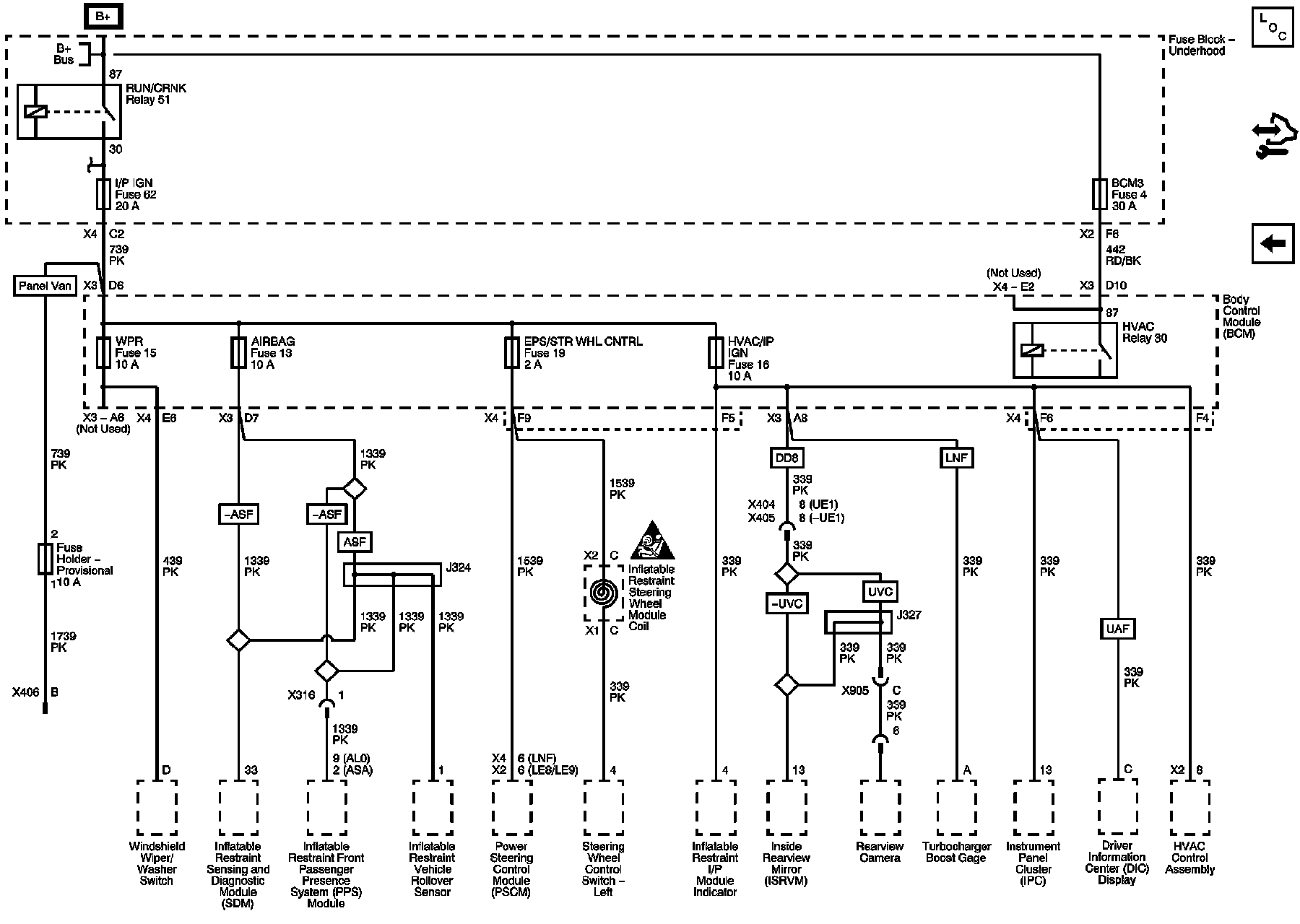

Power Distribution Schematic 8




Power Distribution Schematics

AIRBAG, BCM3, EPS/STR WHL CNTRL, HVAC/IP IGN, I/P IGN, and WPR Fuses
