Chevrolet
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Schematics
>>
Power Distribution Schematic 3
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

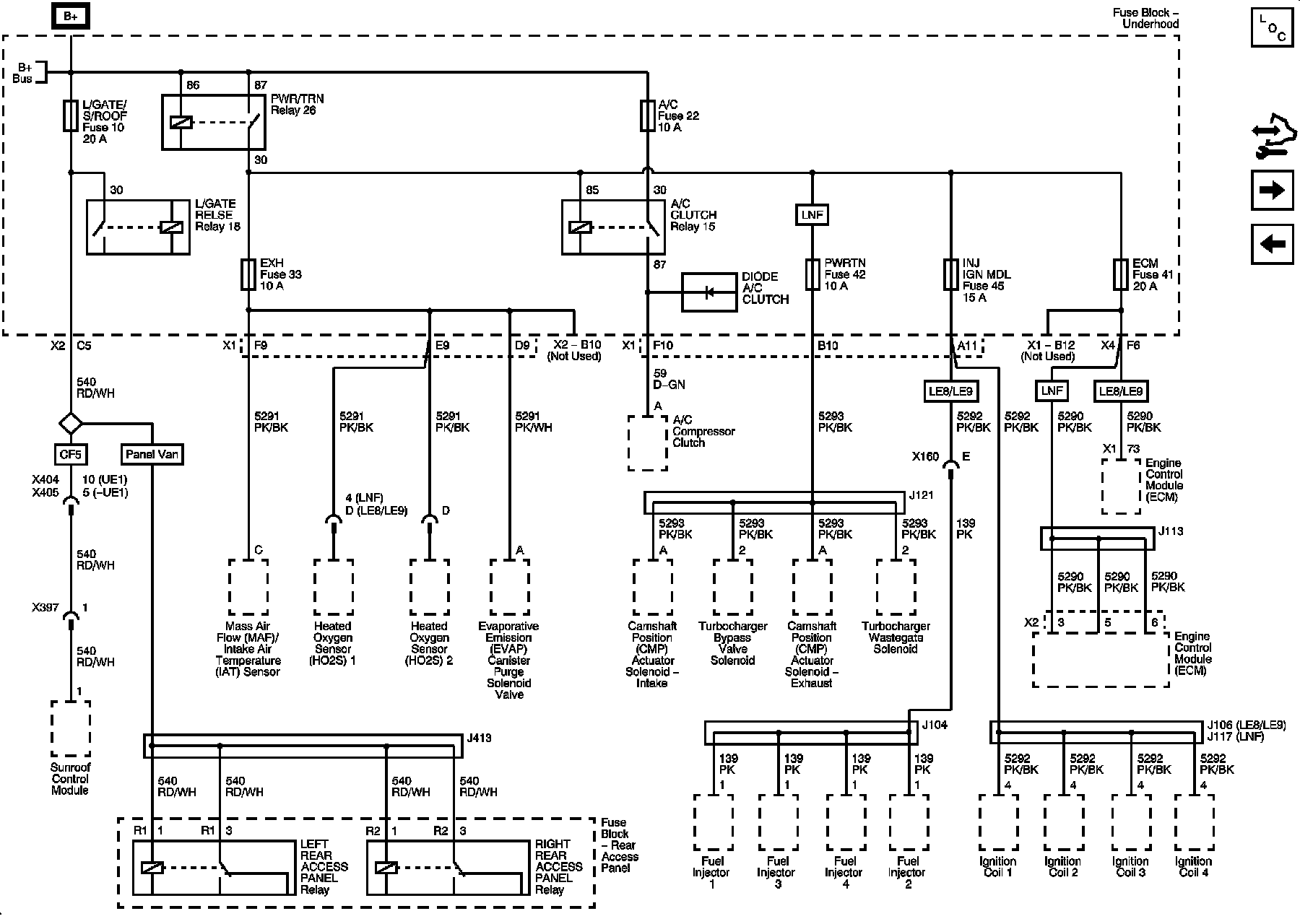

Power Distribution Schematic 3
Power Distribution Schematics
A/C, ECM , EXH, INJ IGN MDL, L/GATE/S ROOF, and PWRTN Fuses
