Release Systems Schematics




Release Systems Schematics

Liftgate

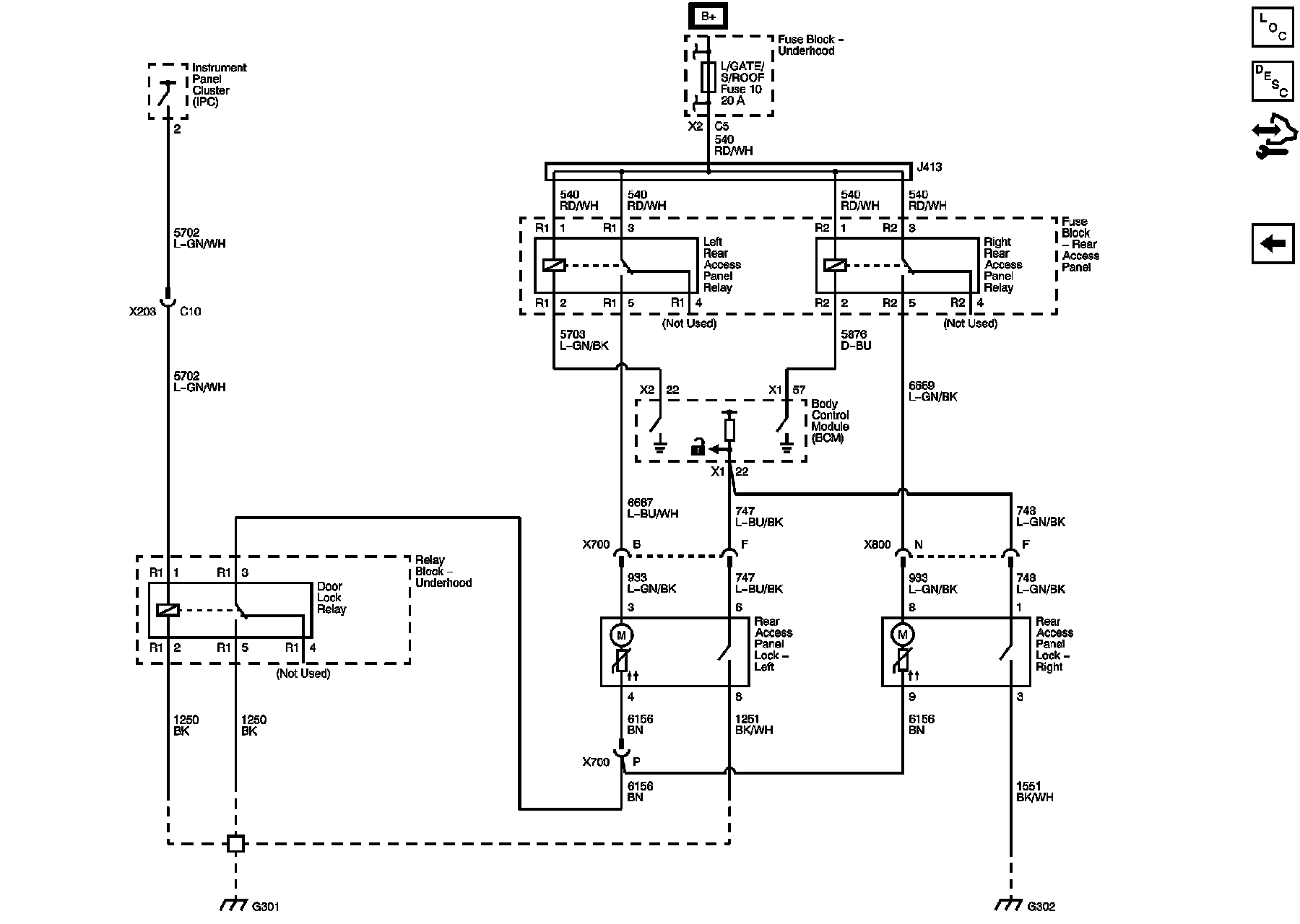

Rear Access Panel - Panel Van (1 of 2)





Rear Access Panel - Panel Van (2 of 2)
