Manifold Pressure/Vacuum Sensor: Diagrams

Component Connector End Views

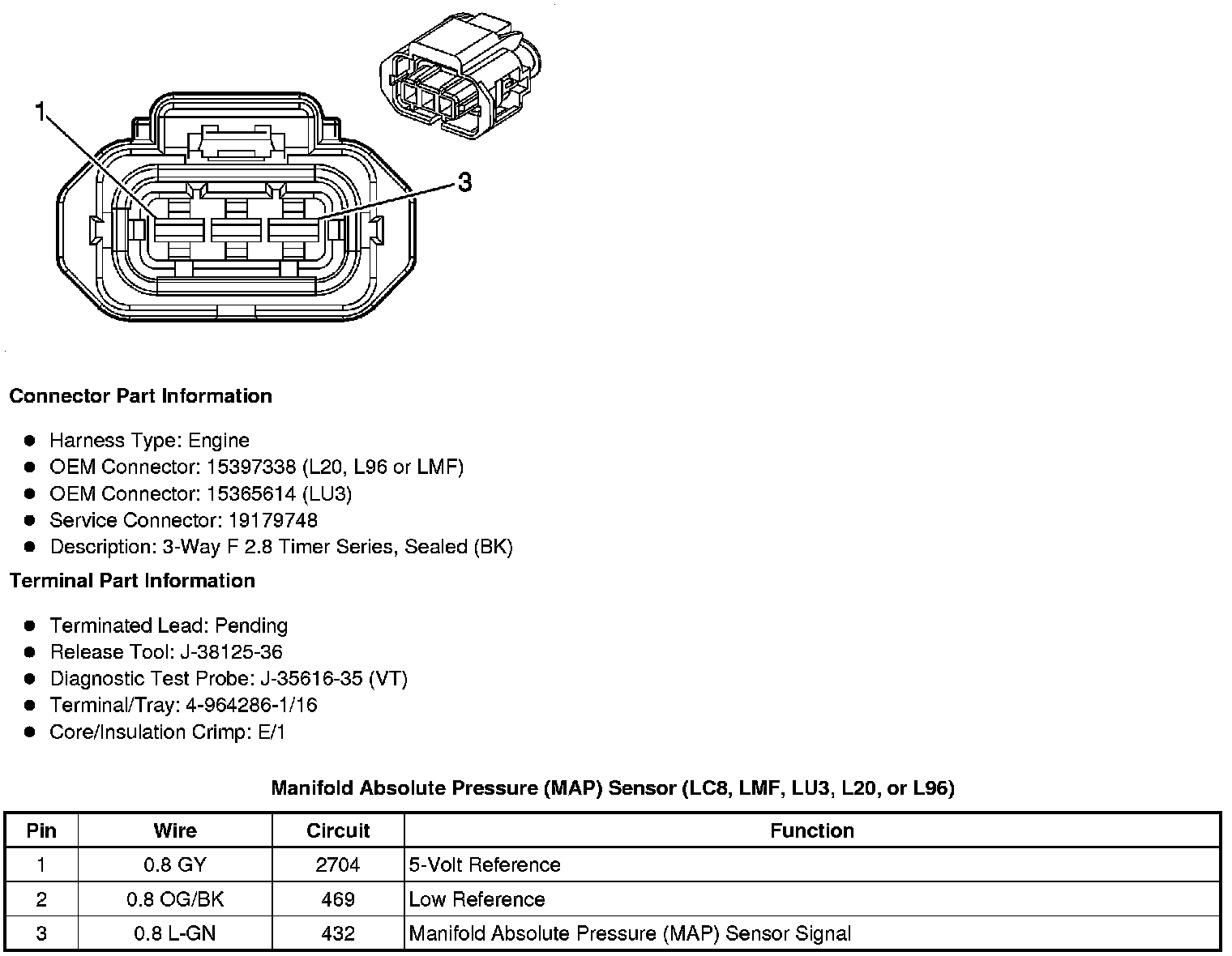

Manifold Absolute Pressure (MAP) Sensor (LC8, LMF, LU3, L20, or L96)

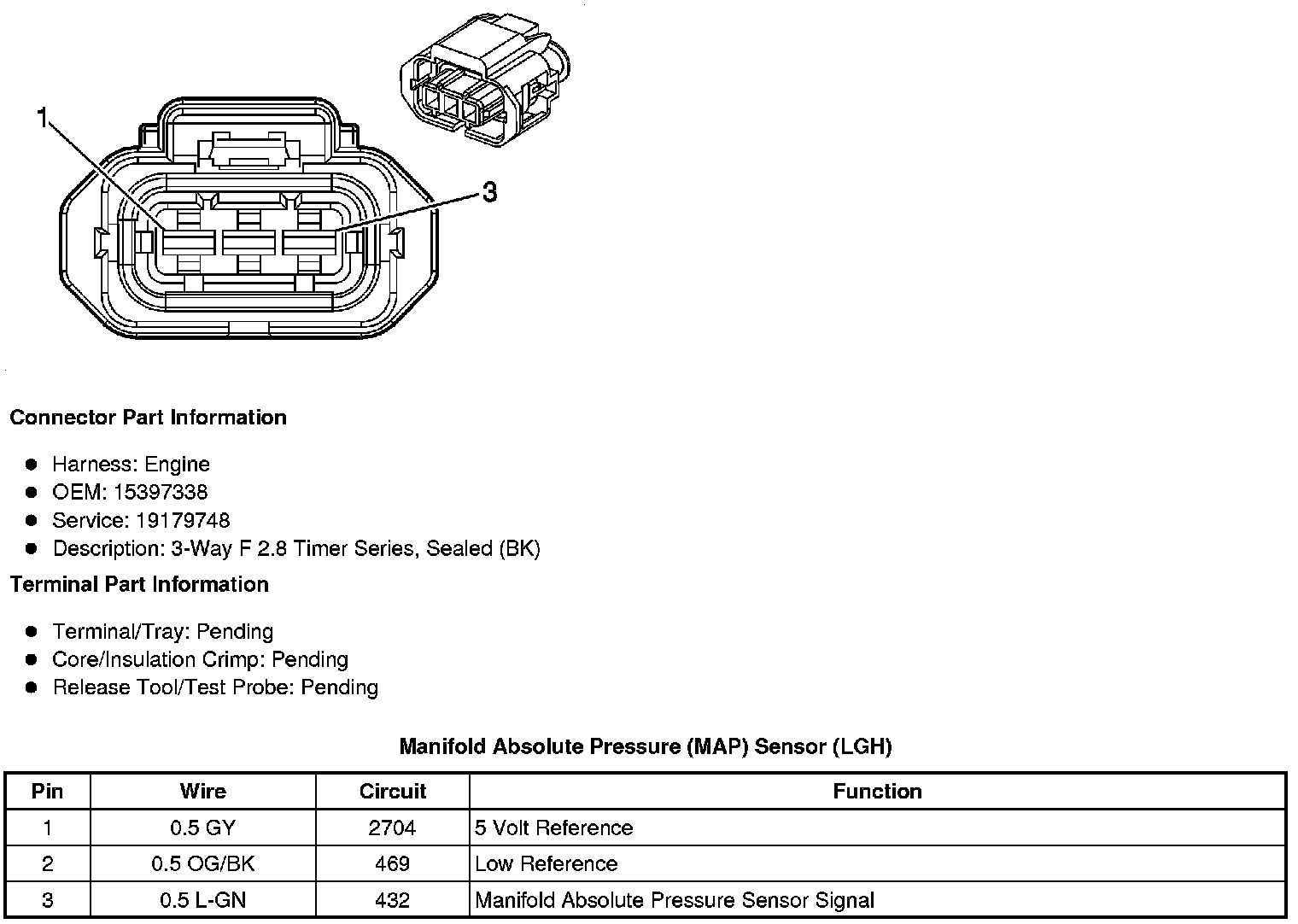

Manifold Absolute Pressure (MAP) Sensor (LGH)
