Body Control Systems




Body Control System Schematics

BCM Power, Ground and Serial Data

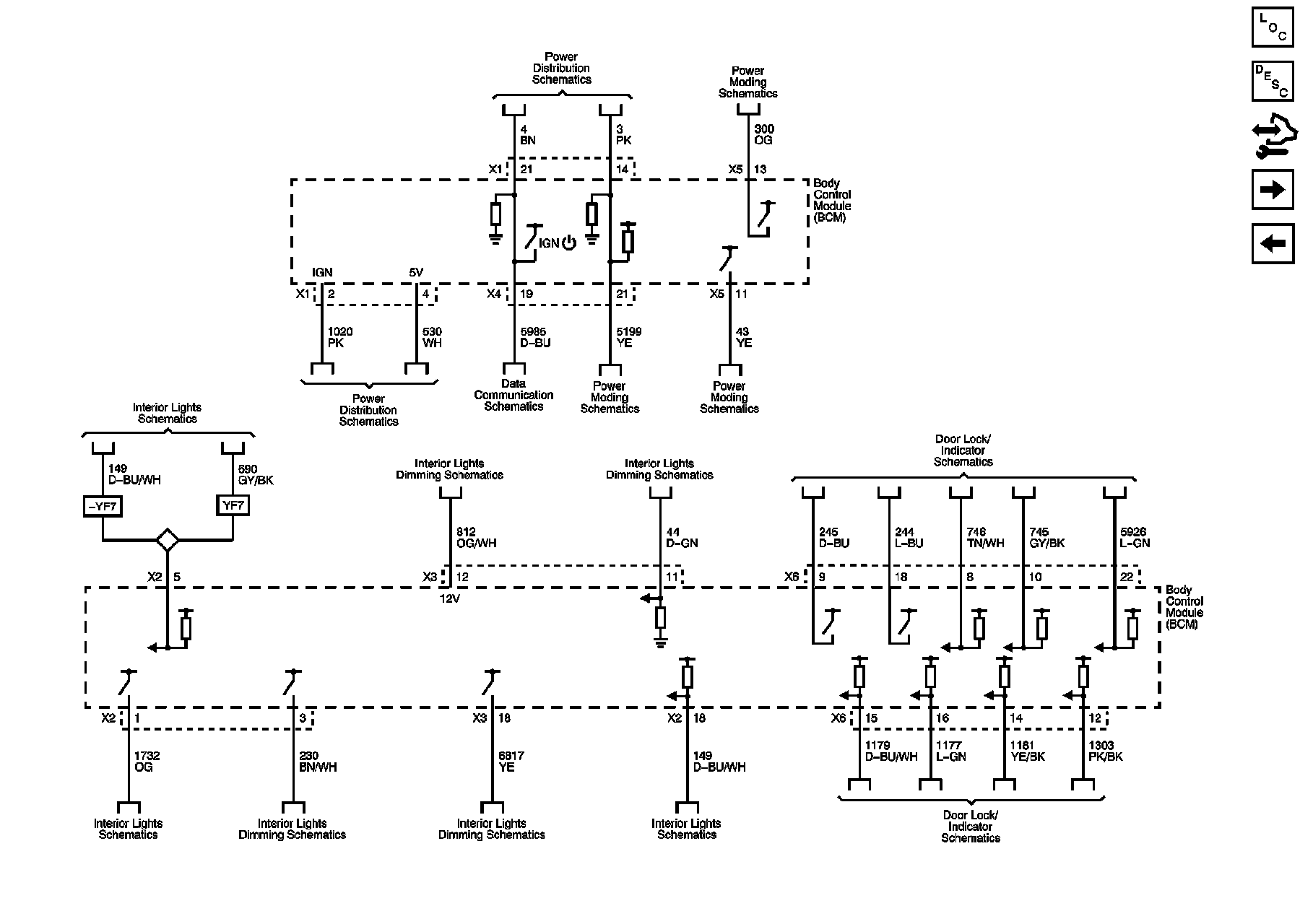

BCM Inputs and Outputs (1 of 4)

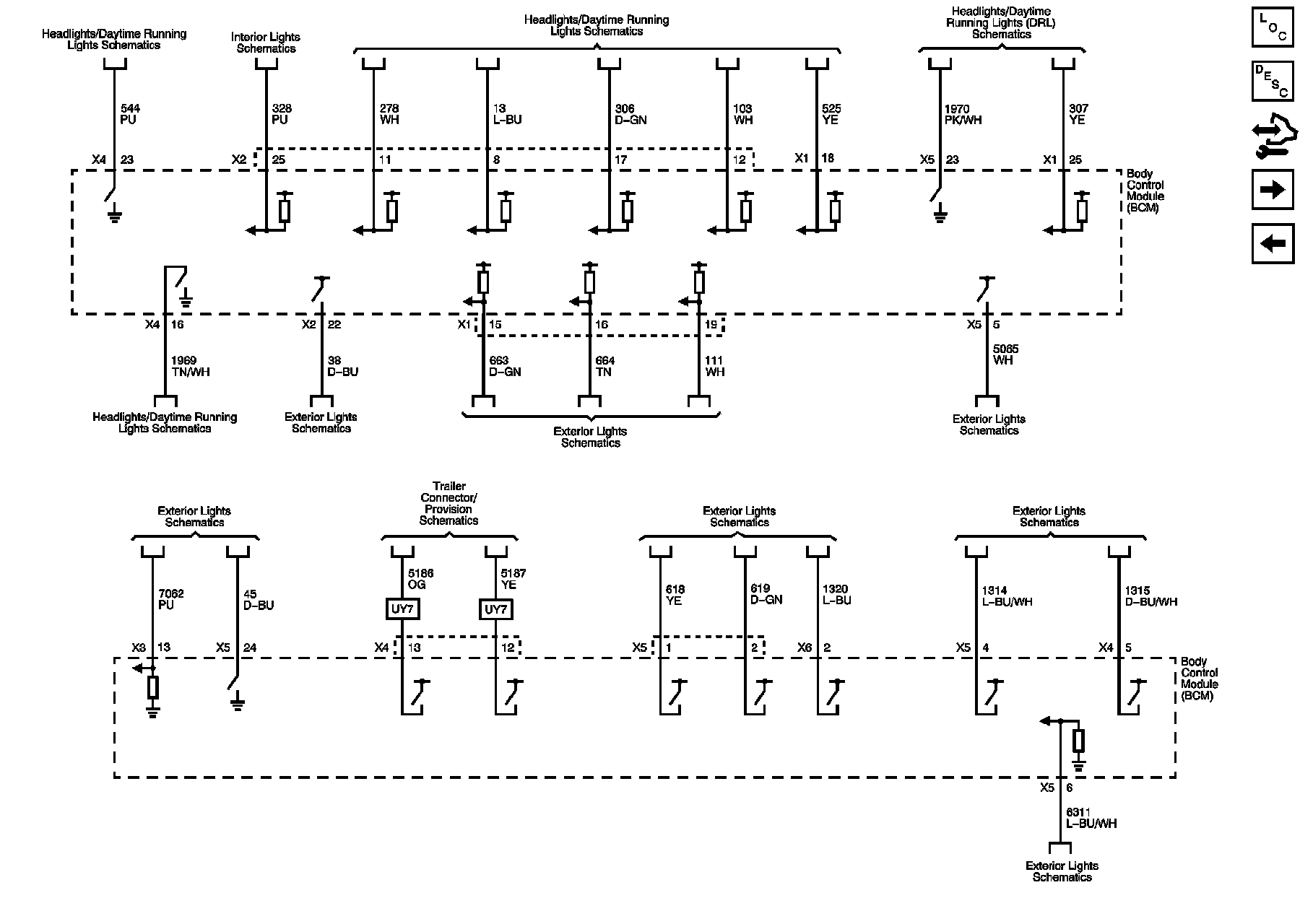

BCM Inputs and Outputs (2 of 4)





BCM Inputs and Outputs (3 of 4)





BCM Inputs and Outputs (4 of 4)
