Intake Air Heater




Component Connector End Views

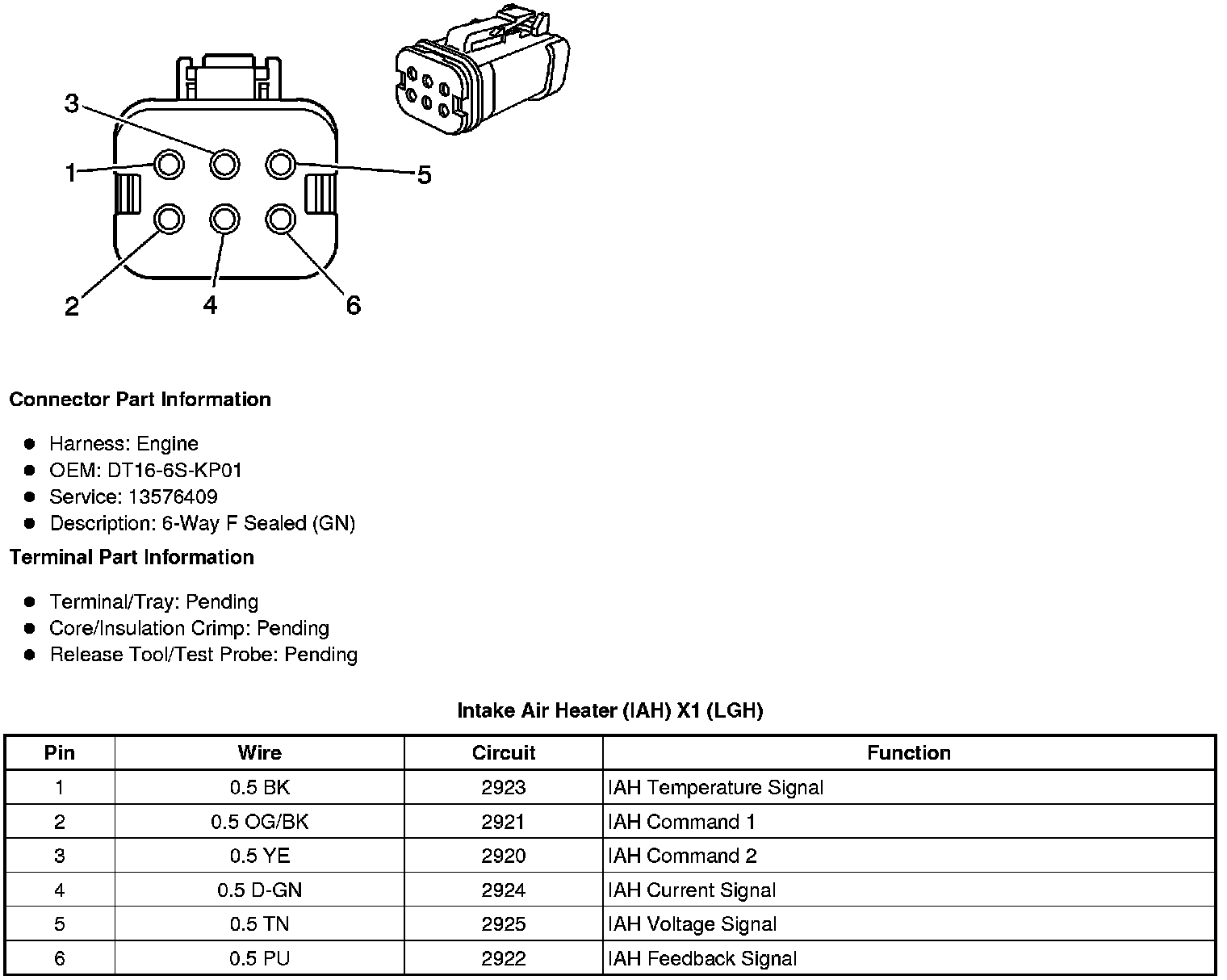

Intake Air Heater (IAH) X1 (LGH)





Intake Air Heater (IAH) X2 (LGH)
