Crankshaft Position Sensor: Locations

Powertrain Component Views

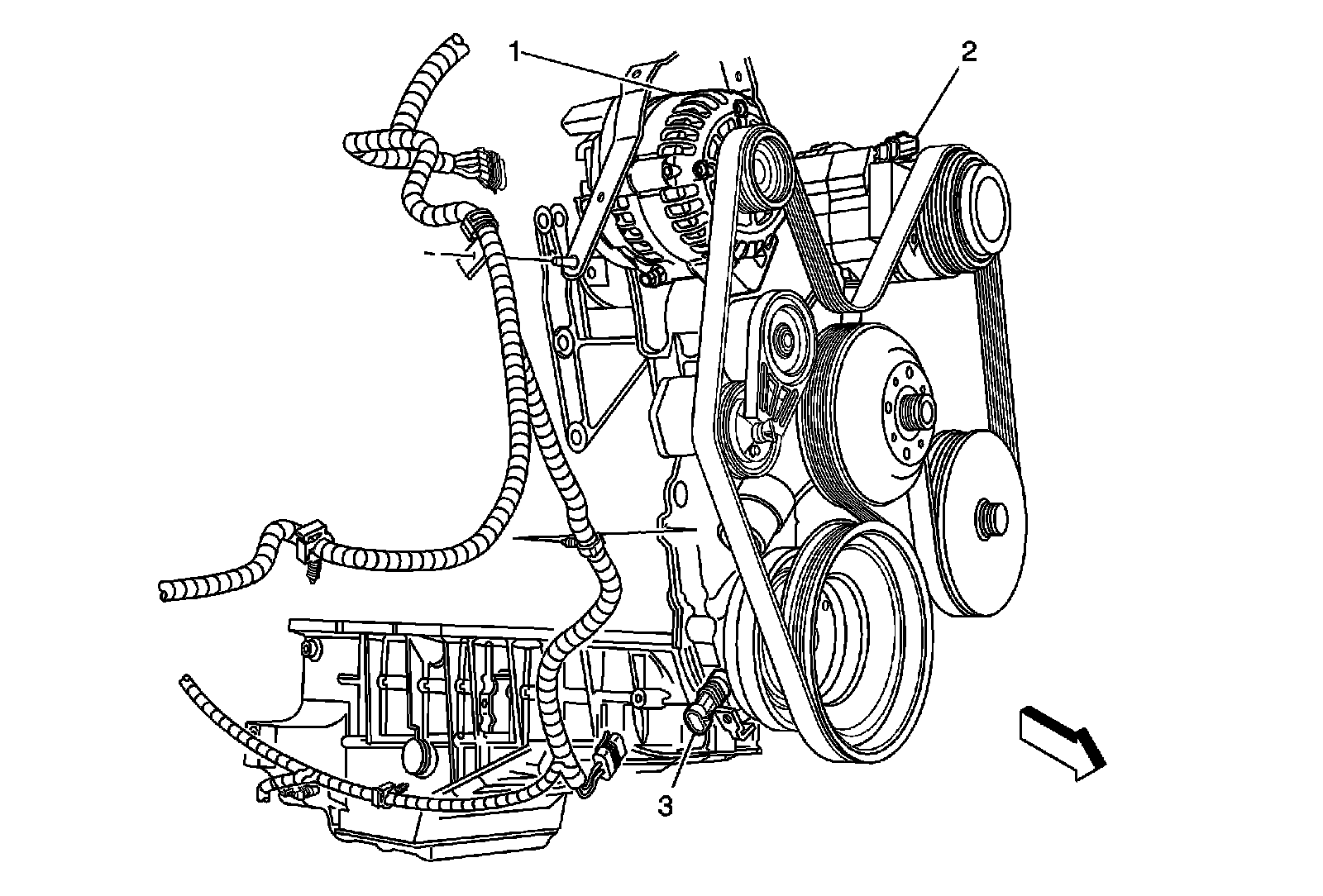

Front of the Engine (LU3)

1 - Generator
2 - A/C Compressor Clutch Connector (C60)
3 - Crankshaft Position (CKP) Sensor
