Air Bag Control Module: Locations

Instrument Panel/Center Console Component Views

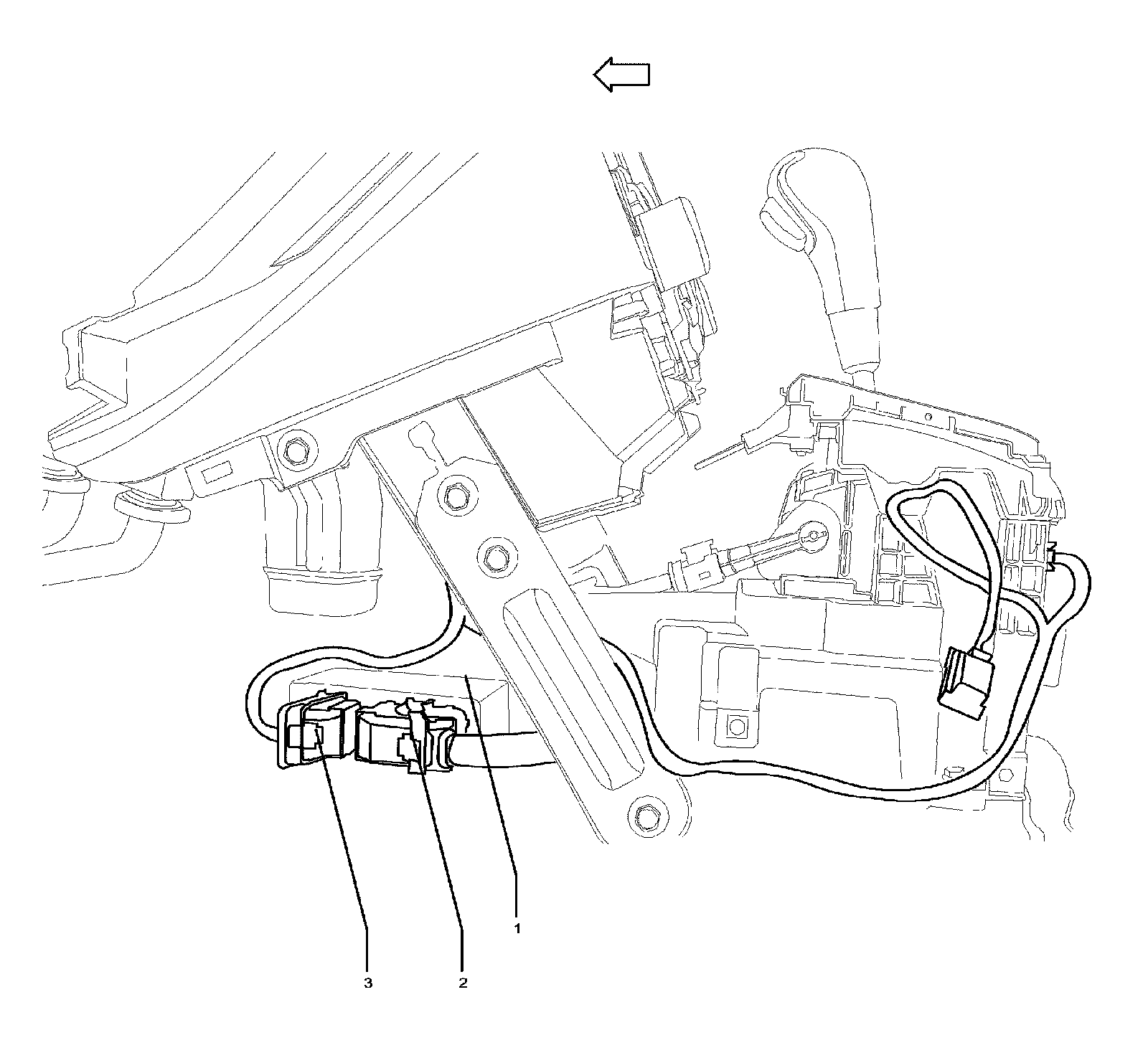

Behind the Center of the I/P Components 3 of 4




1 - K36 Inflatable Restraint Sensing and Diagnostic Module
2 - X2 Inflatable Restraint Sensing and Diagnostic Module X2
3 - X1 Inflatable Restraint Sensing and Diagnostic Module X1
