Refrigerant Pressure Sensor / Switch: Locations




Powertrain Component Views

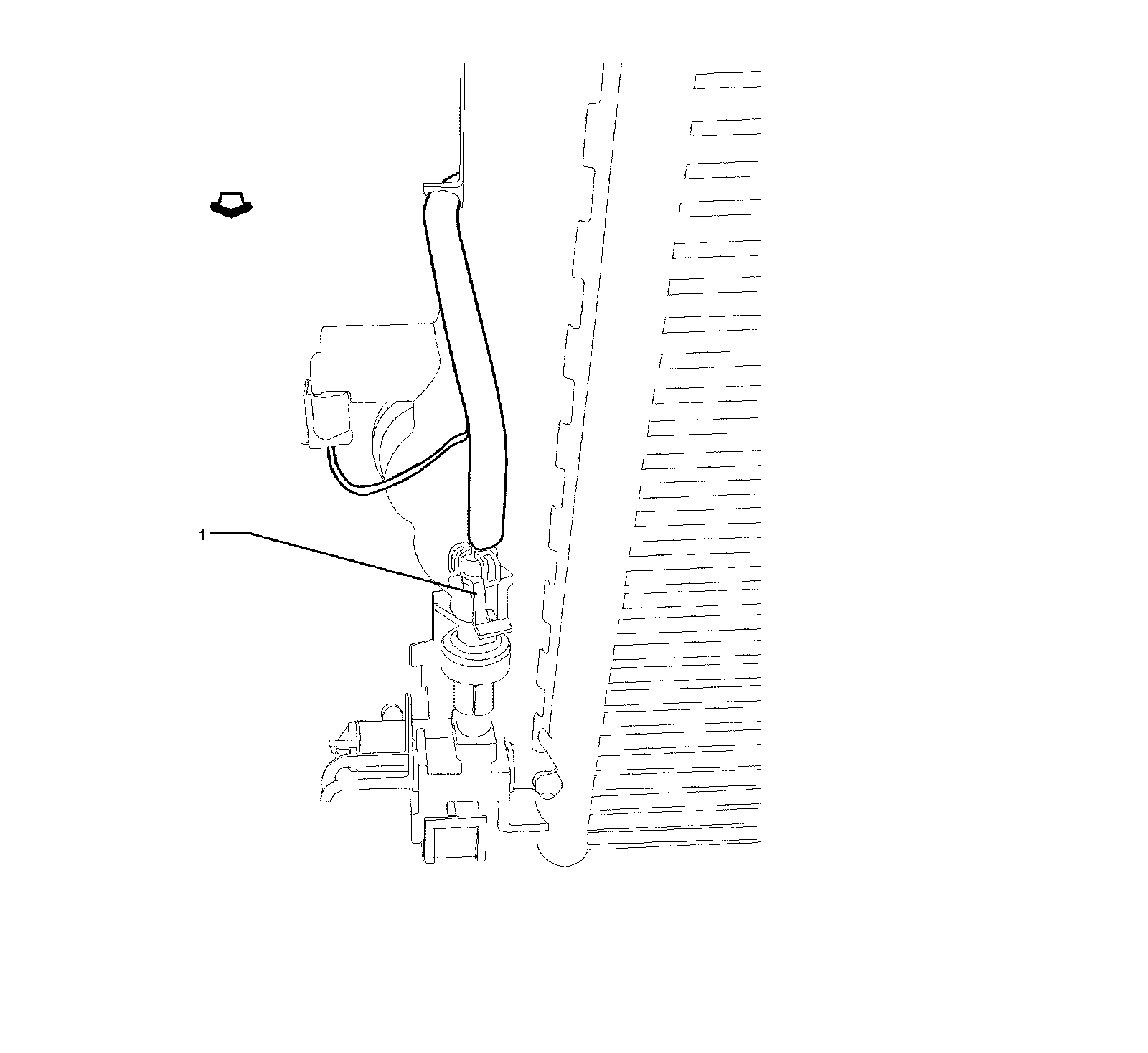

Lower Right Side of the Engine Components




1 - B1 A/C Refrigerant Pressure Sensor
