Wheel Speed Sensor




Component Connector End Views

B5LF Wheel Speed Sensor - Left Front

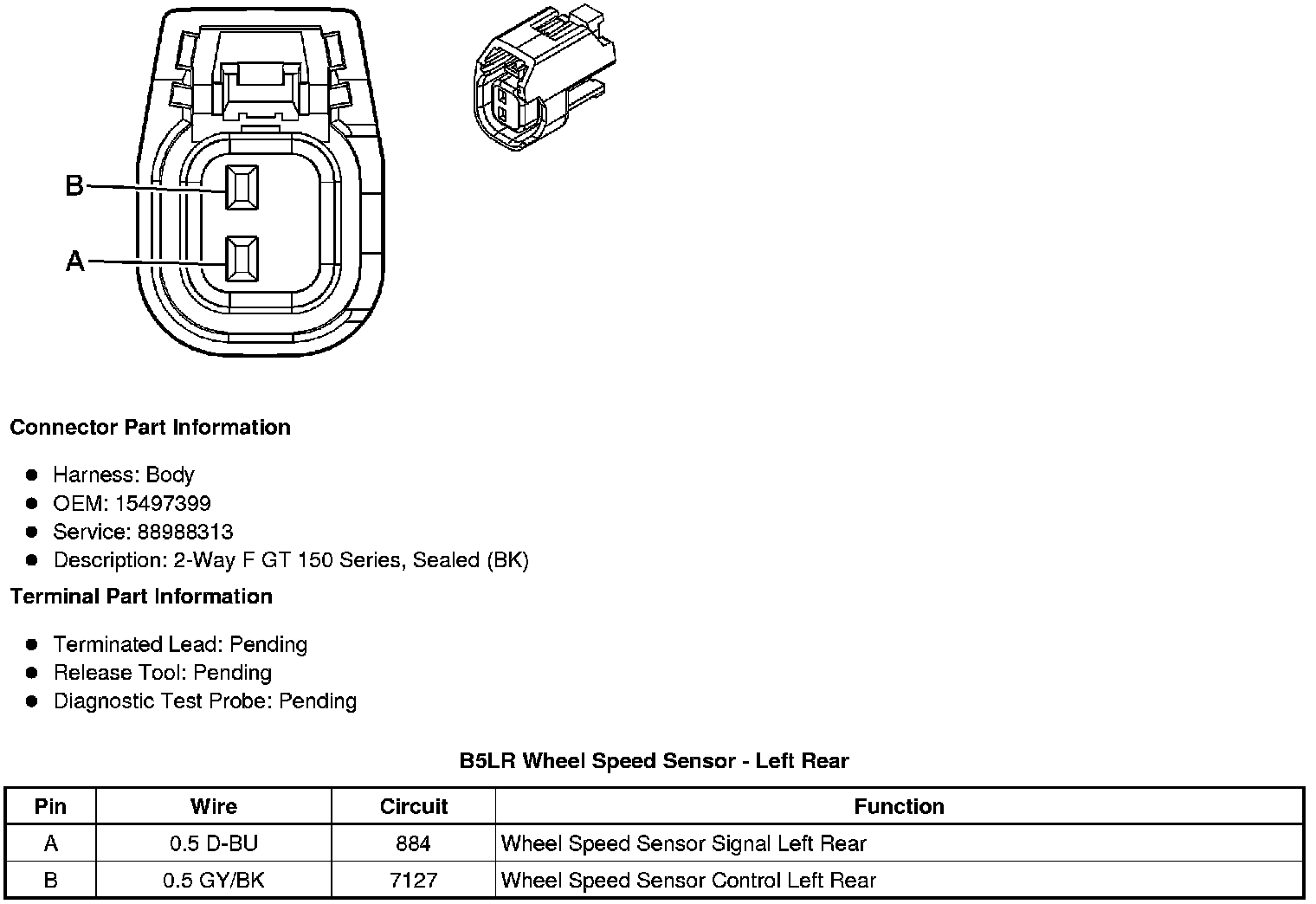

B5LR Wheel Speed Sensor - Left Rear

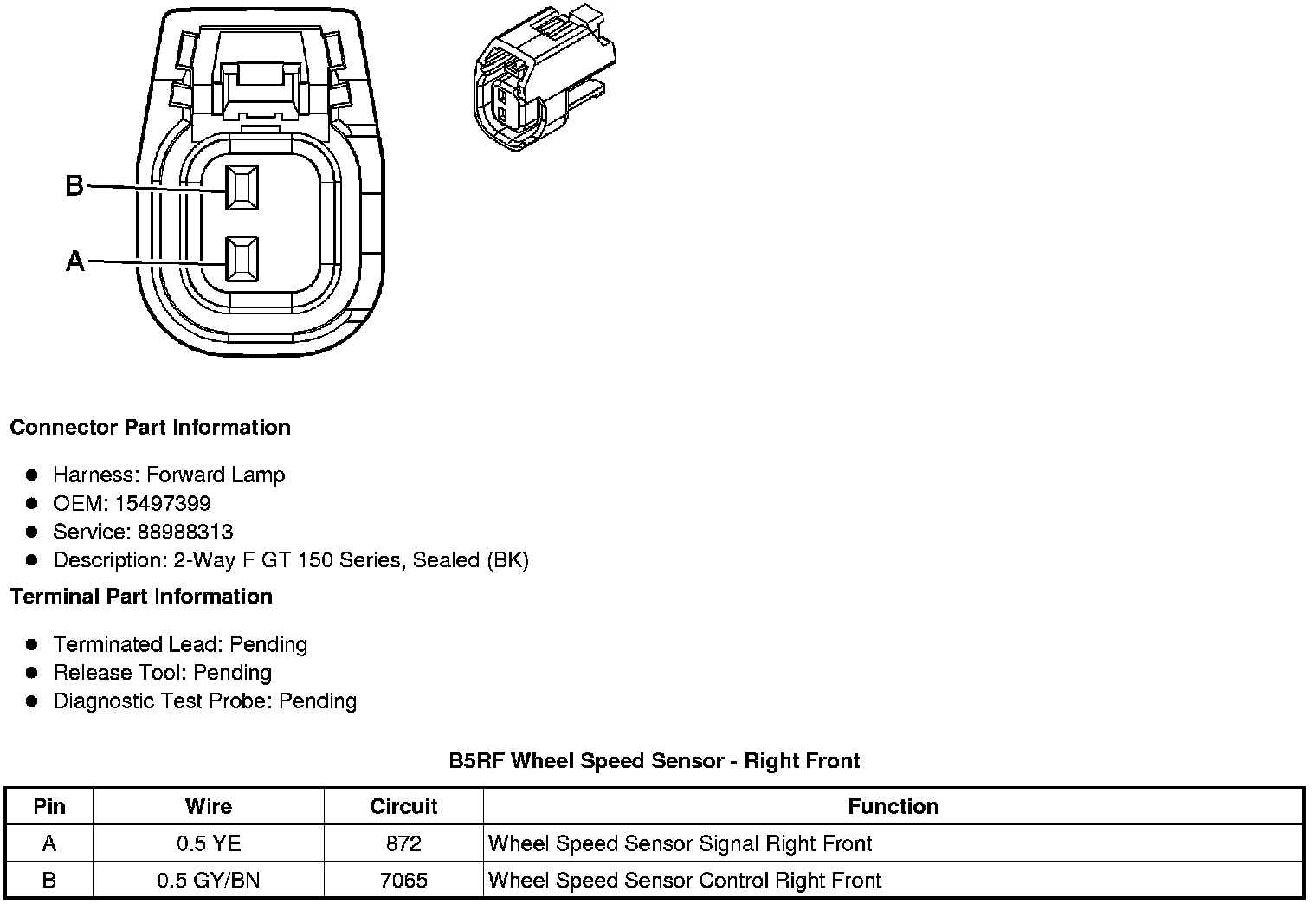

B5RF Wheel Speed Sensor - Right Front






B5RR Wheel Speed Sensor - Right Rear
