Turn Signal Lamp




Component Connector End Views

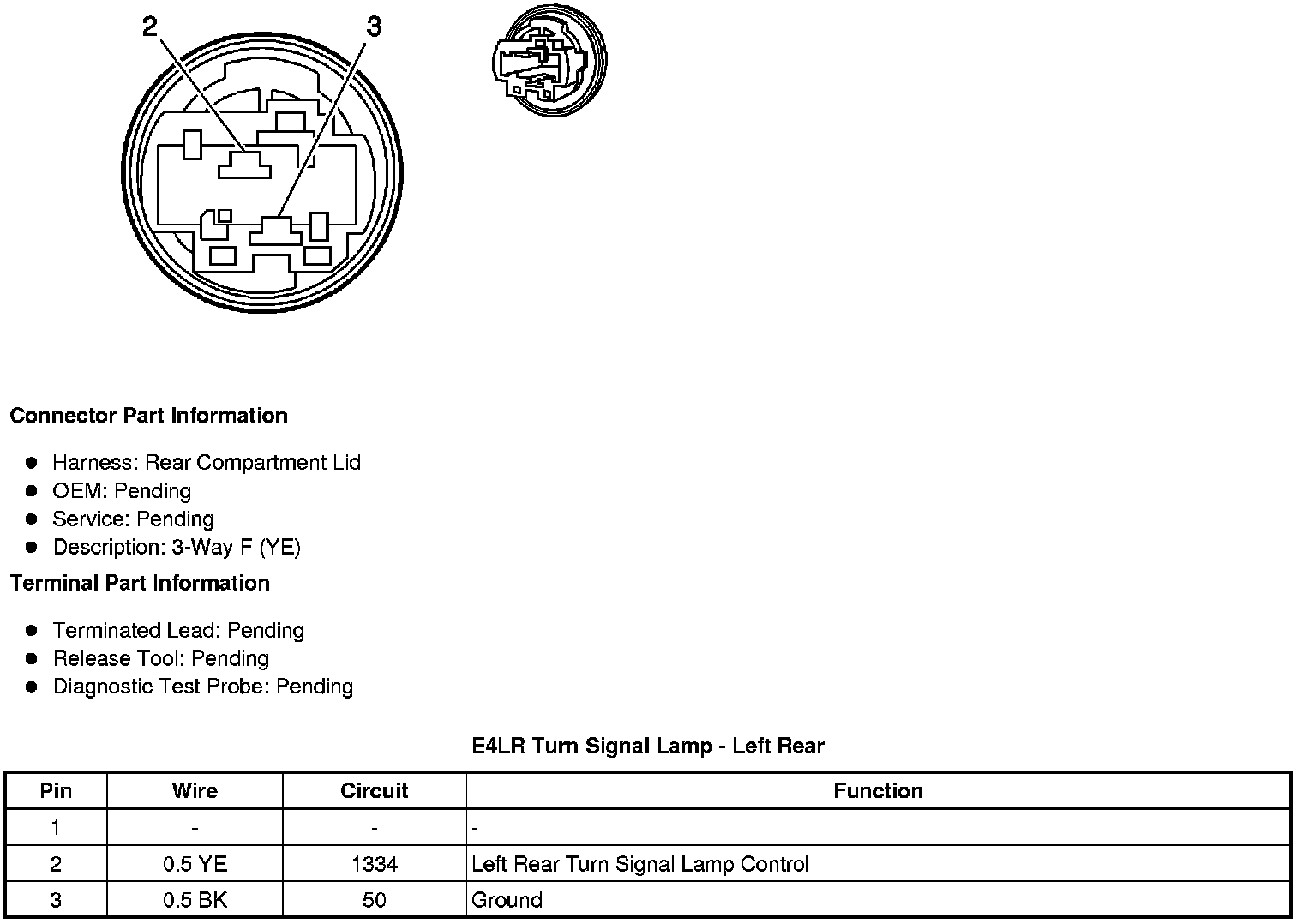

E4LR Turn Signal Lamp - Left Rear






E4N Park/Turn Signal Lamp - Left






E4P Park/Turn Signal Lamp - Right






E4RR Turn Signal Lamp - Right Rear
