Fuel Injector




Component Connector End Views

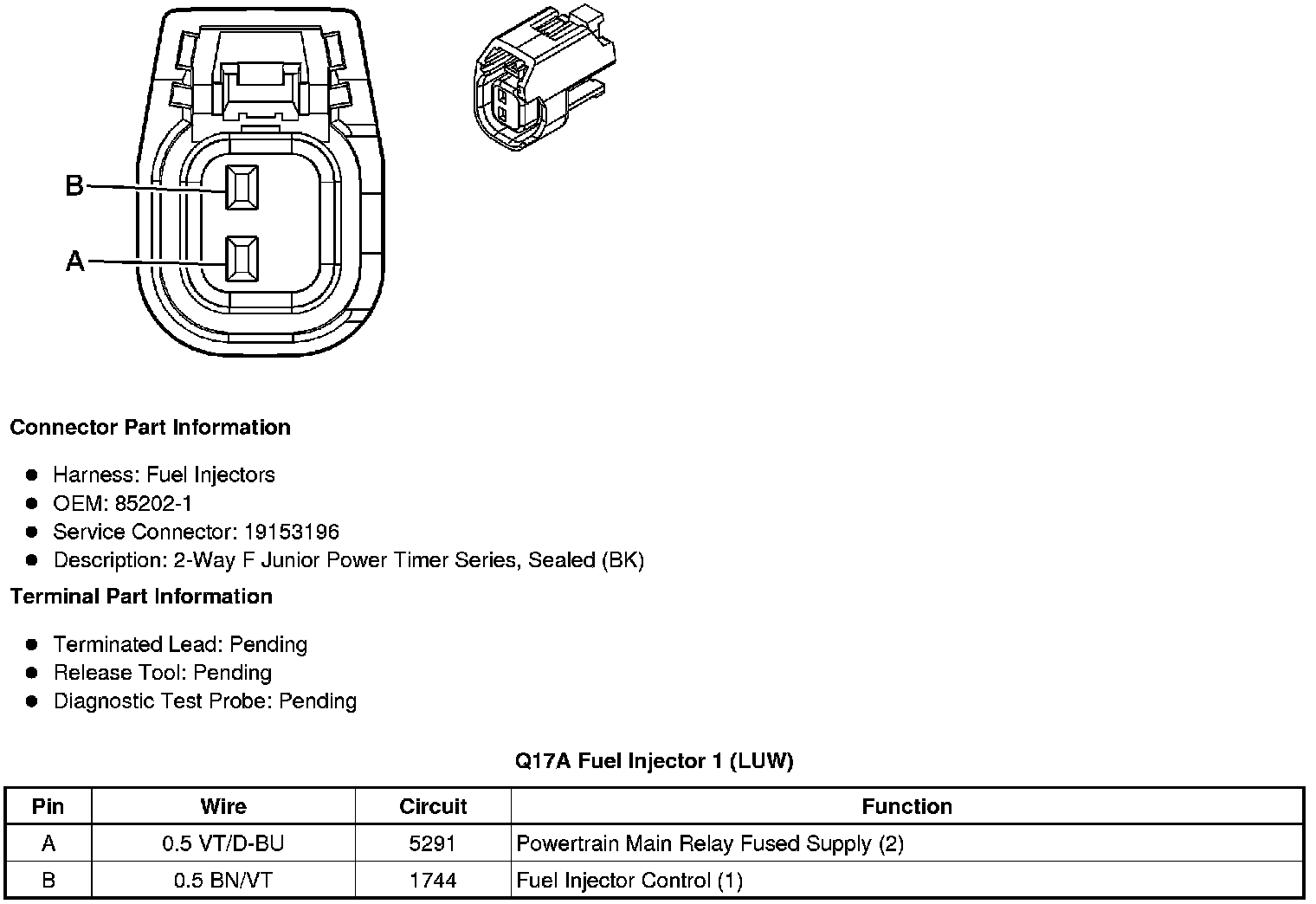

Q17A Fuel Injector 1 (LUW)






Q17B Fuel Injector 2 (LUW)

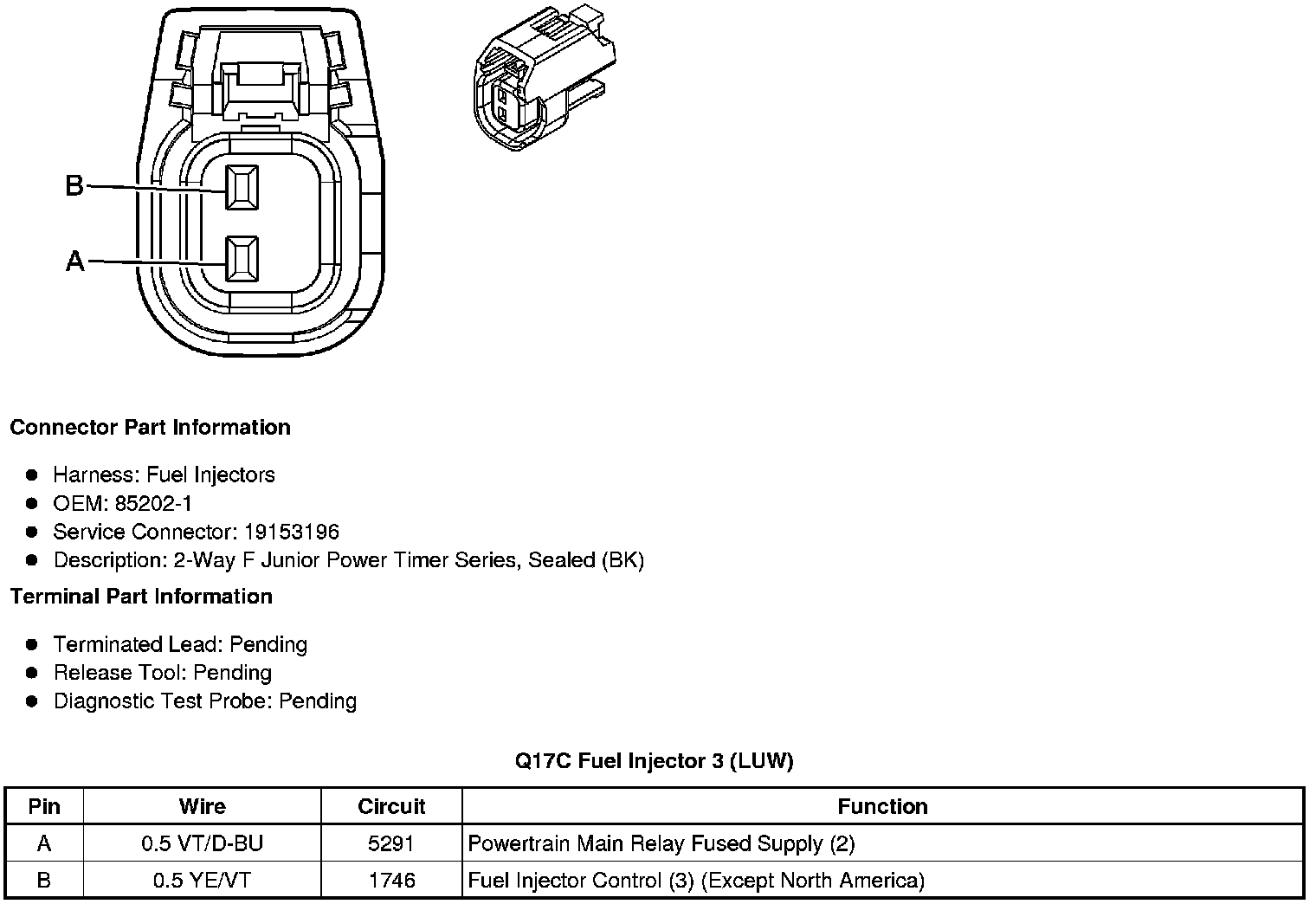

Q17C Fuel Injector 3 (LUW))

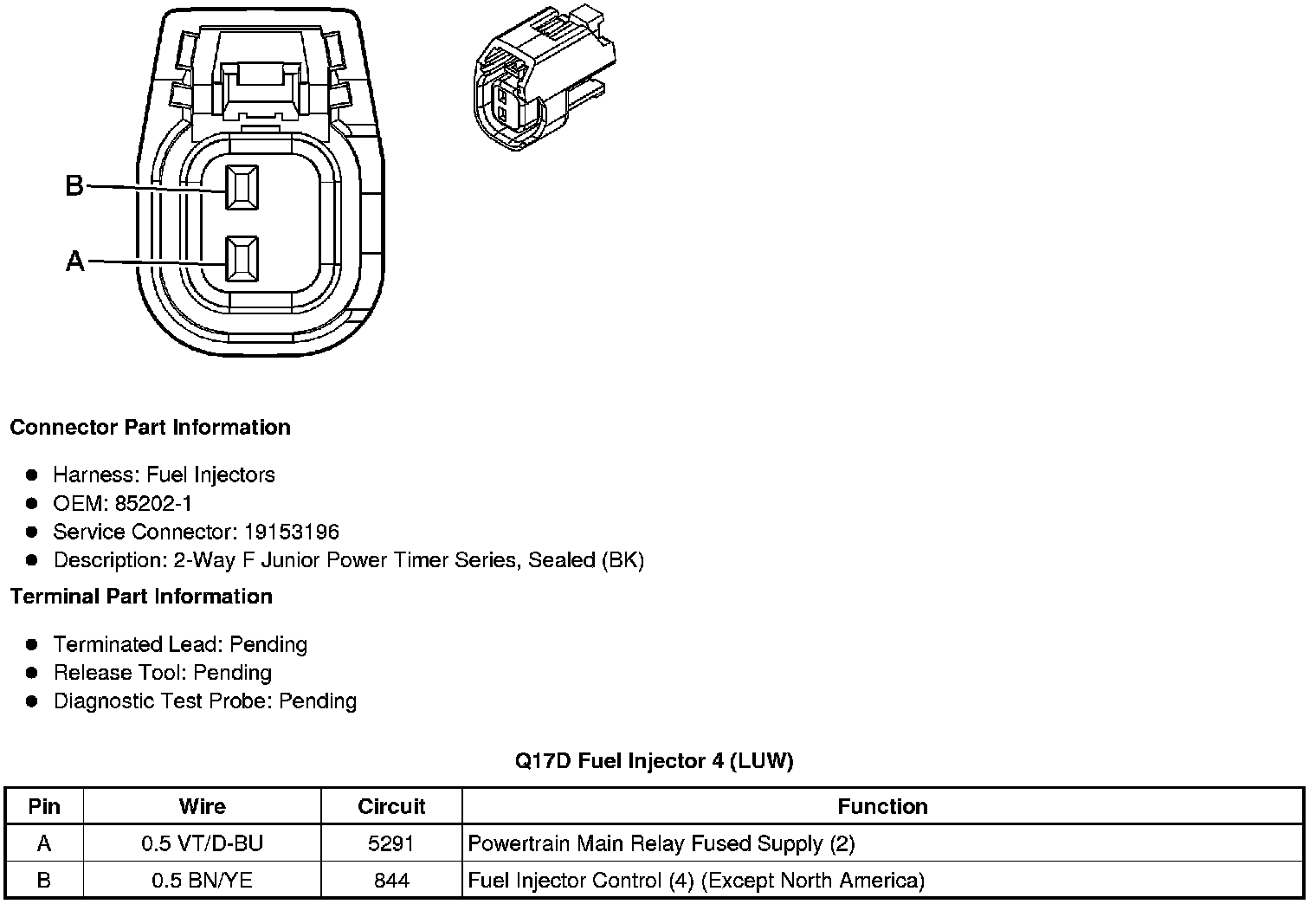

Q17D Fuel Injector 4 (LUW)
