Driver/Vehicle Information Display




Component Connector End Views

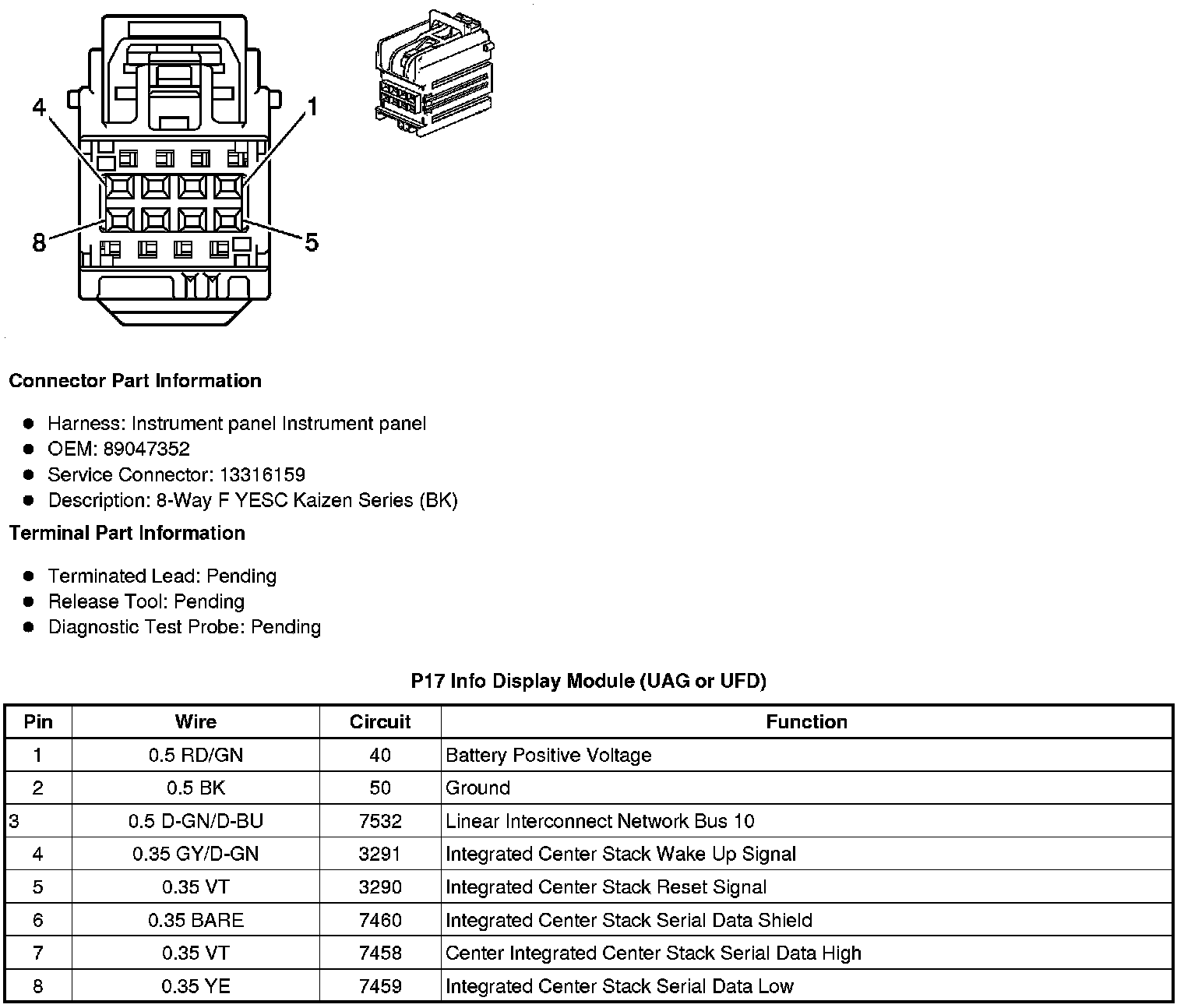

P17 Info Display Module (UAG or UFD)

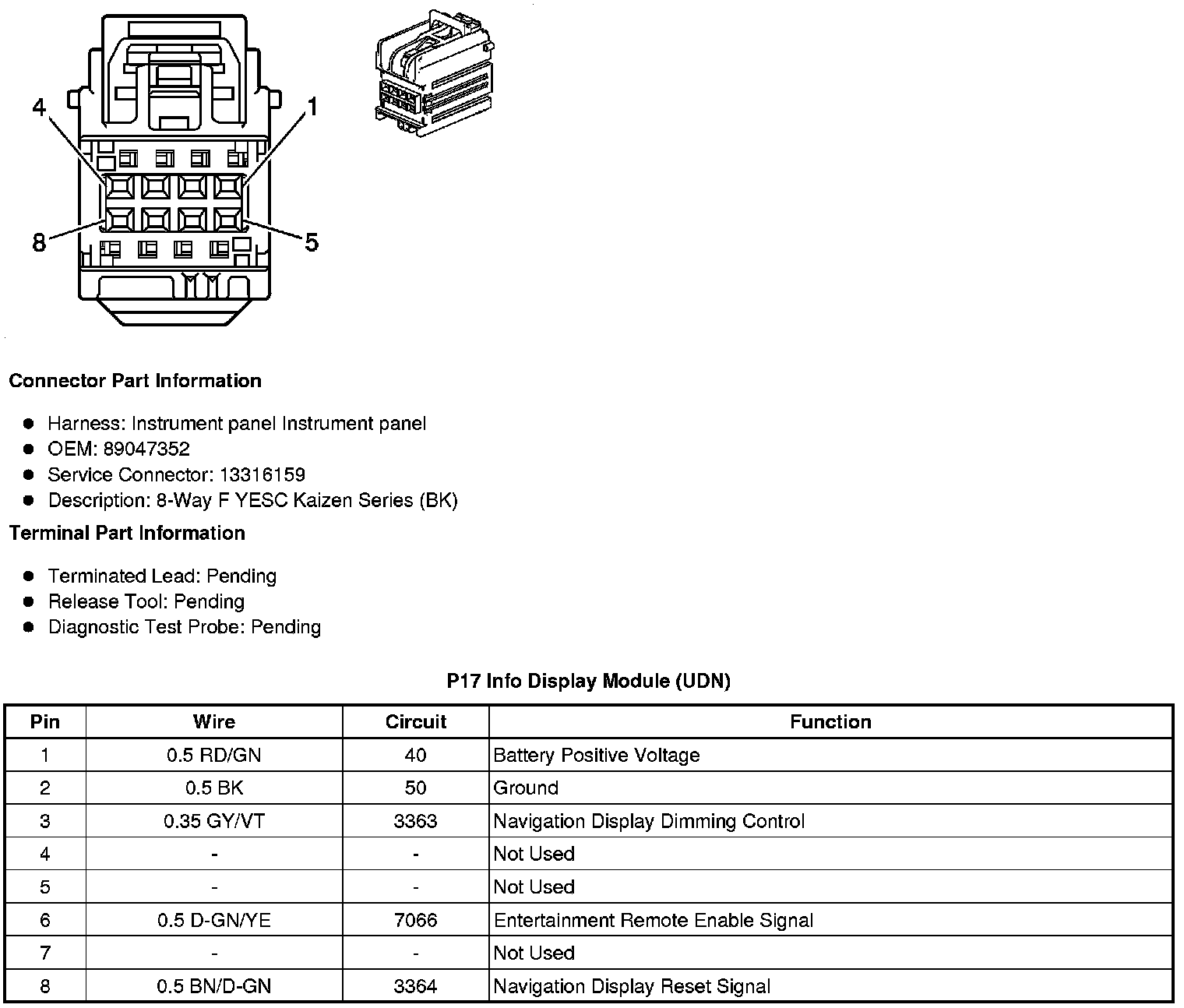

P17 Info Display Module (UDN)
